拨动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2023SS1A01SWITCH TOGGLE DPDT 6A 125V |
92 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
D22019LPSWITCH TOGGLE SPDT 0.4VA 48V |
0 | - |
|
数据表 |
D2 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|
|
M2011B2B1W03-AT401HSWITCH TOGGLE SPST 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2011B2B1W03-AT401SSWITCH TOGGLE SPST 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2044SS1W01-BESWITCH TOGGLE DP3T 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2044SS1W01-BCSWITCH TOGGLE DP3T 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2024BB1W02SWITCH TOGGLE SP3T 6A 125V |
0 | - |
|
数据表 |
M | Tray | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 12.50mm Dia | M12 x 1 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2023BB1W01-AT402SSWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2023BB1G01SWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022SS1G01-BCSWITCH TOGGLE DPDT 0.4VA 28V |
20 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Red Cap | -30°C ~ 85°C |
|
|
M2022SS1G01-BFSWITCH TOGGLE DPDT 0.4VA 28V |
20 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Green Cap | -30°C ~ 85°C |
|
|
P2012BZSWITCH TOGGLE SPDT 10A 125V |
24 | - |
|
数据表 |
P | Bulk | Obsolete | Panel Mount | SPDT | On-On | 10A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.187" (4.7mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 85°C |
|

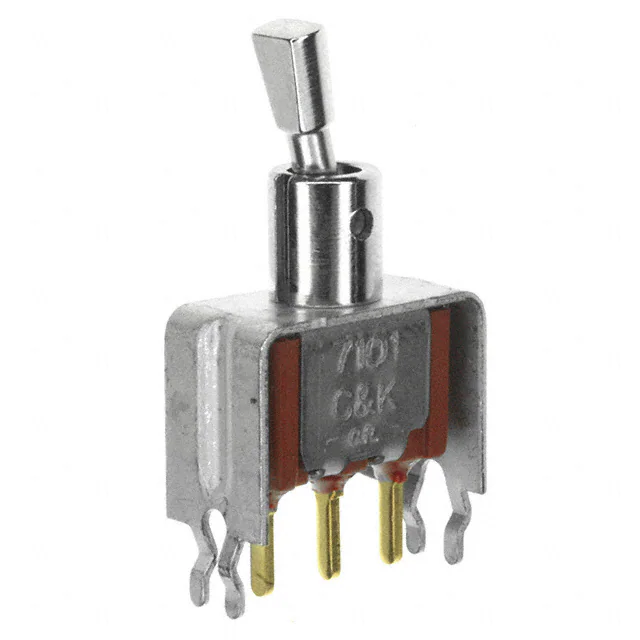

7101P4D9V31BESWITCH TOGGLE SPDT 0.4VA 20V |
6 | - |
|
数据表 |
7000 | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7203SY9CGESWITCH TOGGLE DPDT 5A 120V |
3 | - |
|
数据表 |
7000 | Bulk | Active | Through Hole | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2044SS1W03SWITCH TOGGLE DP3T 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
7203MHZQESWITCH TOGGLE DPDT 5A 120V |
42 | - |
|
数据表 |
7000 | Tray | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
S302F-AT402HSWITCH TOGGLE SPDT 15A 125V |
0 | - |
|
数据表 |
S | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S302F-AT402ASWITCH TOGGLE SPDT 15A 125V |
0 | - |
|
数据表 |
S | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S302F-AT402CSWITCH TOGGLE SPDT 15A 125V |
0 | - |
|
数据表 |
S | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
7301L1YZQESWITCH TOGGLE 3PDT 5A 120V |
12 | - |
|
数据表 |
7000 | Tray | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 16.26mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
