拨动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100SP5T2B4M6RESWITCH TOGGLE SPDT 0.4VA 20V |
14 | - |
|
数据表 |
100 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP1T6B11M1REHSWITCH TOGGLE DPDT 0.4VA 20V |
0 | - |
|
数据表 |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP1T2B4VS2RESWITCH TOGGLE DPDT 0.4VA 20V |
0 | - |
|
数据表 |
100 | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-DP1-T1-B3-M2QESWITCH TOGGLE DPDT 5A 125V |
25 | - |
|
数据表 |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

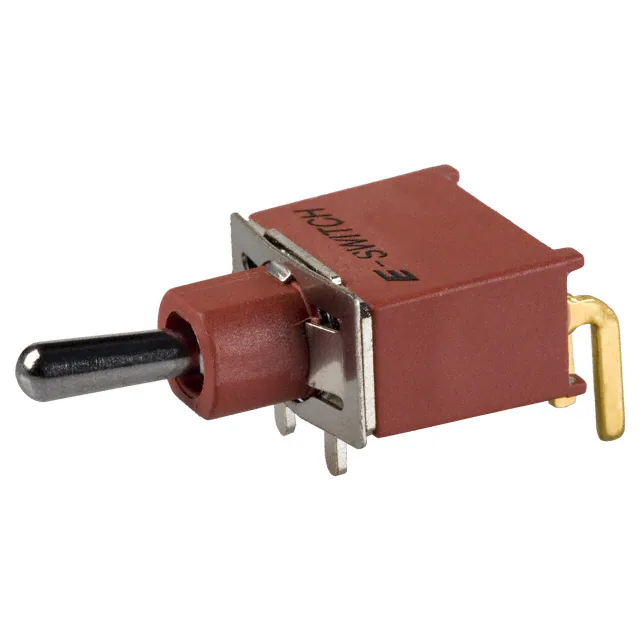

100AWSP1T2B4M6RESWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
100A | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7205BSWITCH TOGGLE SPST 20A 125V |
7 | - |
|
数据表 |
7200 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 14.27mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | -10°C ~ 65°C |
|
CF-TA-1DB4-A12SWITCH TOGGLE SPDT 50MA 48V |
20 | - |
|
数据表 |
CF-TA | Bulk | Active | Surface Mount, Right Angle | SPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | - | -40°C ~ 85°C |
|
B13JHSWITCH TOGGLE SPDT 0.4VA 28V |
10 | - |
|
数据表 |
B | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
8G1022-ZSWITCH TOGGLE SPDT 6A 125V |
20 | - |
|
数据表 |
8G | Bulk | Active | Through Hole | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -30°C ~ 85°C |
|
8F1011-ZSWITCH TOGGLE SPDT 6A 125V |
25 | - |
|
数据表 |
8F | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | Splash Proof | - | -30°C ~ 85°C |
|
A13AV1SWITCH TOGGLE SPDT 0.4VA 28V |
9 | - |
|
数据表 |
A | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
8G1024-ZSWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
8G | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -25°C ~ 80°C |
|
7152CSWITCH TOGGLE SPDT 6A 125V |
24 | - |
|
数据表 |
7100 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 6A (AC) | 125 V | - | Standard Round | 14.27mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | - | 15/32-32 | - | - | -10°C ~ 65°C |
|
34ASP11B1M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
34A | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
7101BSWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
7100 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC) | 125 V | - | Standard Round | 14.27mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | -10°C ~ 65°C |
|
B18KHSWITCH TOGGLE SPDT 0.4VA 28V |
1 | - |
|
数据表 |
B | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Lever for Cap | 5.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

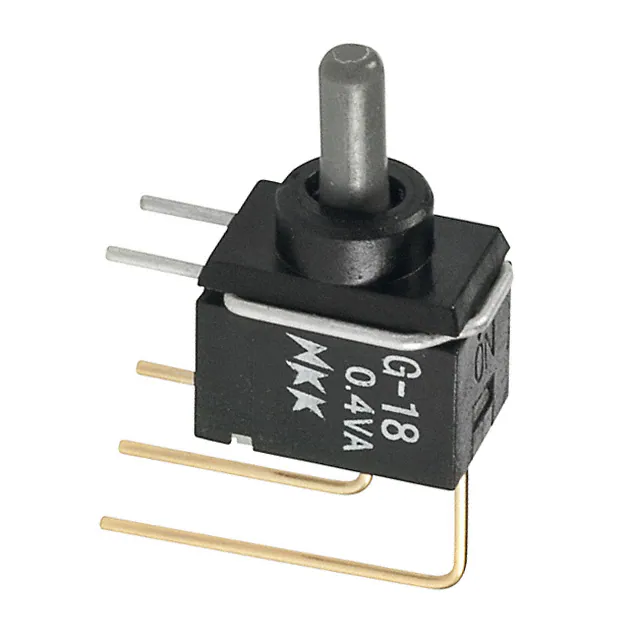

G18AVSWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
G | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

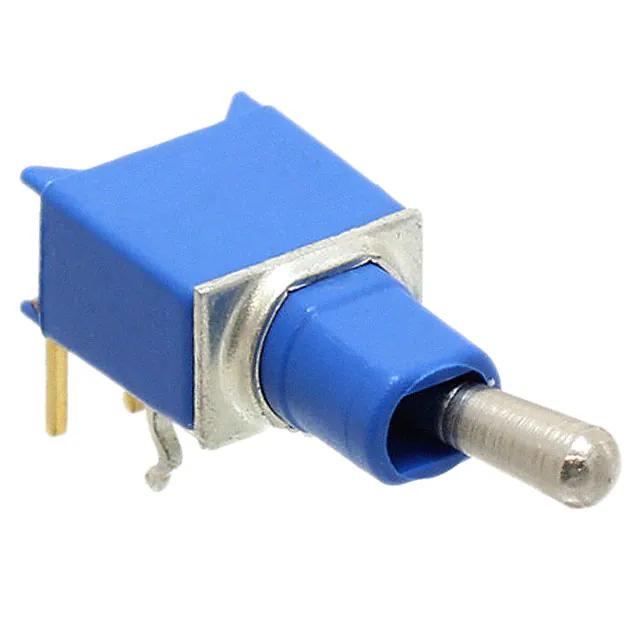

TL36W000050SWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
TL | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T101S1TZQESWITCH TOGGLE SPDT 3A 120V |
16 | - |
|
数据表 |
T | Bulk | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-DP3-T1-B1-M2QESWITCH TOGGLE DPDT 5A 125V |
23 | - |
|
数据表 |
2M | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
