拨动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100DP2T1B1M51QESWITCH TOGGLE DPDT 5A 120V |
0 | - |
|
数据表 |
100 | Bulk | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T5B6M1QESWITCH TOGGLE DPDT 5A 120V |
0 | - |
|
数据表 |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 21.34mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP1T1B3M2REHSWITCH TOGGLE DPDT 0.4VA 20V |
0 | - |
|
数据表 |
200 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP1T2B3M1REHSWITCH TOGGLE DPDT 0.4VA 20V |
0 | - |
|
数据表 |
200 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SA1W40SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2011S2D3W03SWITCH TOGGLE SPST 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012S3S1W40SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP5T3B5M1REHSWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
100 | Tray | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.97mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP2T1B1M1RESWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
100 | Bulk | Active | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

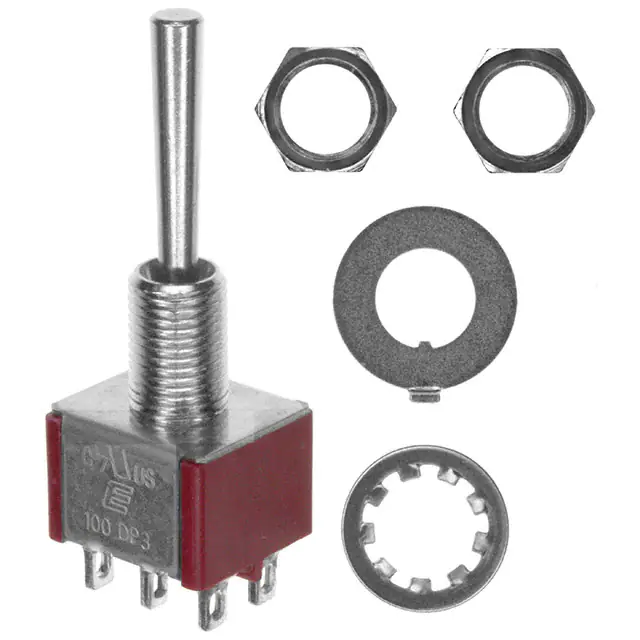

100DP3T4B1M1QEHSWITCH TOGGLE DPDT 5A 120V |
0 | - |
|
数据表 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 16.26mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP3T5B1M1QEHSWITCH TOGGLE DPDT 5A 120V |
0 | - |
|
数据表 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 21.34mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP3T5B3M1QEHSWITCH TOGGLE DPDT 5A 120V |
0 | - |
|
数据表 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 21.34mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP3T1B1M3QEHSWITCH TOGGLE DPDT 5A 120V |
0 | - |
|
数据表 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
C1700ROAAASWITCH TOGGLE SPST 20A 250V |
0 | - |
|
数据表 |
1700 | - | Active | Panel Mount | SPST | On-Off | 20A (AC) | 250 V | - | Standard Round | 13.80mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
|
100AWSP1T2B1M1QESWITCH TOGGLE SPDT 5A 120V |
0 | - |
|
数据表 |
100A | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP5T1B1M2RESWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表 |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST14CD00SWITCH TOGGLE SPDT 20A 125V |
0 | - |
|
数据表 |
ST1 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 19.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
|
AE101MD1CQSWITCH TOGGLE SPDT 5A 120V |
0 | - |
|
数据表 |
Gemini AE | Bulk | Obsolete | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -20°C ~ 85°C |
|
|
SW-T2-4B-A-T1-G-03SWITCH TOGGLE DPDT 5A 125V |
0 | - |
|
数据表 |
SW | Box | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.59mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
SW-T2-4B-A-T2-G-03SWITCH TOGGLE DPDT 5A 125V |
0 | - |
|
数据表 |
SW | Box | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 5.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | - | -30°C ~ 85°C |
