拨动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7103P3D9ABESWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表
|
7000 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A22KB-AASWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表
|
A | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Actuator | -30°C ~ 85°C |
|
|
A22KB-BBSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表
|
A | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | White Actuator | -30°C ~ 85°C |
|
|
D22015VSWITCH TOGGLE SPDT 0.4VA 48V |
0 | - |
|
数据表
|
D2 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|
|
G25AHSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表
|
G | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
|
G3T25APSWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表
|
G3T | Bulk | Active | Surface Mount | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
U13SD9V3GESWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表
|
7000 | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
SY236A13SWITCH TOGGLE SPDT 5A 125V |
0 | - |
|
数据表
|
S | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
5242CDBSWITCH TOGGLE DPDT 0.4VA 20V |
0 | - |
|
数据表
|
5000 | Bulk | Active | Panel Mount | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5239AB9SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表
|
5000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5247CDBSWITCH TOGGLE DPDT 0.4VA 20V |
0 | - |
|
数据表
|
5000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5248CDBSWITCH TOGGLE DPDT 0.4VA 20V |
0 | - |
|
数据表
|
5000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
7101K12ZBE3TOGGLE SWITCHES |
0 | - |
|
数据表
|
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
2GA91-57SWITCH TOGGLE SPST 15A 125V |
0 | - |
|
数据表
|
G | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 10.31mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
GTB2B13CSWITCH TOGGLE SPDT 12A 125V |
0 | - |
|
数据表
|
GTB | Bulk | Active | Panel Mount | SPDT | On-On | 12A (AC) | 240 V | - | Standard Round | 16.20mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | IP68 - Dust Tight, Waterproof | - | - |
|

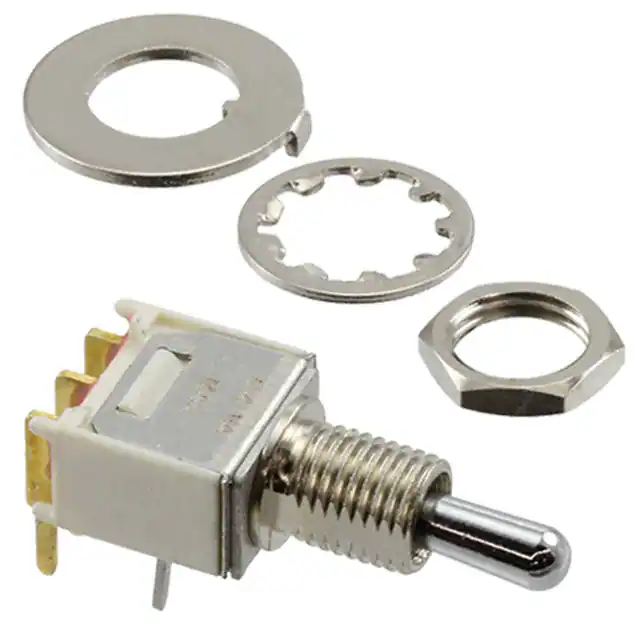

T103MHABESWITCH TOGGLE SPDT 0.4VA 20V |
3 | - |
|
数据表
|
T | Tray | Active | Panel Mount, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.44mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7203L3DZ3QE32SWITCH TOGGLE DPDT 5A 120V |
0 | - |
|
数据表
|
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | - | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Red Actuator | -30°C ~ 85°C |
|
|
SY236CD7SWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表
|
S | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
S236CDB7SWITCH TOGGLE SPDT 0.4VA 20V |
0 | - |
|
数据表
|
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.60mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5239YAB16X386SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表
|
5000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 5.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
