拨动开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2012SS2G30SWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SS2G13-BESWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M | Tray | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Yellow Cap | -30°C ~ 85°C |
|

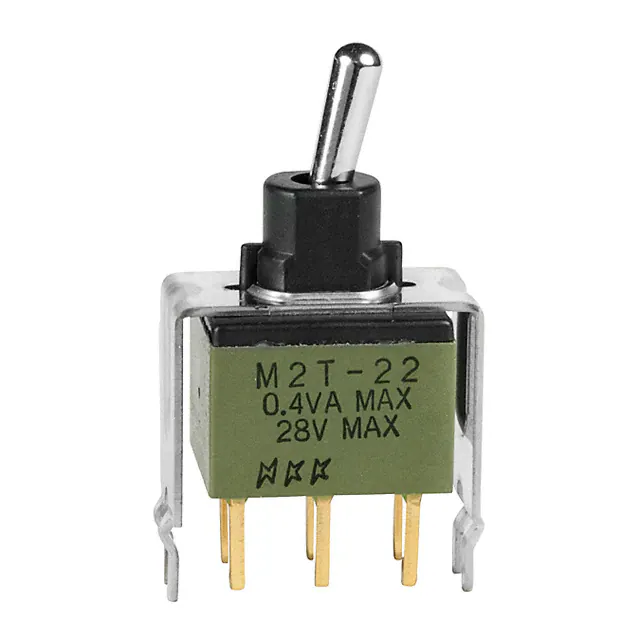

M2T22S4A5G13SWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
M2 | Tray | Obsolete | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2022S2A2W40SWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2013QS2G03SWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M | Tray | Obsolete | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.00mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2T22SA5A03SWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
M2 | Tray | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

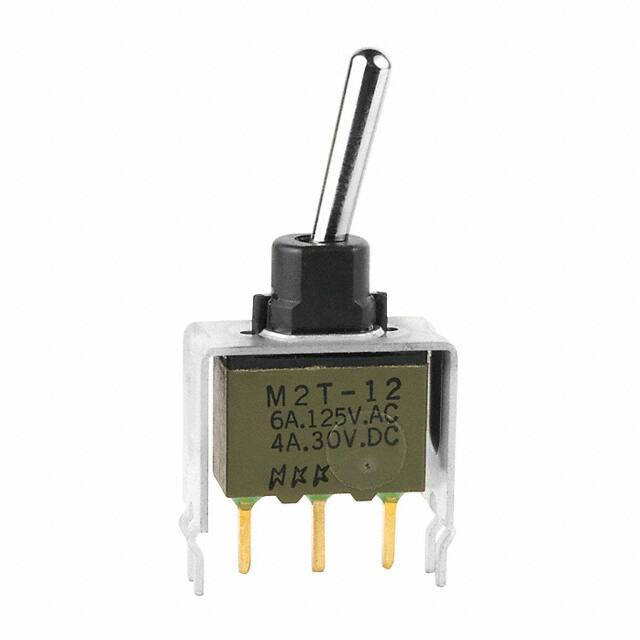

M2T12SA5A13SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M2 | Tray | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2013SS2G30SWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012S2A2G15SWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M | Tray | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2T12S4A5W30SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M2 | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2012SS2W13-BCSWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M | Tray | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Red Cap | -30°C ~ 85°C |
|
|
M2T29S4A5G30SWITCH TOGGLE DPDT 0.4VA 28V |
0 | - |
|
数据表 |
M2 | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T12SA5G13SWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M2 | Tray | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2024SS2G13SWITCH TOGGLE SP3T 0.4VA 28V |
0 | - |
|
数据表 |
M | Tray | Obsolete | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2T12S4A5W40SWITCH TOGGLE SPDT 6A 125V |
0 | - |
|
数据表 |
M2 | Tray | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T12S4A5G13SWITCH TOGGLE SPDT 0.4VA 28V |
0 | - |
|
数据表 |
M2 | Tray | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

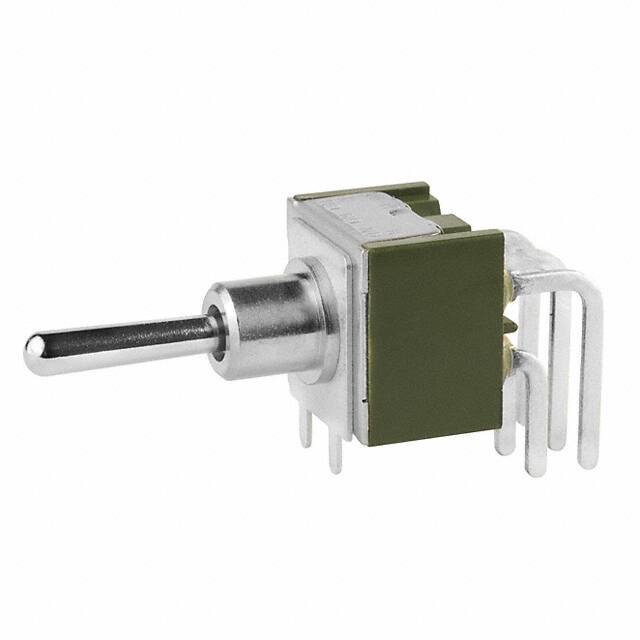

M2026SA2W30SWITCH TOGGLE SP3T 6A 125V |
0 | - |
|
数据表 |
M | Tray | Obsolete | Through Hole, Right Angle | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2022SS2W23/UCSWITCH TOGGLE DPDT 6A 125V |
0 | - |
|
数据表 |
M | Tray | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1825142-0SWITCH TOGGLE SPDT 5A 120V |
0 | - |
|
数据表 |
Gemini AE | Bulk | Obsolete | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Process Sealed | -30°C ~ 85°C |
|
|
2-1825138-9SWITCH TOGGLE DPDT 5A 120V |
0 | - |
|
数据表 |
Gemini A | Bulk | Obsolete | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
