绕线
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 线规 | 导体直径 | 长度 | 护套（绝缘）材料 | 护套（绝缘）直径 | 导体材料 | 导体镀层 | 护套颜色 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KSW30G-0100WIRE 30AWG GREEN 100 FT CSW |
0 | - |
|
数据表 |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Green | UL Style 1423 | - |
|
TSW30G-0100WIRE WRAPPING WIRE, GREE |
0 | - |
|
数据表 |
TSW | Box | Obsolete | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Ethylene Tetrafluoroethylene (ETFE) | 0.022" (0.55mm) | Copper, Bare | Silver | - | - | - |
|
WD-30-YWIRE WW 30AWG PVDF YELLOW |
0 | - |
|
数据表 |
WD-30 | Roll | Obsolete | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Yellow | UL Style 1423, VW-1 | With Dispenser |
|
WD-30-WWIRE WW 30AWG PVDF WHITE 50' |
0 | - |
|
数据表 |
WD-30 | Roll | Obsolete | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423, VW-1 | With Dispenser |
|

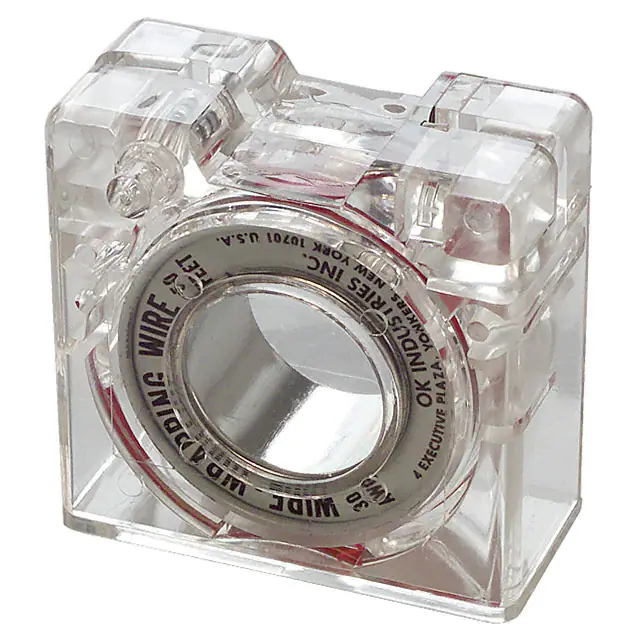

WD-30-RWIRE WW 30AWG PVDF RED |
0 | - |
|
数据表 |
WD-30 | Roll | Obsolete | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Red | UL Style 1423, VW-1 | With Dispenser |
|
WD-30-TRIWIRE WW 30AWG PVDF MULTIPLE 50' |
0 | - |
|
数据表 |
WD-30 | Roll | Obsolete | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Multiple | UL Style 1423, VW-1 | With Dispenser |
|
W28-6DWIRE WW 28AWG ETFE RED 50' 2/PK |
0 | - |
|
数据表 |
Slit-N-Wrap® | Spool | Active | 28 AWG | 0.013" (0.32mm) | 50' (15.24m) | Ethylene Tetrafluoroethylene (ETFE) | 0.023" (0.58mm) | Copper, Bare | Silver | Blue | - | - |
|
W28-6EWIRE WW 28AWG ETFE WH 50' 2/PK |
0 | - |
|
数据表 |
Slit-N-Wrap® | Spool | Active | 28 AWG | 0.013" (0.32mm) | 50' (15.24m) | Ethylene Tetrafluoroethylene (ETFE) | 0.023" (0.58mm) | Copper, Bare | Silver | White | UL Style 1516/1523 | - |
|
30-R-50-050WIRE WW 30AWG PVDF RED 7" 50PC |
0 | - |
|
数据表 |
- | 50 per Pkg | Obsolete | 30 AWG | 0.010" (0.25mm) | 0.583' (177.70mm, 7.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Red | UL Style 1423, VW-1 | - |
|
WD-30-BWIRE WW 30AWG PVDF BLUE 50' |
0 | - |
|
数据表 |
WD-30 | Roll | Obsolete | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Blue | UL Style 1423, VW-1 | With Dispenser |
|
KSW26W-0100WIRE 26AWG WHITE 100 FT CSW |
0 | - |
|
数据表 |
KSW | Roll | Obsolete | 26 AWG | 0.016" (0.40mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.027" (0.69mm) | Copper, Bare | Silver | White | UL Style 1422 | - |
|
KSW26Y-0100WIRE 26AWG YELLOW 100 FT CSW |
0 | - |
|
数据表 |
KSW | Roll | Obsolete | 26 AWG | 0.016" (0.40mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.027" (0.69mm) | Copper, Bare | Silver | Yellow | UL Style 1422 | - |
|

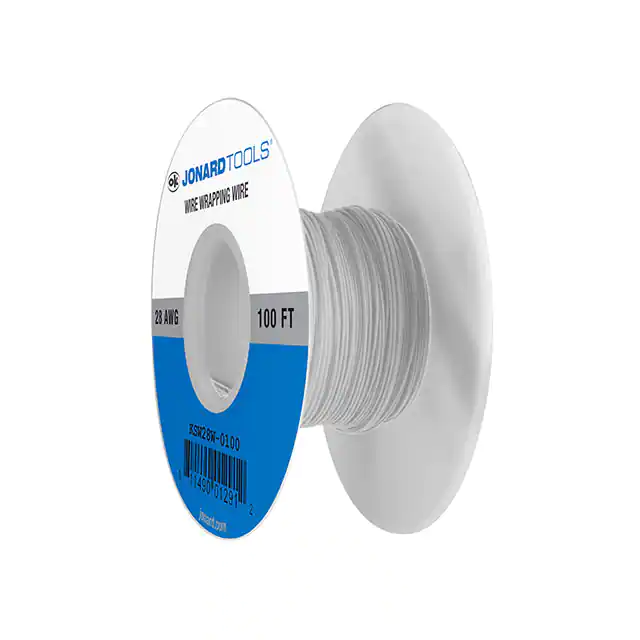

KSW28W-0100WIRE 28AWG WHITE 100 FT CSW |
0 | - |
|
数据表 |
KSW | Roll | Obsolete | 28 AWG | 0.013" (0.32mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.024" (0.61mm) | Copper, Bare | Silver | White | UL Style 1423 | - |
|
KSW28Y-0100WIRE 28AWG YELLOW 100 FT CSW |
0 | - |
|
数据表 |
KSW | Roll | Obsolete | 28 AWG | 0.013" (0.32mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.024" (0.61mm) | Copper, Bare | Silver | Yellow | UL Style 1423 | - |
|
KSW24W-0100WIRE 24AWG WHITE 100 FT CSW |
0 | - |
|
数据表 |
KSW | Roll | Obsolete | 24 AWG | 0.019" (0.50mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | Silver | White | UL Style 1422 | - |
|

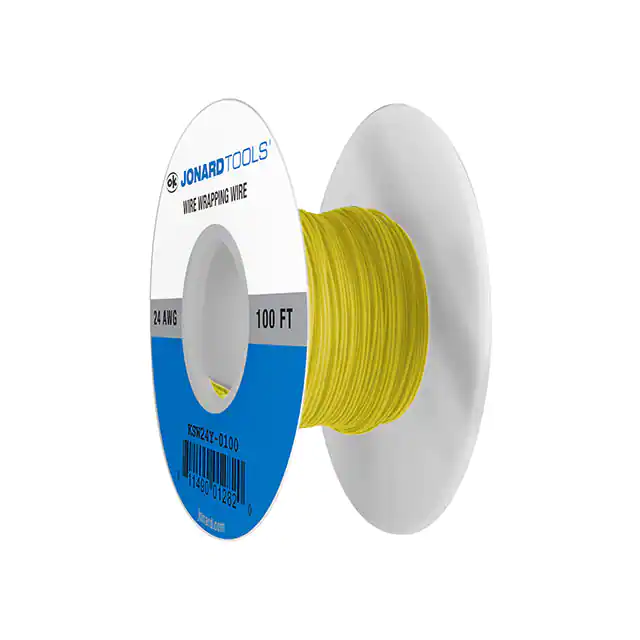

KSW24Y-0100WIRE 24AWG YELLOW 100 FT CSW |
0 | - |
|
数据表 |
KSW | Roll | Obsolete | 24 AWG | 0.019" (0.50mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | Silver | Yellow | UL Style 1422 | - |
|
KSW30R-0100WIRE WW 30AWG PVDF RED 100' |
5 | - |
|
数据表 |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Red | UL Style 1423 | - |
|
KSW30B-0100WIRE WW 30AWG PVDF BLUE 100' |
0 | - |
|
数据表 |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Blue | UL Style 1423 | - |
|

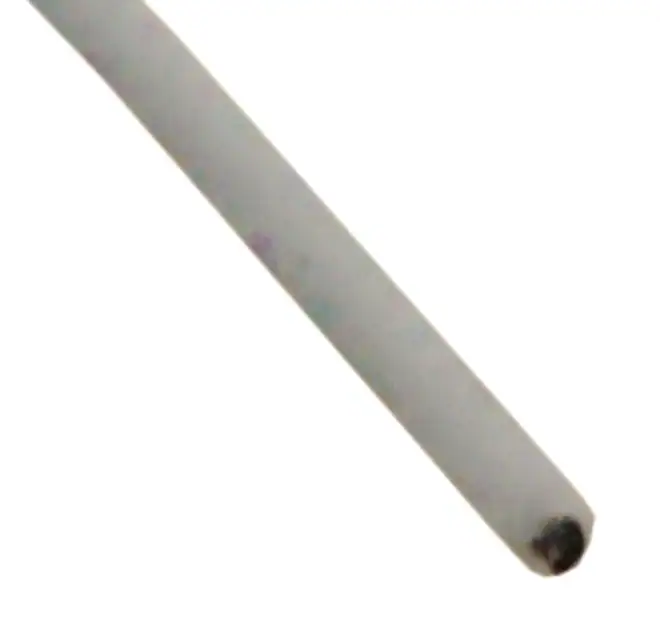

KSW30W-0100WIRE WW 30AWG PVDF WHITE 100' |
0 | - |
|
数据表 |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423 | - |
|

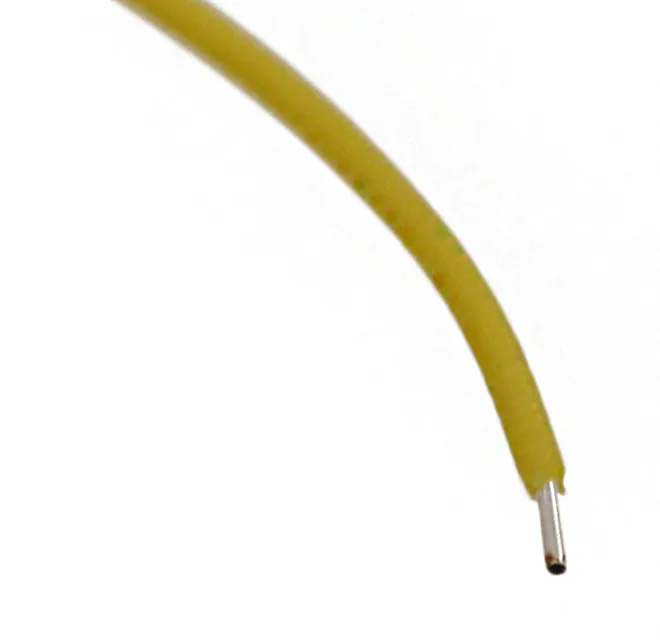

KSW30Y-0100WIRE WW 30AWG PVDF YELLOW 100' |
0 | - |
|
数据表 |
KSW | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Yellow | UL Style 1423 | - |
