铝聚合物电容器是采用导电聚合物作为电解质的铝电解电容器,具有低 ESR,高纹波电流能力,寿命长,温度稳定性好和适合高频电源电路等特点,常用于电源滤波,去耦,储能,电压稳定,DC-DC 转换器输出滤波和纹波电流吸收等电路场景.常见类型包括贴片铝聚合物电容,插件铝聚合物电容,固态铝电解电容和混合型聚合物铝电容等.
宝利科技作为专业电子元器件分销商,可为客户供应行业主流厂商的多系列铝聚合物电容器产品,包括松下(Panasonic),尼吉康(Nichicon),红宝石(Rubycon),United Chemi-Con,基美(KEMET),威世(Vishay),京瓷AVX(KYOCERA AVX),艾华(AISHI)等品牌.您可在下方产品列表中查询所需铝聚合物电容器型号的库存,价格,封装规格,品牌,参数及 PDF 规格书等相关资料,并提交 BOM 或型号清单进行批量询价.
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 | 封装/外壳 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-UD0D271LECAP ALUM POLY 270UF 20% 2V SMD |
0 | - |
|
数据表 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-UD0G151LECAP ALUM POLY 150UF 20% 4V SMD |
0 | - |
|
数据表 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
EEF-UD0G181LECAP ALUM POLY 180UF 20% 4V SMD |
0 | - |
|
数据表 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 4 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
ESRD100M12RCAP ALUM POLY 10UF 20% 12.5V SMD |
0 | - |
|
数据表 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 12.5 V | 60mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
A785MW187M1JLAS015CAP ALUMHYB 180UF 20% 63V SMD |
0 | - |
|
数据表 |
A785 | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 63 V | 15mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 792 mA @ 100 Hz | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
PCR1C102MCSANAGSCAP ALUM HYBRID 100UF 20% 25V SM |
0 | - |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
UGP1E101MNN1012PUCAP ALUM POLY 100UF 20% 25V TH |
0 | - |
|
数据表 |
UGP | Active | Polymer | 100 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.32 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | ||
|
EEF-CX1D330RCAP ALUM POLY 33UF 20% 20V SMD |
17 | - |
|
数据表 |
SP-Cap CX | Tape & Reel (TR) | Not For New Designs | Polymer | 33 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount | |
|
|
ECASD41E156M040KH0CAP ALUM POLY 15UF 20% 25V SMD |
0 | - |
|
数据表 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | ±20% | 25 V | 40mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
UGS1C272MP51020F5RUCAP ALUM POLY 2700UF 20% 16V TH |
0 | - |
|
数据表 |
UGS | Active | Polymer | 2700 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | ||
|
2.5SXE82MCAP ALUM POLY 82UF 20% 2.5V SMD |
0 | - |
|
数据表 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
4SXE68MCAP ALUM POLY 68UF 20% 4V SMD |
0 | - |
|
数据表 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|

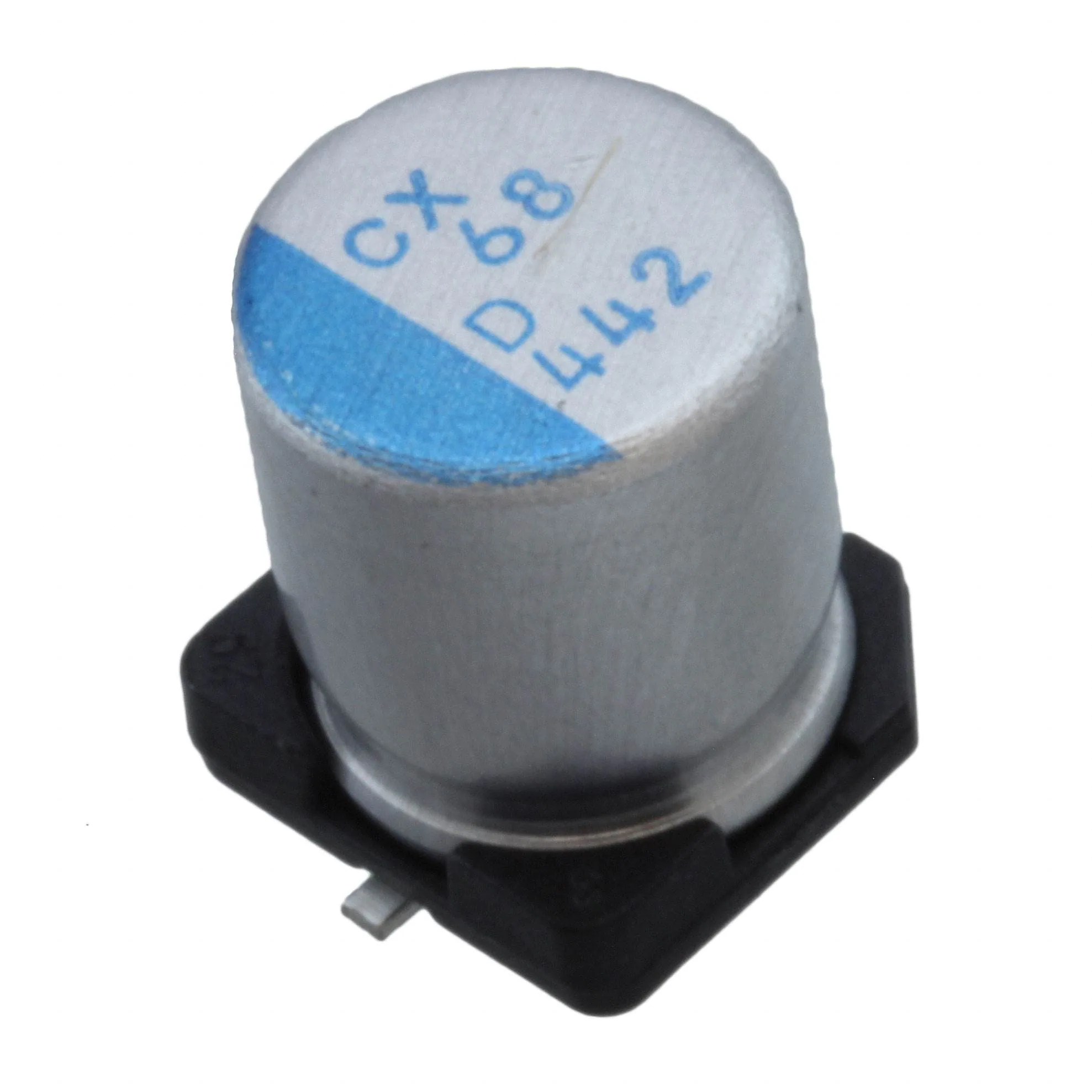

PCX1D680MCS1GSCAP ALUM POLY 68UF 20% 20V SMD |
0 | - |
|
数据表 |
PCX | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 20 V | 34mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.45 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.319" (8.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
870135375006CAP ALUM POLY 390UF 20% 16V TH |
0 | - |
|
数据表 |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 390 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 96.45 mA @ 120 Hz | 1.929 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
URP1C821MP51012ERCAP ALUM POLY 820UF 20% 16V TH |
0 | - |
|
数据表 |
URP | Active | Polymer | 820 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | ||
|
|
A700X337M004ATE0152478CAP ALUM POLY 330UF 20% 4V SMD |
0 | - |
|
- |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 15mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
EEF-SX0D181RCAP ALUM POLY 180UF 20% 2V SMD |
0 | - |
|
数据表 |
SP-Cap SX | Tape & Reel (TR) | Not For New Designs | Polymer | 180 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount | |
|
|
EEF-SX0E151RCAP ALUM POLY 150UF 20% 2.5V SMD |
0 | - |
|
数据表 |
SP-Cap SX | Tape & Reel (TR) | Not For New Designs | Polymer | 150 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Surface Mount | |
|
|
EEF-CX0D271XRCAP ALUM POLY 270UF 20% 2V SMD |
0 | - |
|
数据表 |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 2 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | |
|
|
ESRD220M12RCAP ALUM POLY 22UF 20% 12.5V SMD |
0 | - |
|
数据表 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 12.5 V | 30mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | - | Surface Mount |
