箱体
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

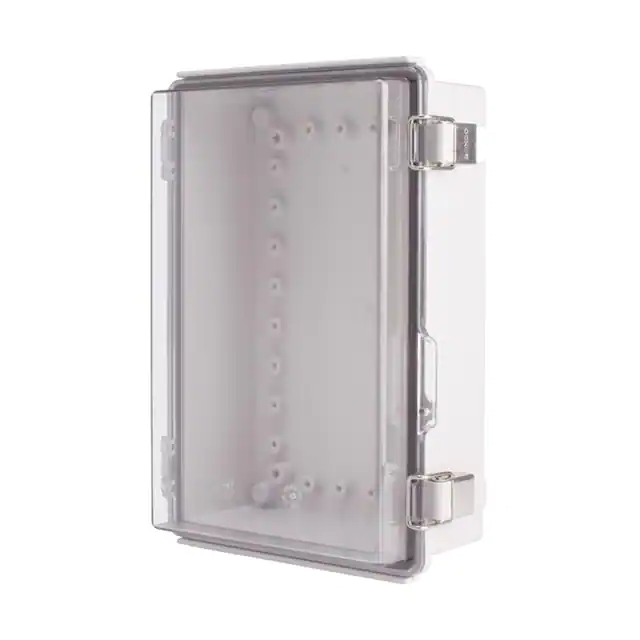

BC-ATP-192810BOX ABS CLEAR 11.02"L X 7.48"W |
36 | - |
|
数据表 |
P | Bulk | Active | Box | 11.024" L x 7.480" W (280.00mm x 190.00mm) | 3.937" (100.00mm) | 82.5in² (532cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-CTP-162113BOX PLASTIC CLEAR 8.27"L X 6.3"W |
18 | - |
|
数据表 |
P | Bulk | Active | Box | 8.268" L x 6.299" W (210.00mm x 160.00mm) | 5.118" (130.00mm) | 52.1in² (336cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
1456FE1BKBKBOX ALUM BLACK 6.68"L X 5.77"W |
0 | - |
|
数据表 |
1456 | Bulk | Active | Box | 6.680" L x 5.770" W (169.67mm x 146.56mm) | 2.590" (65.79mm) | 38.6in² (249cm²) | Slanted Top | Metal, Aluminum | Black | 0.080" (2.03mm) | - | IP31 | - |
|
|
1456FE3BKBKBOX ALUM BLACK 6.68"L X 5.77"W |
0 | - |
|
数据表 |
1456 | Bulk | Active | Box | 6.680" L x 5.770" W (169.67mm x 146.56mm) | 3.210" (81.53mm) | 38.6in² (249cm²) | Slanted Top | Metal, Aluminum | Black | 0.080" (2.03mm) | - | IP31 | - |
|
|
1456FE2BKBKBOX ALUM BLACK 6.68"L X 5.77"W |
0 | - |
|
数据表 |
1456 | Bulk | Active | Box | 6.680" L x 5.770" W (169.67mm x 146.56mm) | 2.210" (56.13mm) | 38.6in² (249cm²) | Slanted Top | Metal, Aluminum | Black | 0.080" (2.03mm) | - | IP31 | - |
|
BC-CGP-162610BOX PLAS LGT GRY 10.24"L X 6.3"W |
25 | - |
|
数据表 |
P | Bulk | Active | Box | 10.236" L x 6.299" W (260.00mm x 160.00mm) | 3.937" (100.00mm) | 64.5in² (416cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
|
BC-CTP-172210BOX PC CLEAR 8.661"L X 6.693"W |
40 | - |
|
数据表 |
P | Bulk | Active | Box | 8.661" L x 6.693" W (220.00mm x 170.00mm) | 4.134" (105.00mm) | 58.0in² (374cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
MB70-T-03SWITCH BOX ALUM 7.32"L X 2.76"W |
86 | - |
|
数据表 |
MB | Bulk | Active | Switch Box | 7.323" L x 2.756" W (186.00mm x 70.00mm) | 2.756" (70.00mm) | 20.2in² (130cm²) | Cover Included, Slanted Top | Metal, Aluminum; Plastic | Silver | - | Pushbutton Holes - 3 | - | - |
|
|
1590WMS50TENCLOSURE ALUM UNPAINTED |
0 | - |
|
数据表 |
1590-RIBBED | Bulk | Active | Enclosure | - | 1.570" (39.88mm) | - | Cover Included | Aluminum | Unpainted | 0.079" (2.00mm) | - | IP65 | - |
|

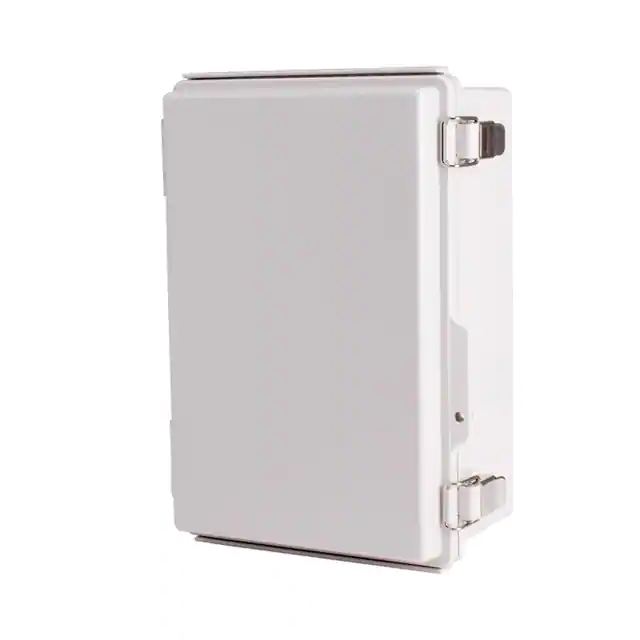

BC-AGP-203013BOX ABS LGT GRY 11.81"L X 7.87"W |
20 | - |
|
数据表 |
P | Bulk | Active | Box | 11.811" L x 7.874" W (300.00mm x 200.00mm) | 5.118" (130.00mm) | 93.0in² (600cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS | Light Gray | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
|
BOX-ALL-48-ASBOX PLASTIC BLACK 9"L X 6"W |
8 | - |
|
数据表 |
Aide Tek | Box | Active | Box | 9.000" L x 6.000" W (228.60mm x 152.40mm) | 2.300" (58.42mm) | 54.0in² (348cm²) | Cover Included | Plastic | Black | - | - | - | - |
|

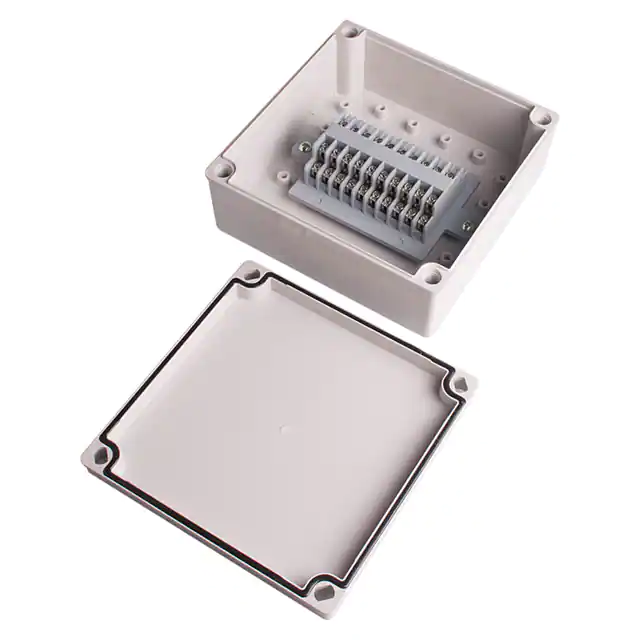

BC-AGG-20PAJUNCTION BOX ABS 6.3"L X 6.3"W |
8 | - |
|
数据表 |
TB | Bulk | Active | Junction Box | 6.299" L x 6.299" W (160.00mm x 160.00mm) | 2.756" (70.00mm) | 39.7in² (256cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-ABB-20PAJUNCT BOX ABS 6.299"L X 6.299"W |
6 | - |
|
数据表 |
TB | Bulk | Active | Junction Box | 6.299" L x 6.299" W (160.00mm x 160.00mm) | 2.756" (70.00mm) | 39.7in² (256cm²) | Lift-Off Screw Cover | Plastic, ABS | Grayish Blue | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-CTP-162610BOX PLASTIC CLR 10.24"L X 6.3"W |
10 | - |
|
数据表 |
P | Bulk | Active | Box | 10.236" L x 6.299" W (260.00mm x 160.00mm) | 3.937" (100.00mm) | 64.5in² (416cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
|
1590WBX2FENCLOSURE ALUM 10"L X 2.76"W |
0 | - |
|
数据表 |
1590-RIBBED | Bulk | Active | Enclosure | 10.000" L x 2.756" W (254.00mm x 70.00mm) | 1.570" (39.88mm) | 27.5in² (177cm²) | Cover Included | Aluminum | - | 0.079" (2.00mm) | - | IP65 | - |
|

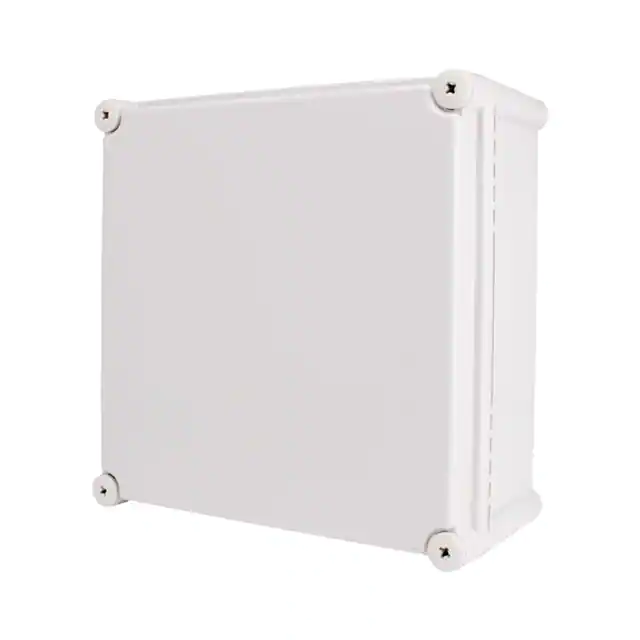

BC-AGS-282813BOX ABS LGT GRY 11.02"LX11.02"W |
25 | - |
|
数据表 |
S | Bulk | Active | Box | 11.024" L x 11.024" W (280.00mm x 280.00mm) | 5.118" (130.00mm) | 122in² (784cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
C3R1244SCBOX STEEL GRAY 12"L X 4"W |
0 | - |
|
数据表 |
C3R SC | Bulk | Active | Box | 12.000" L x 4.000" W (304.80mm x 101.60mm) | 4.000" (101.60mm) | 48.0in² (310cm²) | Cover Included | Metal, Steel | Gray | - | Knockouts, Lockable, Wall Mount | IP24, NEMA 3R, UL-50 | - |
|
BC-ATS-202016BOX ABS CLEAR 7.87"L X 7.87"W |
22 | - |
|
数据表 |
S | Bulk | Active | Box | 7.874" L x 7.874" W (200.00mm x 200.00mm) | 6.299" (160.00mm) | 62.0in² (400cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
BC-AL-101008BOX ALUM GRAY 3.94"L X 3.94"W |
6 | - |
|
数据表 |
AE | Bulk | Active | Box | 3.937" L x 3.937" W (100.00mm x 100.00mm) | 3.189" (81.00mm) | 15.5in² (100cm²) | Lift-Off Screw Cover | Metal, Aluminum | Gray | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | - |
|
|
1456FG4BKBKBOX ALUM BLACK 7.48"L X 6.68"W |
0 | - |
|
数据表 |
1456 | Bulk | Active | Box | 7.480" L x 6.680" W (189.99mm x 169.67mm) | 4.210" (106.93mm) | 49.9in² (322cm²) | Slanted Top | Metal, Aluminum | Black | 0.080" (2.03mm) | - | IP31 | - |
