箱体
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BC-AL-081306BOX ALUM GRAY 4.92"L X 3.15"W |
9 | - |
|
数据表 |
AE | Bulk | Active | Box | 4.921" L x 3.150" W (125.00mm x 80.00mm) | 2.244" (57.00mm) | 15.5in² (100cm²) | Lift-Off Screw Cover | Metal, Aluminum | Gray | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | - |
|
BC-ABB-20PJUNCT BOX ABS 9.055"L X 3.937"W |
7 | - |
|
数据表 |
TB | Bulk | Active | Junction Box | 9.055" L x 3.937" W (230.00mm x 100.00mm) | 2.756" (70.00mm) | 35.6in² (230cm²) | Lift-Off Screw Cover | Plastic, ABS | Grayish Blue | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BOX-ALL-144BOX GRAY 8.7"L X 5.7"W |
44 | - |
|
数据表 |
Aide Tek | Box | Active | Box | 8.700" L x 5.700" W (220.98mm x 144.78mm) | 1.500" (38.10mm) | 49.5in² (319cm²) | Cover Included | - | Gray | - | - | - | - |
|

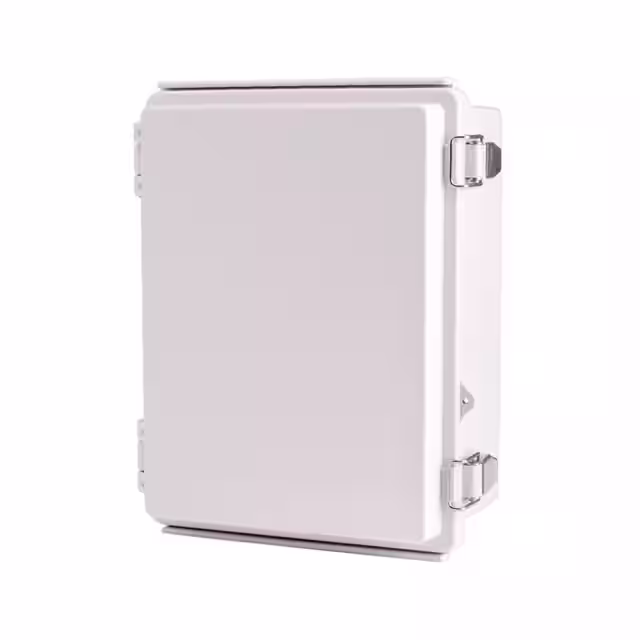

BC-CGP-162110BOX PC GRAY 8.268"L X 6.299"W |
10 | - |
|
数据表 |
P | Bulk | Active | Box | 8.268" L x 6.299" W (210.00mm x 160.00mm) | 3.937" (100.00mm) | 52.1in² (336cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-ATP-212110BOX ABS CLEAR 8.27"L X 8.27"W |
12 | - |
|
数据表 |
P | Bulk | Active | Box | 8.268" L x 8.268" W (210.00mm x 210.00mm) | 3.937" (100.00mm) | 68.4in² (441cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
SAL3.0D1W2ALUMINUM BOX 131Hx178Dx305W MM. |
52 | - |
|
数据表 |
SA | Box | Active | Enclosure | 12.008" L x 7.008" W (305.00mm x 178.00mm) | 5.157" (131.00mm) | 84.1in² (543cm²) | Cover Included | Metal, Aluminum | Blue | - | - | - | - |
|
C3R666SCBOX STEEL GRAY 6"L X 6"W |
0 | - |
|
数据表 |
C3R SC | Bulk | Active | Box | 6.000" L x 6.000" W (152.40mm x 152.40mm) | 6.000" (152.40mm) | 36.0in² (232cm²) | Cover Included | Metal, Steel | Gray | - | Knockouts, Lockable, Wall Mount | IP24, NEMA 3R, UL-50 | - |
|
SAL3.0D2W1ENCLOSURE ALUM 7.99"L X 10.98"W |
13 | - |
|
数据表 |
SA | Box | Active | Enclosure | 7.992" L x 10.984" W (203.00mm x 279.00mm) | 5.157" (131.00mm) | 87.8in² (566cm²) | Cover Included | Metal, Aluminum | Blue | - | - | - | - |
|

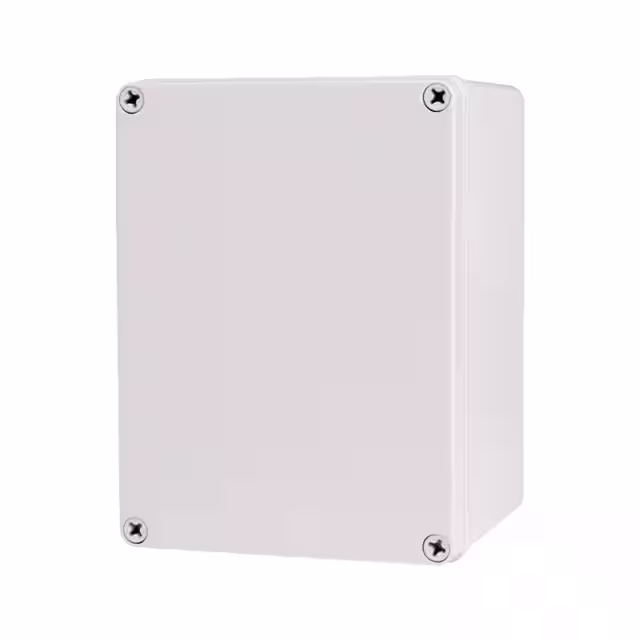

BC-CGS-152013BOX PLAS LGT GRY 7.87"L X 5.91"W |
40 | - |
|
数据表 |
S | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 5.118" (130.00mm) | 46.5in² (300cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-CTS-152013BOX PLASTIC CLR 7.87"L X 5.91"W |
14 | - |
|
数据表 |
S | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 5.118" (130.00mm) | 46.5in² (300cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
|
200-905-91BOX PLASTIC GRAY |
17 | - |
|
数据表 |
TG | Bulk | Active | Box | - | 3.350" (85.09mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP67, NEMA 4X | UL94 V-2 |
|
BC-CTP-162110BOX PLASTIC CLEAR 8.27"L X 6.3"W |
19 | - |
|
数据表 |
P | Bulk | Active | Box | 8.268" L x 6.299" W (210.00mm x 160.00mm) | 3.937" (100.00mm) | 52.1in² (336cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
|
1590WKKFLBKENCLOSURE ALUM 4.91"L X 4.91"W |
0 | - |
|
数据表 |
1590-RIBBED | Bulk | Active | Enclosure | 4.910" L x 4.910" W (124.71mm x 124.71mm) | 2.240" (56.90mm) | 24.1in² (156cm²) | Cover Included | Aluminum | Black | 0.079" (2.00mm) | - | IP65 | - |
|
BC-AGG-20PTJUNCTION BOX ABS 9.06"L X 3.94"W |
16 | - |
|
数据表 |
TB | Bulk | Active | Junction Box | 9.055" L x 3.937" W (230.00mm x 100.00mm) | 2.756" (70.00mm) | 35.6in² (230cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|

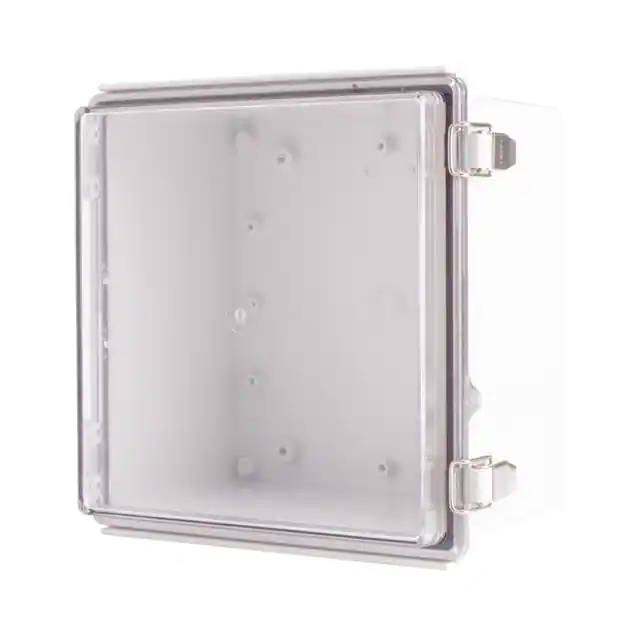

BC-ATP-212113BOX ABS CLEAR 8.27"L X 8.27"W |
11 | - |
|
数据表 |
P | Bulk | Active | Box | 8.268" L x 8.268" W (210.00mm x 210.00mm) | 5.118" (130.00mm) | 68.4in² (441cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-ABB-20PTJUNCT BOX ABS 9.055"L X 3.937"W |
10 | - |
|
数据表 |
TB | Bulk | Active | Junction Box | 9.055" L x 3.937" W (230.00mm x 100.00mm) | 2.756" (70.00mm) | 35.6in² (230cm²) | Lift-Off Screw Cover | Plastic, ABS | Grayish Blue | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
SK200ENCLOSURE POLYPROP 12.2"LX9.5"W |
82 | - |
|
数据表 |
- | Bulk | Active | Enclosure | 12.200" L x 9.500" W (309.88mm x 241.30mm) | 1.600" (40.64mm) | 116in² (747cm²) | Hinged Lid | Plastic, Polypropylene | Gray | - | - | - | - |
|
|
1590WBBSFBKENCLOSURE ALUM 4.7"L X 3.7"W |
0 | - |
|
数据表 |
1590-RIBBED | Bulk | Active | Enclosure | 4.700" L x 3.700" W (119.38mm x 93.98mm) | 1.660" (42.16mm) | 17.3in² (112cm²) | Cover Included | Aluminum | Black | 0.079" (2.00mm) | - | IP65 | - |
|
BC-CGP-162113BOX PLAS LGT GRY 8.27"L X 6.3"W |
8 | - |
|
数据表 |
P | Bulk | Active | Box | 8.268" L x 6.299" W (210.00mm x 160.00mm) | 5.118" (130.00mm) | 52.1in² (336cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
|
BC-CGP-172210BOX PC GRAY 8.661"L X 6.693"W |
39 | - |
|
数据表 |
P | Bulk | Active | Box | 8.661" L x 6.693" W (220.00mm x 170.00mm) | 4.134" (105.00mm) | 58.0in² (374cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
