固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
744760318AFIXED IND 1.8UH 120MA 3 OHM SMD |
1,580 | - |
|
数据表 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 120 mA | - | Unshielded | 3Ohm Max | 15 @ 7.96MHz | 120MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
LQH32PB470MN0LFIXED IND 47UH 310MA 2.14OHM SMD |
1,435 | - |
|
数据表 |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 310 mA | 330mA | Shielded | 2.14Ohm Max | - | 11MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|

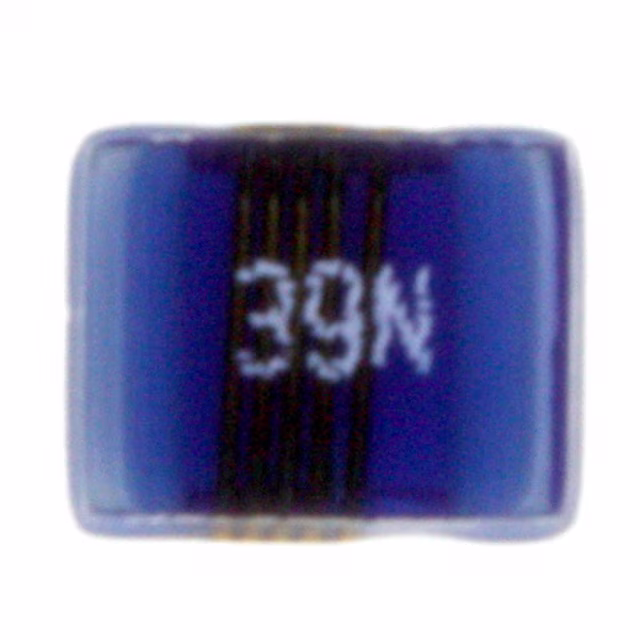

744762139AFIXED IND 39NH 1A 100 MOHM SMD |
1,413 | - |
|
数据表 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 1 A | - | Unshielded | 100mOhm Max | 60 @ 350MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
TFM141208BLE-R47MTCAIND 470NH 4.1A 35MOHM -40~125 |
1,260 | - |
|
数据表 |
TFM-BLE | 0505 (1412 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 470 nH | ±20% | 4.1 A | 3.9A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 0505 | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.031" (0.80mm) |
|
B82496C3150G000FIXED IND 15NH 420MA 400MOHM SMD |
15,650 | - |
|
数据表 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±2% | 420 mA | - | Unshielded | 400mOhm Max | 14 @ 100MHz | 4.5GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
AIAP-01-101K-TFIXED IND 100UH 550MA 670MOHM TH |
11,773 | - |
|
数据表 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | 550 mA | - | Unshielded | 670mOhm Max | - | 3.9MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
|
AIAP-01-390K-TFIXED IND 39UH 880MA 260 MOHM TH |
9,971 | - |
|
数据表 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±10% | 880 mA | - | Unshielded | 260mOhm Max | - | 7.1MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
TYA4020150M-10FIXED IND 15UH 1A 400 MOHM SMD |
7,337 | - |
|
数据表 |
TYA4020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 1 A | 2.1A | Shielded | 400mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
.jpg)
|
B82422A3829K100FIXED IND 8.2NH 800MA 80MOHM SMD |
6,000 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±10% | 800 mA | - | Unshielded | 80mOhm Max | 20 @ 100MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
F1C1-322512-R68MFIXED IND 0.68 UH 6.8A 23 MOHM |
3,000 | - |
|
数据表 |
F1C1-3225 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 6.8 A | 7.7A | Shielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
F1C1-322510-R68MFIXED IND 0.68 UH 5.7A 28 MOHM |
3,000 | - |
|
数据表 |
F1C1-3225 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 5.7 A | 7A | Shielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
F1C1-322510-1R5MFIXED IND 1.5 UH 3.6A 42 MOHM |
2,990 | - |
|
数据表 |
F1C1-3225 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 3.6 A | 4.4A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
F1C1-201210-R47MFIXED IND 0.47UH 4.3A 36 MOHM |
2,970 | - |
|
数据表 |
F1C1-2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 4.3 A | 5A | Shielded | 36mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
F1C1-201210-R68MFIXED IND 0.68UH 4.0A 43 MOHM |
2,950 | - |
|
数据表 |
F1C1-2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 4 A | 4.5A | Shielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
F1C1-322512-1R5MFIXED IND 1.5 UH 4.3A 44 MOHM |
2,792 | - |
|
数据表 |
F1C1-3225 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 4.3 A | 4.7A | Shielded | 44mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
B82422T1332J000FIXED IND 3.3UH 260MA 1.2OHM SMD |
2,600 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 260 mA | - | Unshielded | 1.2Ohm Max | 30 @ 7.96MHz | 60MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
IFSC2020BZER100M01FIXED IND 10UH 1.2A 127 MOHM SMD |
2,497 | - |
|
数据表 |
IFSC-2020BZ | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 10 µH | ±20% | 1.2 A | 2A | Semi-Shielded | 127mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
BMNI00040410100MQXIND 10UH SHLD 20% 1.5A |
1,929 | - |
|
数据表 |
BMNI | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 1.5 A | 1.65A | Shielded | 336mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.047" (1.20mm) |
|
|
F1C1-322510-1R0MFIXED IND 1.0 UH 4.9A 30 MOHM |
1,900 | - |
|
数据表 |
F1C1-3225 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 4.9 A | 5.3A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
IFSC2020DEER181M02FIXED IND 180UH 0.78A 894 MOHM S |
1,500 | - |
|
数据表 |
IFSC2020DE-02 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 180 µH | ±20% | 780 mA | 1.12A | Shielded | 894mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
