固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYA40123R3M-10PWRIND,SMT,SHLD,IRATED 4.00X4.00 |
17,439 | - |
|
数据表 |
TYA4012 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 2 A | 2.8A | Shielded | 130mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.051" (1.30mm) |
.jpg)
|
B82422T1562J000FIXED IND 5.6UH 200MA 1.6OHM SMD |
11,890 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 200 mA | - | Unshielded | 1.6Ohm Max | 27 @ 7.96MHz | 45MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422T1222J000FIXED IND 2.2UH 320MA 800MOHM SM |
11,800 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 320 mA | - | Unshielded | 800mOhm Max | 30 @ 7.96MHz | 100MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422T1334K000FIXED IND 330UH 40MA 34 OHM SMD |
10,144 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 40 mA | - | Unshielded | 34Ohm Max | 20 @ 796kHz | 4MHz | AEC-Q200 | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
AIAP-01-392K-TFIXED IND 3.9MH 77MA 34 OHM TH |
9,727 | - |
|
数据表 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 3.9 mH | ±10% | 77 mA | - | Unshielded | 34Ohm Max | - | 480kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
|
LQW18AS22NJ0CDFIXED IND 22NH 700MA 190MOHM SMD |
8,315 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±5% | 700 mA | - | Unshielded | 190mOhm Max | 38 @ 250MHz | 3GHz | - | -40°C ~ 85°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSCNB1005EETR22MBFIXED IND 220NH 1.6A 80 MOHM SMD |
7,972 | - |
|
数据表 |
LSCN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 220 nH | ±20% | 1.6 A | 1.6A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
AWVT004040121R0M00INDUCTOR POWER |
5,987 | - |
|
数据表 |
AWVT | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 2.7 A | 2.6A | Unshielded | 40mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.051" (1.30mm) |
|
|
LCCNF1608KKTR33MAINDUCTOR MULTILAYER 0.33UH 0603 |
5,925 | - |
|
数据表 |
LCCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 330 nH | ±20% | 3.3 A | 2.8A | Unshielded | - | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LCCNF1608KKTR24MAINDUCTOR MULTILAYER 0.24UH 0603 |
5,795 | - |
|
数据表 |
LCCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 240 nH | ±20% | 3.8 A | 3.2A | Unshielded | 35mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

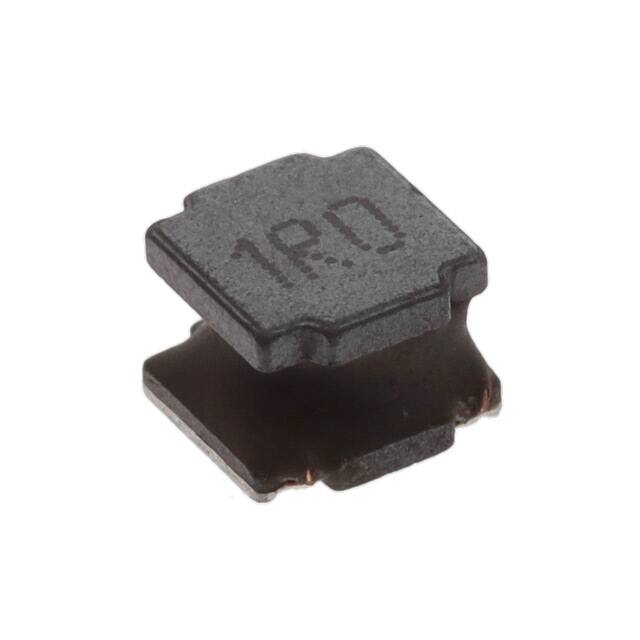

ASPI-6045T-1R0N-TIND 1UH 5.14A 14M |
5,769 | - |
|
数据表 |
ASPI-6045T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 5.14 A | 9.85A | Shielded | 14mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
B82422T1152J000FIXED IND 1.5UH 370MA 700MOHM SM |
4,340 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 370 mA | - | Unshielded | 700mOhm Max | 30 @ 7.96MHz | 200MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
CW252016-33NGFIXED IND 33NH 600MA 160MOHM SMD |
4,000 | - |
|
数据表 |
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±2% | 600 mA | - | Unshielded | 160mOhm Max | 60 @ 350MHz | 1.6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
LQW18AS8N2J0CDFIXED IND 8.2NH 700MA 115MOHM SM |
4,000 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 8.2 nH | ±5% | 700 mA | - | Unshielded | 115mOhm Max | 30 @ 250MHz | 4.2GHz | - | -40°C ~ 85°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18ASR15J0CDFIXED IND 150NH 280MA 920MOHM SM |
3,896 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 150 nH | ±5% | 280 mA | - | Unshielded | 920mOhm Max | 28 @ 150MHz | 990MHz | - | -40°C ~ 85°C | 150 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18ASR12J0CDFIXED IND 120NH 300MA 650MOHM SM |
3,350 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 120 nH | ±5% | 300 mA | - | Unshielded | 650mOhm Max | 32 @ 150MHz | 1.3GHz | - | -40°C ~ 85°C | 150 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18AS33NJ0CDFIXED IND 33NH 600MA 220MOHM SMD |
3,270 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 33 nH | ±5% | 600 mA | - | Unshielded | 220mOhm Max | 40 @ 250MHz | 2.3GHz | - | -40°C ~ 85°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
AWVS00404018101M00INDUCTOR POWER |
3,182 | - |
|
数据表 |
AWVS | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 340 mA | 410mA | Shielded | 1.5Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
SRP2512-1R5MFIXED IND 1.5UH 2.5A 77 MOHM SMD |
2,939 | - |
|
数据表 |
SRP2512 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 2.5 A | 3.2A | Shielded | 77mOhm Max | 39 @ 1MHz | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
AKPE002012102R2TA2INDUCTOR POWER |
2,625 | - |
|
数据表 |
AKP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±30% | 1.6 A | 500mA | Shielded | 125mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
