固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HTTI-56-5.3TOROIDAL IND HI TEMP 56UH 5.3ADC |
480 | - |
|
数据表 |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 56 µH | ±15% | 5.3 A | - | Shielded | 40mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
HTTI-47-5.6TOROIDAL IND HI TEMP 46UH 5.6ADC |
480 | - |
|
数据表 |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 47 µH | ±15% | 5.6 A | - | Shielded | 36mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
HTTI-68-5.1TOROIDAL IND HI TEMP 68UH 5.1ADC |
480 | - |
|
数据表 |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 68 µH | ±15% | 5.1 A | - | Shielded | 44mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|

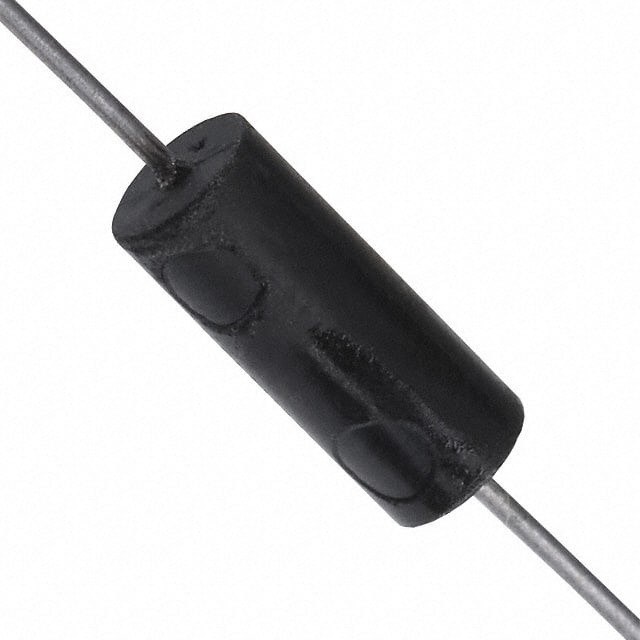

1641R-105KFIXED IND 1MH 70MA 17.5 OHM TH |
500 | - |
|
数据表 |
1641R | Axial | Bulk | Active | Molded | Ferrite | 1 mH | ±10% | 70 mA | 40mA | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
ASPI-F1060-4R7M-TIND 4.7UH 14A 10.72M |
1,000 | - |
|
数据表 |
ASPI-F1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 14 A | 22A | Shielded | 10.72mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.236" (6.00mm) |
|
|
ASPI-F1060-1R0M-TIND 1UH 28.5A 2.32M |
990 | - |
|
数据表 |
ASPI-F1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 28.5 A | 44A | Shielded | 2.32mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.236" (6.00mm) |
|
|
ASPI-F1060-2R2M-TIND 2.2UH 20A 4.84M |
837 | - |
|
数据表 |
ASPI-F1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 20 A | 30A | Shielded | 4.84mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.236" (6.00mm) |
.jpg)
|
ASPI-F1060-100M-TIND 10UH 9A 18.2M |
816 | - |
|
数据表 |
ASPI-F1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 9 A | 13A | Shielded | 18.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.236" (6.00mm) |
|
AMDLA1707S-4R7MTFIXED IND 4.7UH 28A 4.5MOHM SMD |
220 | - |
|
数据表 |
AMDLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 28 A | 29A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
AMDLA1707S-1R0MTFIXED IND 1UH 46A 1.3 MOHM SMD |
200 | - |
|
数据表 |
AMDLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 46 A | 50A | Shielded | 1.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
AMDLA1707S-470MTFIXED IND 47UH 9.5A 47 MOHM SMD |
166 | - |
|
数据表 |
AMDLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 47 µH | ±20% | 9.5 A | 9.8A | Shielded | 47mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
AMDLA1707S-3R3MTFIXED IND 3.3UH 30A 3.3MOHM SMD |
151 | - |
|
数据表 |
AMDLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 30 A | 32A | Shielded | 3.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
IHTH0750IZEB220M5AFIXED IND 22UH 12.7A 13.22 MOHM |
184 | - |
|
数据表 |
IHTH-0750IZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 22 µH | ±20% | 12.7 A | 11.5A | Shielded | 13.22mOhm Max | - | 6.42MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.755" Dia (19.18mm) | 0.354" (8.99mm) |
|
|
VLBUC12060120R20LF3FIXED IND 200NH 58A 0.125MOHM SM |
524 | - |
|
数据表 |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 200 nH | ±15% | 70 A | 58A | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
VLBUC12060120R09LF3FIXED IND 90NH 138A 0.125MOHM SM |
520 | - |
|
数据表 |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 90 nH | ±15% | 70 A | 138A | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
VLBUC12060120R15LF3FIXED IND 150NH 82A 0.125MOHM SM |
440 | - |
|
数据表 |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 nH | ±15% | 70 A | 82A | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
UP2-6R8-RFIXED IND 6.8UH 5A 23 MOHM SMD |
550 | - |
|
数据表 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 5 A | 3.6A | Unshielded | 23mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
|
FP1010R3-R220-RIND FLAT PAC 220NH 63A 2 PADS |
500 | - |
|
数据表 |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±10% | 78 A | 38A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
SPD62R-122MFIXED IND 1.2UH 3.5A 80 MOHM SMD |
1,500 | - |
|
数据表 |
SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 3.5 A | 3.5A | Shielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SPD62R-242MFIXED IND 2.4UH 2.8A 100MOHM SMD |
1,399 | - |
|
数据表 |
SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.4 µH | ±20% | 2.8 A | 2.8A | Shielded | 100mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
