固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLBUC12060120R17LF3FIXED IND 170NH 70A 0.125MOHM SM |
590 | - |
|
数据表 |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 170 nH | ±15% | 70 A | 106A | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
VLBUC12060120R08MF3FIXED IND 75NH 148A 0.125MOHM SM |
525 | - |
|
数据表 |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 75 nH | ±20% | 70 A | 148A | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
1025R-64KFIXED IND 68UH 92MA 6.7 OHM TH |
500 | - |
|
数据表 |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 68 µH | ±10% | 92 mA | - | Unshielded | 6.7Ohm Max | 50 @ 2.5MHz | 15MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-66KFIXED IND 82UH 88MA 7.3 OHM TH |
500 | - |
|
数据表 |
1025R | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 82 µH | ±10% | 88 mA | - | Unshielded | 7.3Ohm Max | 50 @ 2.5MHz | 14MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
VLBUC12060120R07MF3FIXED IND 70NH 155A 0.125MOHM SM |
447 | - |
|
数据表 |
VLBUC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 70 nH | ±20% | 70 A | 155A | Unshielded | 0.138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
SPD62R-124MFIXED IND 120UH 390MA 1.7OHM SMD |
342 | - |
|
数据表 |
SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 390 mA | 390mA | Shielded | 1.7Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
|
RL-1256-1-330FIXED IND 330 UH 1.3A 336MOHM TH |
498 | - |
|
数据表 |
RL-1256 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 330 µH | ±10% | 1.3 A | 3.8A | Unshielded | 336mOhm Max | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.850" (21.59mm) |
|
|
RL-1256-1-100FIXED IND 100UH 2.8A 95MOHM TH |
490 | - |
|
数据表 |
RL-1256 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 100 µH | ±10% | 2.8 A | 7.5A | Unshielded | 95mOhm Max | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.850" (21.59mm) |
|
|
HTTI-120-3.5TOROIDAL IND HI TEMP 120UH 3.5AD |
480 | - |
|
数据表 |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 120 µH | ±15% | 3.5 A | - | Shielded | 94mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
HTTI-180-3.1TOROIDAL IND HI TEMP 180UH 3.1AD |
480 | - |
|
数据表 |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 180 µH | ±15% | 3.1 A | - | Shielded | 120mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
HTTI-150-3.3TOROIDAL IND HI TEMP 150UH 3.3AD |
480 | - |
|
数据表 |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 150 µH | ±15% | 3.3 A | - | Shielded | 110mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
DLH-14-0002FIXED IND 200UH 1A 220 MOHM TH |
133 | - |
|
数据表 |
DLH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | 200 µH | ±15% | 1 A | - | Shielded | 220mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.591" L x 0.413" W (15.00mm x 10.50mm) | - |
|

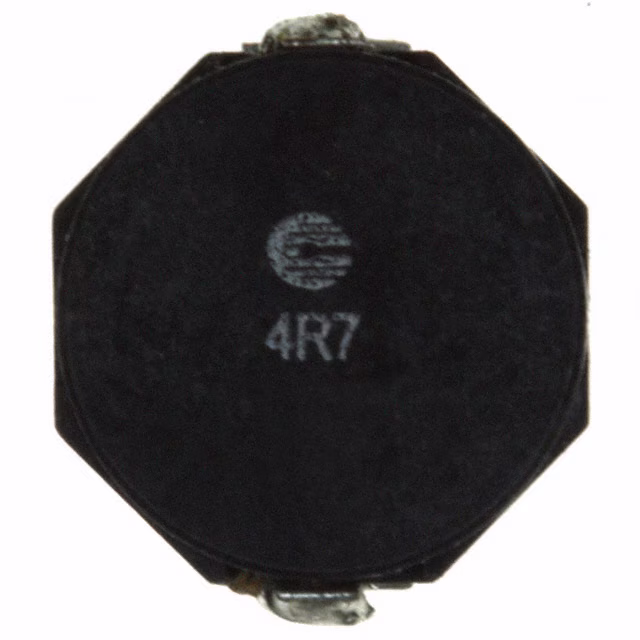

SD8350-4R7-RFIXED IND 4.7UH 4.1A 22 MOHM SMD |
750 | - |
|
数据表 |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.1 A | 5.5A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
|
PD0120.183NLTFIXED IND 18.7UH 6.4A 25.5 MOHM |
500 | - |
|
数据表 |
PD0120NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18.7 µH | ±10% | 6.4 A | 7.6A | Unshielded | 25.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
|
PE-53823NLFIXED IND 38UH 1.2A 100 MOHM TH |
474 | - |
|
数据表 |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 38 µH | ±20% | 1.2 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|
|
784373680470Power Inductor 47 H 20 |
800 | - |
|
数据表 |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 3.7 A | 5.85A | Shielded | 165mOhm Max | - | 5.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
784373680150Power Inductor 15 H 20 |
800 | - |
|
数据表 |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 7.5 A | 9.9A | Shielded | 48.5mOhm Max | - | 8.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
784373680082Power Inductor 8.2 H 20 |
800 | - |
|
数据表 |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 9.75 A | 13.1A | Shielded | 27.5mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
784373680068Power Inductor 6.8 H 20 |
800 | - |
|
数据表 |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 10.5 A | 13.2A | Shielded | 22.4mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
784373680047Power Inductor 4.7 H 20 |
800 | - |
|
数据表 |
WE-LHCA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 12.1 A | 16A | Shielded | 15.3mOhm Max | - | 14.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
