固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS3015CX-470M-1FIXED IND 47UH 590MA 1.441OHM SM |
3,007 | - |
|
数据表 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 590 mA | 410mA | Shielded | 1.441Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LSXND3030QKT100MNGFIXED IND 10UH 700MA 264MOHM SMD |
2,970 | - |
|
数据表 |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 710 mA | 700mA | Shielded | 264mOhm Max | - | 28MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
77F1R0K-TR-RCFIXED IND 1UH 920MA 170 MOHM TH |
2,768 | - |
|
数据表 |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 920 mA | - | Unshielded | 170mOhm Max | 50 @ 25.2MHz | 157MHz | - | -55°C ~ 105°C | 25.2 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
SRP3212A-2R2MIND METAL POWDER 2.2UH 4A |
2,651 | - |
|
数据表 |
SRP3212A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 4 A | 4.8A | Shielded | 73mOhm Max | 5 @ 100kHz | 41MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | Flat Wire | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
LQM21NN3R3K10LFIXED IND 3.3UH 30MA 800MOHM SMD |
2,596 | - |
|
数据表 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 3.3 µH | ±10% | 30 mA | - | Shielded | 800mOhm Max | 45 @ 10MHz | 59MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
.jpg)
|
MLF1608A3R3JTD25FIXED IND 3.3UH 30MA 1.15OHM SMD |
2,557 | - |
|
数据表 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±5% | 30 mA | - | Shielded | 1.3Ohm Max | 35 @ 10MHz | 70MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
SRP3212A-3R3MIND METAL POWDER 3.3UH 3.1A |
2,542 | - |
|
数据表 |
SRP3212A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 3.1 A | 3.4A | Shielded | 101mOhm Max | 5 @ 100kHz | 28MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | Flat Wire | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
78F220J-RCFIXED IND 22UH 285MA 1.2 OHM TH |
2,432 | - |
|
数据表 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 285 mA | - | Unshielded | 1.2Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
SRP2512TMA-R47MFIXED IND 470NH 6.2A 0.018OHM SM |
2,301 | - |
|
数据表 |
SRP2512TMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 6.2 A | 6.2A | Shielded | 18mOhm Max | 15 @ 1MHz | 112MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Flat Wire | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
78F1R2K-RCFIXED IND 1.2UH 740MA 180MOHM TH |
2,299 | - |
|
数据表 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 740 mA | - | Unshielded | 180mOhm Max | 40 @ 7.9MHz | 165MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
AISC-0805-R047J-TFIXED IND 47NH 500MA 310MOHM SMD |
2,066 | - |
|
数据表 |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 500 mA | - | Unshielded | 310mOhm Max | 50 @ 500MHz | 1.6GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
LSQPB201214T2R2MDFIXED IND 2.2UH 1A 143 MOHM SMD |
2,027 | - |
|
数据表 |
LSQP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1 A | 1.1A | Unshielded | 143mOhm Max | - | 350MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
LQW2BAS1R0J00LFIXED IND 1UH 170MA 2.4 OHM SMD |
2,000 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±5% | 170 mA | - | Unshielded | 2.4Ohm Max | 23 @ 50MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
SRP3212A-1R5MIND METAL POWDER 1.5UH 4.4A |
1,883 | - |
|
数据表 |
SRP3212A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 4.4 A | 5A | Shielded | 53mOhm Max | 5 @ 100kHz | 43MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | Flat Wire | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
NRS5020T6R8MMGJFIXED IND 6.8UH 1.65A 108MOHM SM |
1,848 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.65 A | 1.6A | Shielded | 108mOhm Max | - | 30MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
|
LQM21NN2R2K10DFIXED IND 2.2UH 30MA 630MOHM SMD |
1,298 | - |
|
数据表 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 2.2 µH | ±10% | 30 mA | - | Shielded | 630mOhm Max | 45 @ 10MHz | 71MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LQM21NNR68K10DFIXED IND 680NH 150MA 720MOHM SM |
1,279 | - |
|
数据表 |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 680 nH | ±10% | 150 mA | - | Shielded | 720mOhm Max | 25 @ 25MHz | 125MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
LSXND3030QKT2R2MNGFIXED IND 2.2UH 1.5A 58 MOHM SMD |
1,174 | - |
|
数据表 |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.48A | Shielded | 69.6mOhm Max | - | 64MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

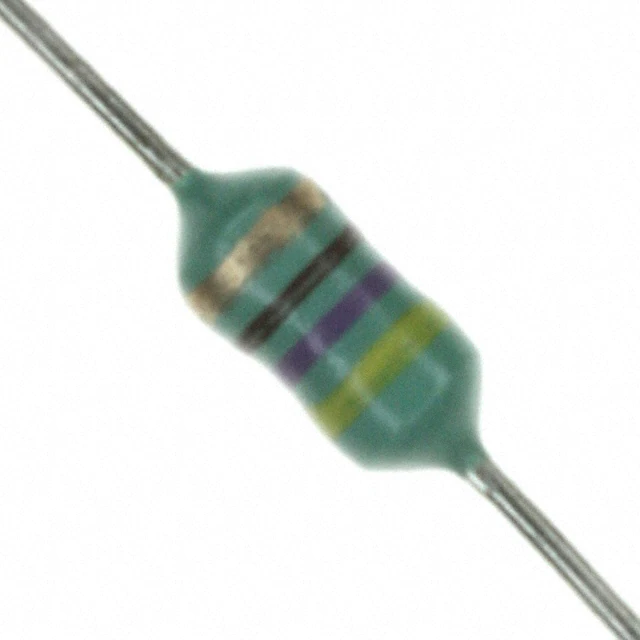

78F471J-RCFIXED IND 470UH 90MA 14 OHM TH |
1,153 | - |
|
数据表 |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 90 mA | - | Unshielded | 14Ohm Max | 60 @ 790kHz | 2.55MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
VLS201612CX-2R2M-1FIXED IND 2.2UH 1.5A 140MOHM SMD |
415,534 | - |
|
数据表 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.33A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
