固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74406042220FIXED IND 22UH 1A 339.2MOHM SMD |
1,017 | - |
|
数据表 |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1 A | 680mA | Shielded | 339.2mOhm | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4818 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
RCR875DNP-151KFIXED IND 150UH 600MA 510MOHM TH |
32,853 | - |
|
数据表 |
RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 150 µH | ±10% | 600 mA | - | Shielded | 510mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|

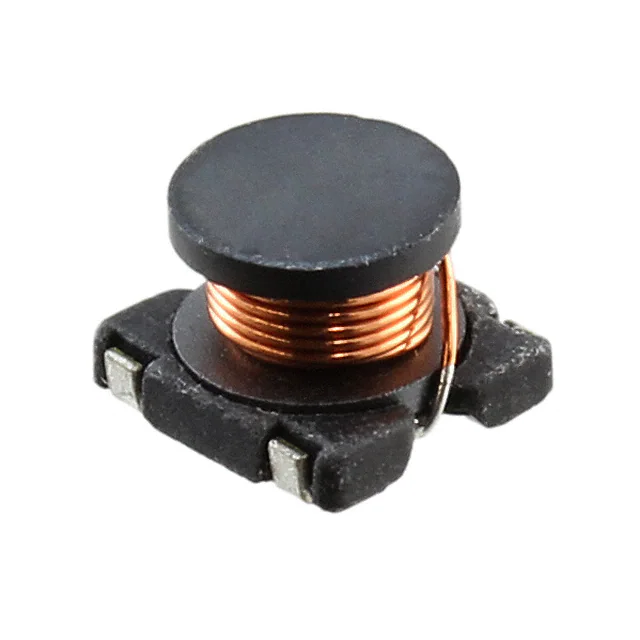

CR32NP-100KCFIXED IND 10UH 760MA 230MOHM SMD |
7,484 | - |
|
数据表 |
CR32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 760 mA | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.138" W (3.80mm x 3.50mm) | 0.118" (3.00mm) |
|
DR1040-100-RFIXED IND 10UH 3.8A 35 MOHM SMD |
2,576 | - |
|
数据表 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 3.8 A | 4.4A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
CR43NP-6R8MCFIXED IND 6.8UH 950MA 131.2 MOHM |
1,832 | - |
|
数据表 |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 950 mA | - | Unshielded | 131.2mOhm Max | - | 42.3MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
SRR0745A-100MFIXED IND 10UH 2.1A 52 MOHM SMD |
8,582 | - |
|
数据表 |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 2.1 A | 2.5A | Shielded | 52mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
PM5022-102M-RCFIXED IND 1MH 500MA 1.8 OHM SMD |
7,262 | - |
|
数据表 |
PM5022 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 500 mA | 1A | Unshielded | 1.8Ohm | 10 @ 2MHz | 252kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
SRR0735A-120MFIXED IND 12UH 1.9A 85 MOHM SMD |
5,724 | - |
|
数据表 |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 1.9 A | 1.6A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|
CLF6045NIT-2R2N-DFIXED IND 2.2UH 4.1A 20 MOHM SMD |
4,616 | - |
|
数据表 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.1 A | 4.2A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|

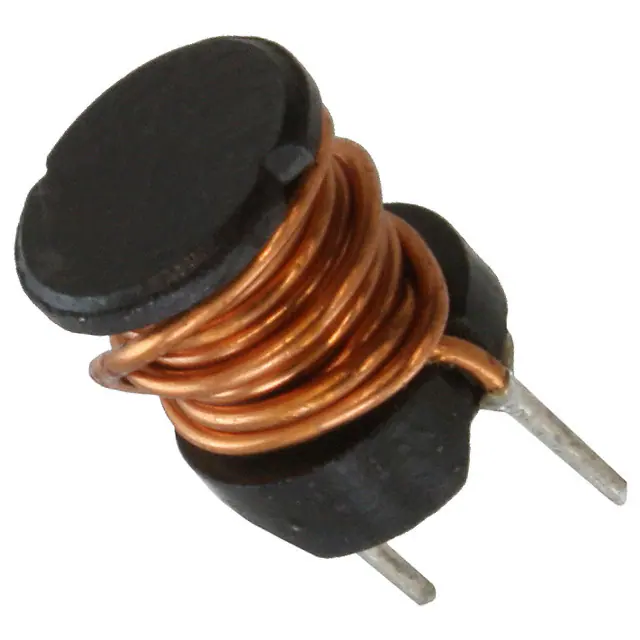

744772100FIXED IND 10UH 4.2A 40 MOHM TH |
4,543 | - |
|
数据表 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±15% | 4.2 A | 5A | Unshielded | 40mOhm Max | - | 23.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
DR1040-7R0-RFIXED IND 7UH 4.5A 20 MOHM SMD |
4,253 | - |
|
数据表 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7 µH | ±30% | 4.5 A | 4.8A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
SRU8028-470YFIXED IND 47UH 1.2A 177 MOHM SMD |
4,186 | - |
|
数据表 |
SRU8028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.2 A | 1A | Shielded | 177mOhm | 14 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.122" (3.10mm) |
|
|
SRR0745A-101MFIXED IND 100UH 700MA 450MOHM SM |
3,996 | - |
|
数据表 |
SRR0745A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 700 mA | 780mA | Shielded | 450mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
|
|
SRR0735A-220MFIXED IND 22UH 1.2A 160 MOHM SMD |
3,498 | - |
|
数据表 |
SRR0735A | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.2 A | 1.28A | Shielded | 160mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.146" (3.70mm) |
|

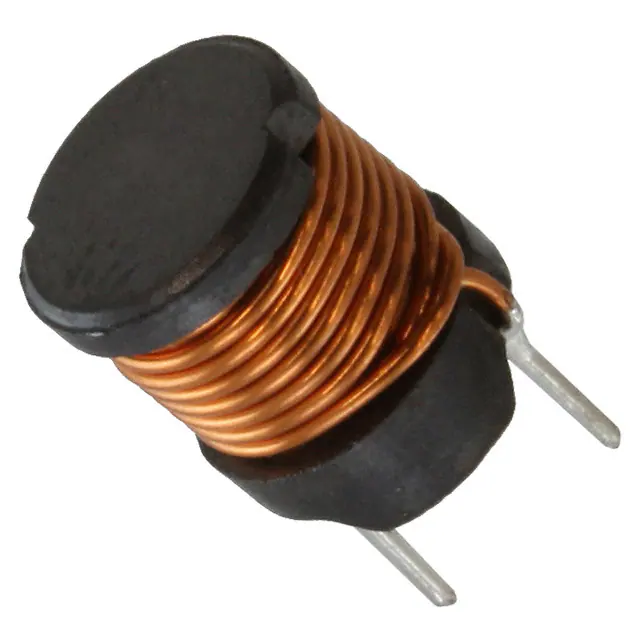

744772330FIXED IND 33UH 2A 60 MOHM TH |
3,113 | - |
|
数据表 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 2 A | 2.5A | Unshielded | 60mOhm Max | - | 10.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
PM5022-331M-RCFIXED IND 330UH 1A 580 MOHM SMD |
2,912 | - |
|
数据表 |
PM5022 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1 A | 1.8A | Unshielded | 580mOhm | 18 @ 3.5MHz | 796kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
|
PM5022-221M-RCFIXED IND 220UH 1.1A 420MOHM SMD |
2,124 | - |
|
数据表 |
PM5022 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.1 A | 2.2A | Unshielded | 420mOhm | 20 @ 4.5MHz | 796kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.720" L x 0.551" W (18.30mm x 14.00mm) | 0.272" (6.90mm) |
|
744772470FIXED IND 47UH 2.3A 120 MOHM TH |
1,421 | - |
|
数据表 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 2.3 A | 2.5A | Unshielded | 120mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
744772472FIXED IND 4.7MH 240MA 9.5 OHM TH |
1,100 | - |
|
数据表 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 240 mA | 250mA | Unshielded | 9.5Ohm Max | - | 600kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
PA4340.332ANLTFIXED IND 3.3UH 6.3A 33 MOHM SMD |
94,916 | - |
|
数据表 |
PA4340.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6.3 A | 6A | Shielded | 33mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
