固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74477120FIXED IND 100UH 1.53A 160MOHM SM |
3,057 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.53 A | 1.7A | Shielded | 160mOhm Max | - | 6.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
744710610FIXED IND 6UH 10A 6.5 MOHM TH |
2,779 | - |
|
数据表 |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±25% | 10 A | - | Unshielded | 6.5mOhm | - | 55MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.339" Dia x 1.012" L (8.60mm x 25.70mm) | - |
|
|
744771220FIXED IND 220UH 960MA 400MOHM SM |
2,432 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 960 mA | 1.2A | Shielded | 400mOhm Max | - | 3.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
744771112FIXED IND 12UH 3.91A 27 MOHM SMD |
2,354 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 3.91 A | 4.85A | Shielded | 27mOhm Max | - | 19.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
7447714560FIXED IND 56UH 2A 121 MOHM SMD |
1,890 | - |
|
数据表 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 2 A | 2.3A | Shielded | 121mOhm Max | - | 8.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
7447714102FIXED IND 1MH 430MA 2.05 OHM SMD |
1,728 | - |
|
数据表 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 430 mA | 550mA | Shielded | 2.05Ohm Max | - | 1.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
IHLP5050EZER6R8M01FIXED IND 6.8UH 11A 18.5MOHM SMD |
1,721 | - |
|
数据表 |
IHLP-5050EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 11 A | 21A | Shielded | 18.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
7447715470FIXED IND 47UH 1.95A 125MOHM SMD |
1,617 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.95 A | 2.1A | Shielded | 125mOhm Max | - | 9.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
744771118FIXED IND 18UH 3.48A 34 MOHM SMD |
1,503 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3.48 A | 4.3A | Shielded | 34mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
744771233FIXED IND 330UH 780MA 510MOHM SM |
1,305 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 780 mA | 970mA | Shielded | 510mOhm Max | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
74451147FIXED IND 47UH 500MA 0.23OHM SMD |
1,284 | - |
|
数据表 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 47 µH | ±20% | 500 mA | 140mA | Shielded | 230mOhm Max | - | 11.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
7447715220FIXED IND 22UH 2.9A 65 MOHM SMD |
1,168 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.9 A | 3.1A | Shielded | 65mOhm Max | - | 15.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
B82464P4103M000FIXED IND 10UH 3.4A 30 MOHM SMD |
1,095 | - |
|
数据表 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.4 A | 3.5A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
7447715004FIXED IND 4.7UH 5.2A 16 MOHM SMD |
1,089 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.2 A | 6.3A | Shielded | 16mOhm Max | - | 37MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
7447714056FIXED IND 5.6UH 6A 14.4 MOHM SMD |
1,036 | - |
|
数据表 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 6 A | 7.2A | Shielded | 14.4mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
74451022FIXED IND 2.2UH 1.8A 0.05OHM SMD |
980 | - |
|
数据表 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 2.2 µH | ±20% | 1.8 A | 1.08A | Shielded | 50mOhm Max | - | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
7447714150FIXED IND 15UH 3.5A 43 MOHM SMD |
865 | - |
|
数据表 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.5 A | 4.1A | Shielded | 43mOhm Max | - | 16.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
744775147FIXED IND 47UH 1.17A 180MOHM SMD |
784 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.17 A | 1.24A | Unshielded | 180mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
7447714033FIXED IND 3.3UH 7.5A 10.5MOHM SM |
779 | - |
|
数据表 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 7.5 A | 9A | Shielded | 10.5mOhm Max | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|

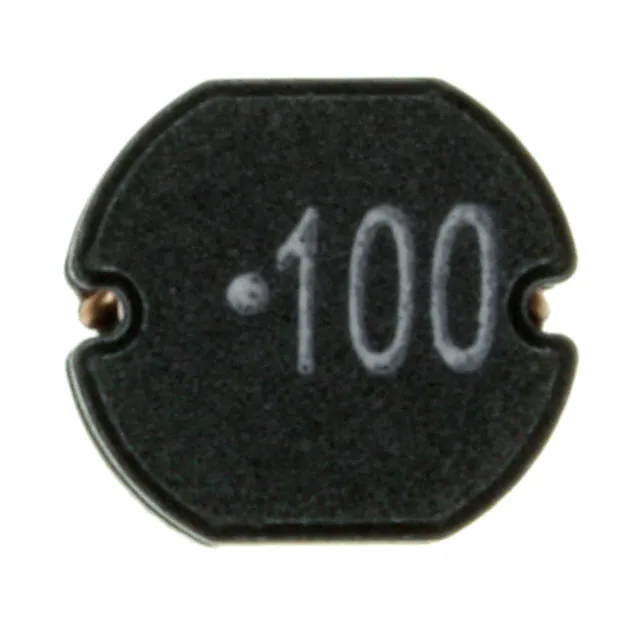

74477510FIXED IND 10UH 2.3A 70 MOHM SMD |
762 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.3 A | 2.95A | Unshielded | 70mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
