固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437324068FIXED IND 6.8UH 1.75A 0.172OHM |
3,961 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 6.8 µH | ±20% | 1.75 A | 4.75A | Shielded | 172mOhm Max | - | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
744373240047FIXED IND 470NH 6.8A 0.014OHM SM |
2,910 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 6.8 A | 19.6A | Shielded | 14mOhm Max | - | 122MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
744373240068FIXED IND 680NH 5.5A 0.019OHM SM |
1,640 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 680 nH | ±20% | 5.5 A | 14A | Shielded | 19mOhm Max | - | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
744373240022FIXED IND 220NH 9.5A 0.0073OHM |
1,195 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±30% | 9.5 A | 22.3A | Shielded | 7.3mOhm Max | - | 195MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
744373240056FIXED IND 560NH 6A 0.016OHM SMD |
1,147 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 560 nH | ±20% | 6 A | 13A | Shielded | 16mOhm Max | - | 104MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
74437324056FIXED IND 5.6UH 2A 0.125OHM SMD |
606 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±20% | 2 A | 5.1A | Shielded | 125mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
5252-RCFIXED IND 125UH 3.5A 80 MOHM TH |
4,528 | - |
|
数据表 |
5200 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 125 µH | ±20% | 3.5 A | - | Unshielded | 80mOhm Max | - | 2.25MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - |
|
IHLP5050FDERR22M01FIXED IND 220NH 53A 0.7 MOHM SMD |
311 | - |
|
数据表 |
IHLP-5050FD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 53 A | 112A | Shielded | 0.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.256" (6.50mm) |
|
74477720FIXED IND 100UH 790MA 610MOHM SM |
16,392 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 790 mA | 750mA | Shielded | 610mOhm Max | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
7447779003FIXED IND 3.3UH 3.3A 30 MOHM SMD |
12,926 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.3 A | 4.5A | Shielded | 30mOhm Max | - | 38MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

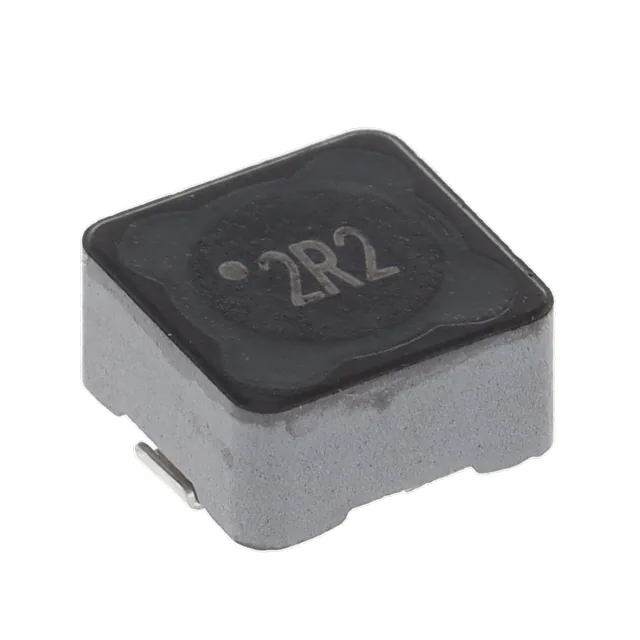

744777002FIXED IND 2.2UH 6A 20 MOHM SMD |
6,552 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6 A | 6.5A | Shielded | 20mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447779133FIXED IND 33UH 1.13A 170MOHM SMD |
5,875 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.13 A | 1.4A | Shielded | 170mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
744777233FIXED IND 330UH 390MA 1.86OHM SM |
2,673 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 390 mA | 450mA | Shielded | 1.86Ohm Max | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
768775322FIXED IND 2.2MH 150MA 7.2OHM SMD |
2,552 | - |
|
数据表 |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 150 mA | 200mA | Unshielded | 7.2Ohm Max | - | 1.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
7447779002FIXED IND 2.2UH 4.2A 20 MOHM SMD |
1,992 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 4.2 A | 6A | Shielded | 20mOhm Max | - | 43MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447779115FIXED IND 15UH 1.6A 81 MOHM SMD |
1,719 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.6 A | 2.2A | Shielded | 81mOhm Max | - | 19.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
76877530FIXED IND 1MH 300MA 3.3 OHM SMD |
1,718 | - |
|
数据表 |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 300 mA | 300mA | Unshielded | 3.3Ohm Max | - | 2.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
SLF12575T-220M4R0-HFIXED IND 22UH 4A 31.56 MOHM SMD |
1,521 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4 A | 4A | Shielded | 31.56mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
7447779122FIXED IND 22UH 1.41A 110MOHM SMD |
1,207 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.41 A | 1.7A | Shielded | 110mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
744777168FIXED IND 68UH 870MA 380MOHM SMD |
502 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 870 mA | 950mA | Shielded | 380mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
