固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IFSC1111AZER150M01FIXED IND 15UH 650MA 570MOHM SMD |
3,427 | - |
|
数据表 |
IFSC-1111AZ | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 650 mA | 400mA | Shielded | 570mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
DR74-R33-RFIXED IND 330NH 6.26A 7.4MOHM SM |
3,413 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 6.26 A | 18.4A | Shielded | 7.4mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
IFSC0806AZER2R2M01FIXED IND 2.2UH 1.3A 236MOHM SMD |
3,320 | - |
|
数据表 |
IFSC-0806AZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.3 A | 1.4A | Shielded | 236mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
74405024047FIXED IND 4.7UH 1A 270 MOHM SMD |
3,146 | - |
|
数据表 |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1 A | 1.9A | Shielded | 270mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74405024033FIXED IND 3.3UH 1.3A 163MOHM SMD |
3,139 | - |
|
数据表 |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.3 A | 2.1A | Shielded | 163mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
B82144F2473J000FIXED IND 47UH 1.7A 0.27OHM TH |
2,746 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 1.7 A | 1.4A | Unshielded | 270mOhm Max | 40 @ 252kHz | 7.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

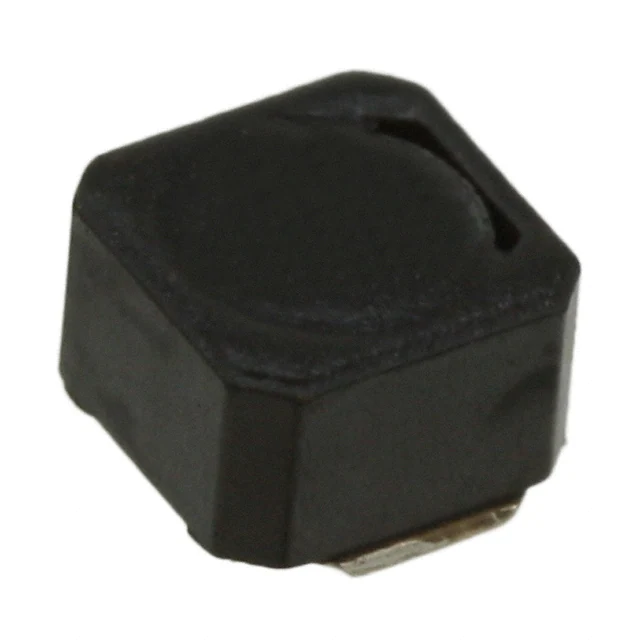

VLCF4028T-1R2N2R7-2FIXED IND 1.2UH 2.71A 32MOHM SMD |
2,470 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 2.71 A | 2.71A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
IFSC1008ABERR47M01FIXED IND 470NH 3.35A 0.0285OHM |
1,952 | - |
|
数据表 |
IFSC-1008AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 3.35 A | 3.5A | Shielded | 28.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IFSC1008ABER3R3M01FIXED IND 3.3UH 1.35A 0.155OHM |
1,795 | - |
|
数据表 |
IFSC-1008AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.35 A | 1.6A | Shielded | 155mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SLF7032T-470MR67-2PFFIXED IND 47UH 670MA 288MOHM SMD |
37,245 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 670 mA | - | Shielded | 288mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
B82141A1224J000FIXED IND 220UH 130MA 5.8 OHM TH |
15,623 | - |
|
数据表 |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 130 mA | - | Unshielded | 5.8Ohm Max | 60 @ 796kHz | 3.8MHz | - | -55°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
|
BEBE00141208R24MMAFIXED IND 240NH 5.3A 20MOHM SMD |
13,770 | - |
|
数据表 |
BEBE | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 240 nH | ±20% | 5.3 A | 6A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0.031" (0.80mm) |
|
36501E12NJTDGFIXED IND 12NH 640MA 120MOHM SMD |
12,814 | - |
|
数据表 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 12 nH | ±5% | 640 mA | - | Unshielded | 120mOhm Max | 24 @ 250MHz | 3.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
B82144F2683J000FIXED IND 68UH 1.5A 0.35OHM TH |
11,291 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 1.5 A | 1.15A | Unshielded | 350mOhm Max | 40 @ 79.6kHz | 6.1MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

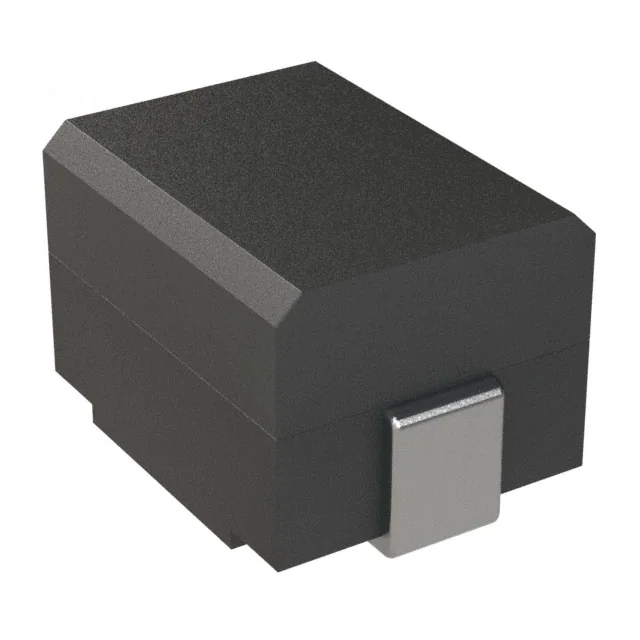

74476420FIXED IND 100UH 40MA 11 OHM SMD |
6,479 | - |
|
数据表 |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 40 mA | - | Unshielded | 11Ohm Max | 20 @ 796kHz | 11MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
74404024680FIXED IND 68UH 280MA 3 OHM SMD |
5,891 | - |
|
数据表 |
WE-LQS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 280 mA | 300mA | Shielded | 3Ohm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LBCNF2012KKT1R0MADFIXED IND 1.0UH SMD |
5,812 | - |
|
数据表 |
LBCN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1 µH | ±20% | 2.7 A | 2.7A | Unshielded | 85mOhm Max | - | - | - | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
36501E13NJTDGFIXED IND 13NH 440MA 210MOHM SMD |
5,490 | - |
|
数据表 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 13 nH | ±5% | 440 mA | - | Unshielded | 210mOhm Max | 24 @ 250MHz | 3.45GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
36501E18NJTDGFIXED IND 18NH 420MA 230MOHM SMD |
5,190 | - |
|
数据表 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 18 nH | ±5% | 420 mA | - | Unshielded | 230mOhm Max | 24 @ 250MHz | 3.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
36501E3N3JTDGFIXED IND 3.3NH 840MA 66MOHM SMD |
5,090 | - |
|
数据表 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.3 nH | ±5% | 840 mA | - | Unshielded | 66mOhm Max | 19 @ 250MHz | 7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
