固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
36501E5N6JTDGFIXED IND 5.6NH 760MA 83MOHM SMD |
1,178 | - |
|
数据表 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 5.6 nH | ±5% | 760 mA | - | Unshielded | 83mOhm Max | 20 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
RLB1314-330KLFIXED IND 33UH 1.8A 45 MOHM TH |
1,170 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.8 A | - | Unshielded | 45mOhm Max | 100 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.461" Dia (11.70mm) | 0.512" (13.00mm) |
|
|
RLB1314-220KLFIXED IND 22UH 2.2A 26 MOHM TH |
1,165 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.2 A | - | Unshielded | 26mOhm Max | 110 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.461" Dia (11.70mm) | 0.512" (13.00mm) |
|
7440320015FIXED IND 1.5UH 660MA 130MOHM SM |
1,122 | - |
|
数据表 |
WE-LQ | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 660 mA | 2.1A | Unshielded | 130mOhm Max | 20 @ 1MHz | 75MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
|
|
RLB1314-332KLFIXED IND 3.3MH 170MA 3.7 OHM TH |
1,049 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 170 mA | - | Unshielded | 3.7Ohm Max | 50 @ 252kHz | 900kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.461" Dia (11.70mm) | 0.512" (13.00mm) |
|
|
RLB1314-680KLFIXED IND 68UH 1.2A 92 MOHM TH |
1,006 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.2 A | - | Unshielded | 92mOhm Max | 80 @ 2.52MHz | 6.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.461" Dia (11.70mm) | 0.512" (13.00mm) |
|
EXL1V0402-R68-RFIXED IND 680NH 12A 8.2MOHM SMD |
11,886 | - |
|
数据表 |
EXL1V0402 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 680 nH | ±20% | 12 A | 10A | Shielded | 8.2mOhm Max | - | 73MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.083" (2.10mm) |
|
BMRA00060630R33MA1FIXED IND 330NH 20A 4.2 MOHM SMD |
9,326 | - |
|
数据表 |
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 20 A | 33A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
BMRA00060630150MA1FIXED IND 15UH 3A 122 MOHM SMD |
8,365 | - |
|
数据表 |
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 3 A | 5A | Shielded | 122mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
.jpg)
|
LPWI201610H1R5TFIXED IND 1.5UH 2.5A 100MOHM SMD |
5,986 | - |
|
数据表 |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1.5 µH | ±20% | 2.5 A | 2.8A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SBC1-3R3-232FIXED IND 3.3UH 2.3A 40 MOHM TH |
4,288 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.3 A | 2.7A | Unshielded | 40mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.217" Dia (5.50mm) | 0.335" (8.50mm) |
|
|
36501E3N6JTDGFIXED IND 3.6NH 840MA 66MOHM SMD |
3,990 | - |
|
数据表 |
3650, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.6 nH | ±5% | 840 mA | - | Unshielded | 66mOhm Max | 19 @ 250MHz | 6.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|

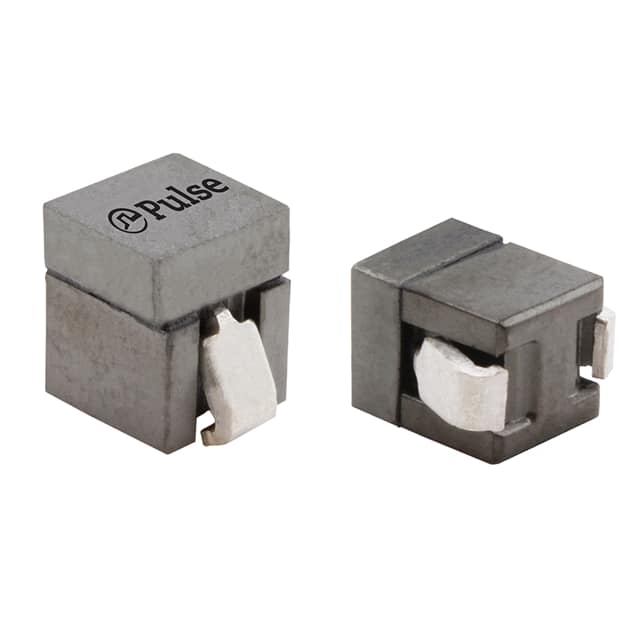

PA5190.500HLTIND PWR BEAD 50NH 48A SMD |
3,550 | - |
|
数据表 |
PA5190.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 50 nH | ±15% | 48 A | 78A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.260" (6.60mm) |
|
|
BMRA000505301R0MA1FIXED IND 1UH 7A 15 MOHM SMD |
3,025 | - |
|
数据表 |
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 7 A | 11A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.118" (3.00mm) |
|
VLCF5020T-6R8N1R1FIXED IND 6.8UH 1.11A 122MOHM SM |
2,759 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.11 A | 1.11A | Shielded | 122mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
MDMK4040T100MMFIXED IND 10UH 1.4A 330 MOHM SMD |
2,581 | - |
|
数据表 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.4 A | 1.7A | Shielded | 330mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
VLS4012HBX-6R8MFIXED IND 6.8UH 2.36A 208MOHM SM |
2,270 | - |
|
数据表 |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 2.36 A | 3.07A | Shielded | 208mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
B82144F2124J000FIXED IND 120UH 1.1A 0.6OHM TH |
2,135 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 1.1 A | 850mA | Unshielded | 600mOhm Max | 40 @ 79.6kHz | 4.6MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
|
MDMK4040T3R3MMFIXED IND 3.3UH 2.2A 130MOHM SMD |
2,036 | - |
|
数据表 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.2 A | 3.2A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
MDMK4040T1R0MFFIXED IND 1UH 3.5A 47 MOHM SMD |
1,798 | - |
|
数据表 |
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.5 A | 7.5A | Shielded | 47mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
