固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBC6-4R7-802FIXED IND 4.7UH 8A 10 MOHM TH |
644 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 8 A | 16.1A | Unshielded | 10mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
125CDMCCDS-220MCFIXED IND 22UH 6.5A 40.4MOHM SMD |
501 | - |
|
数据表 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 6.5 A | 8.5A | Shielded | 40.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
SBC6-101-172FIXED IND 100UH 1.7A 130 MOHM TH |
374 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.7 A | 3.5A | Unshielded | 130mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
MWSA1004S-100MTFIXED IND 10UH 7.8A 30 MOHM SMD |
200 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 10 µH | ±20% | 7.8 A | 8.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
0840CDMCCDS-220MCFIXED IND 22UH 3.6A 98.5MOHM SMD |
6,266 | - |
|
数据表 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 3.6 A | 4.2A | Shielded | 98.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
IHLM2525CZER1R5M01FIXED IND 1.5UH 9A 15 MOHM SMD |
3,446 | - |
|
数据表 |
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLM2525CZERR47M01FIXED IND 470NH 17.5A 4.2MOHM SM |
3,318 | - |
|
数据表 |
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 17.5 A | 26A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|

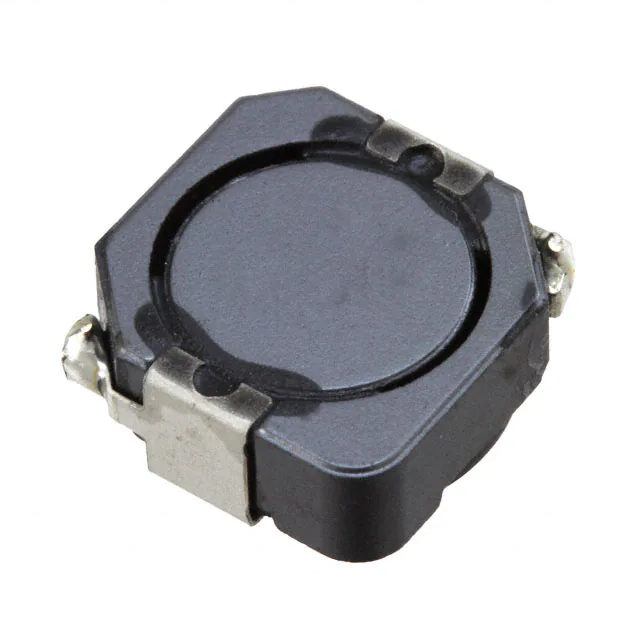

CDRH104RNP-7R0NCFIXED IND 7UH 4.5A 27 MOHM SMD |
3,225 | - |
|
数据表 |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 7 µH | ±30% | 4.5 A | 4.8A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
P0250.334NLTFIXED IND 330UH 1A 560 MOHM SMD |
2,979 | - |
|
数据表 |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±15% | 1 A | 1.9A | Unshielded | 560mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
PM4343.153NLTFIXED IND 15UH 9A 28 MOHM SMD |
2,417 | - |
|
数据表 |
PM4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 9 A | 12.5A | Shielded | 28mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
CDRH104RNP-221NCFIXED IND 220UH 700MA 756MOHM SM |
1,858 | - |
|
数据表 |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±30% | 700 mA | 920mA | Shielded | 756mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
IHLM2525CZER100M01FIXED IND 10UH 3A 105 MOHM SMD |
1,697 | - |
|
数据表 |
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 3 A | 7A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
CDRH104RNP-120NCFIXED IND 12UH 3.4A 46 MOHM SMD |
1,139 | - |
|
数据表 |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±30% | 3.4 A | 3.7A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
P0250.683NLTFIXED IND 68UH 2.3A 130 MOHM SMD |
1,131 | - |
|
数据表 |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±15% | 2.3 A | 3.5A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
CLS62NP-120NCFIXED IND 12UH 616MA 220MOHM SMD |
701 | - |
|
数据表 |
CLS | 4-SMD | Tape & Reel (TR) | Active | - | - | 12 µH | ±30% | 616 mA | - | Shielded | 220mOhm Max | - | - | - | - | 2.52 MHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.098" (2.50mm) |
|
|
MWSA1004S-1R0MTFIXED IND 1UH 19A 3.3 MOHM SMD |
615 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1 µH | ±20% | 19 A | 28A | Shielded | 3.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
PG2290.221HLTFIXED IND 220NH 75A 0.15MOHM SMD |
271 | - |
|
数据表 |
PG2290.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±10% | 75 A | 81A | Shielded | 0.15mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
IHLM2525CZERR68M01FIXED IND 680NH 15.5A 5.5MOHM SM |
2,062 | - |
|
数据表 |
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 nH | ±20% | 15.5 A | 25A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
SRP5050FA-100M1IND,6X5.7X4.8MM,10UH20%,5A,SHD |
1,288 | - |
|
数据表 |
SRP5050FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 5 A | 6.5A | Shielded | 43mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
CMLB104T-1R5MSFIXED IND 1.5UH 16A 4.2MOHM SMD |
955 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 16 A | 18A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
