固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447713470FIXED IND 47UH 1.2A 248 MOHM SMD |
746 | - |
|
数据表 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.2 A | 1.9A | Shielded | 248mOhm Max | - | 11.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
744373460082FIXED IND 820NH 9A 0.008OHM SMD |
665 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 820 nH | ±20% | 9 A | 31.9A | Shielded | 8mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
7447713330FIXED IND 33UH 1.35A 204MOHM SMD |
619 | - |
|
数据表 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.35 A | 2.2A | Shielded | 204mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
|
744373460033FIXED IND 330NH 13A 0.0039OHM SM |
439 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 330 nH | ±20% | 13 A | 47A | Shielded | 3.9mOhm Max | - | 124MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
IHLP2525EZER6R8M01FIXED IND 6.8UH 5.5A 44.6MOHM SM |
402 | - |
|
数据表 |
IHLP-2525EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 5.5 A | 5.5A | Shielded | 44.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.197" (5.00mm) |
|
IHLP6767DZER4R7M01FIXED IND 4.7UH 16A 11.2MOHM SMD |
270 | - |
|
数据表 |
IHLP-6767DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 16 A | 27A | Shielded | 11.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
|
|
7447713022FIXED IND 2.2UH 5.1A 20 MOHM SMD |
253 | - |
|
数据表 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.1 A | 8.5A | Shielded | 20mOhm Max | - | 71MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
|
7447713151FIXED IND 150UH 700MA 684MOHM SM |
131 | - |
|
数据表 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 700 mA | 1.1A | Shielded | 684mOhm Max | - | 6.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
|
744771156FIXED IND 56UH 2.01A 110MOHM SMD |
7,802 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 2.1 A | 2.35A | Shielded | 110mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
7447715330FIXED IND 33UH 2.3A 85 MOHM SMD |
5,713 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.3 A | 2.5A | Shielded | 85mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
744771127FIXED IND 27UH 2.97A 51 MOHM SMD |
4,759 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2.97 A | 3.55A | Shielded | 51mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
74451033FIXED IND 3.3UH 1.6A 0.055OHM SM |
4,406 | - |
|
数据表 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 3.3 µH | ±20% | 1.6 A | 770mA | Shielded | 55mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
7447715180FIXED IND 18UH 3.2A 51 MOHM SMD |
3,328 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3.2 A | 3.2A | Shielded | 51mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
TPI078060L047NFIXED IND 47NH 53A 0.31 MOHM SMD |
3,151 | - |
|
数据表 |
TPI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 nH | ±10% | 53 A | 90A | Shielded | 0.31mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.236" (6.00mm) |
|
|
744771182FIXED IND 82UH 1.65A 140MOHM SMD |
2,489 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 1.65 A | 1.88A | Shielded | 140mOhm Max | - | 7.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

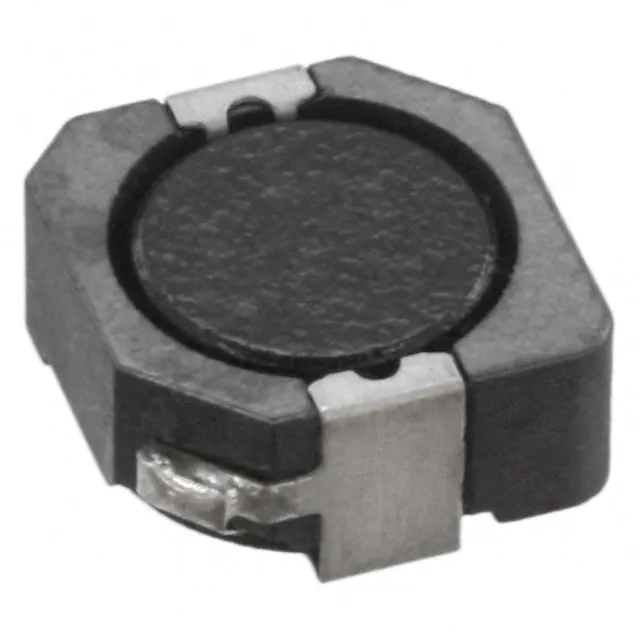

7447714471FIXED IND 470UH 600MA 1.1OHM SMD |
2,486 | - |
|
数据表 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 600 mA | 820mA | Shielded | 1.1Ohm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
744775347FIXED IND 4.7MH 200MA 13.8OHM SM |
1,927 | - |
|
数据表 |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 200 mA | 100mA | Unshielded | 13.8Ohm Max | - | 700kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.217" (5.50mm) |
|
|
7447715910FIXED IND 1UH 8.5A 7 MOHM SMD |
1,780 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 8.5 A | 13.9A | Shielded | 7mOhm Max | - | 98MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
7447714820FIXED IND 82UH 1.6A 176 MOHM SMD |
1,430 | - |
|
数据表 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 1.6 A | 1.9A | Shielded | 176mOhm Max | - | 6.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|

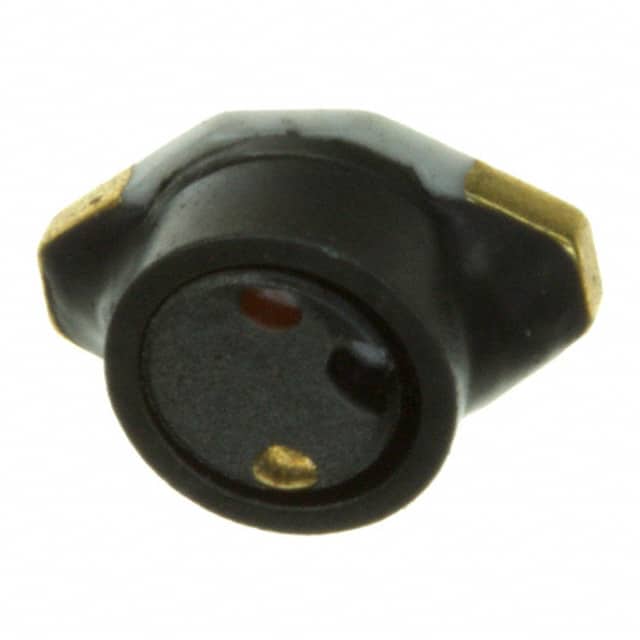

7445101FIXED IND 1UH 3A 0.04OHM SMD |
1,335 | - |
|
数据表 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 1 µH | ±20% | 3 A | 1.62A | Shielded | 40mOhm Max | - | 83MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
