固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1967LFIXED IND 1.44UH 23.8A 3.8 MOHM |
0 | - |
|
数据表 |
Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 1.44 µH | ±20% | 23.8 A | - | Unshielded | 3.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.906" Dia x 0.492" W (23.00mm x 12.50mm) | - |
|

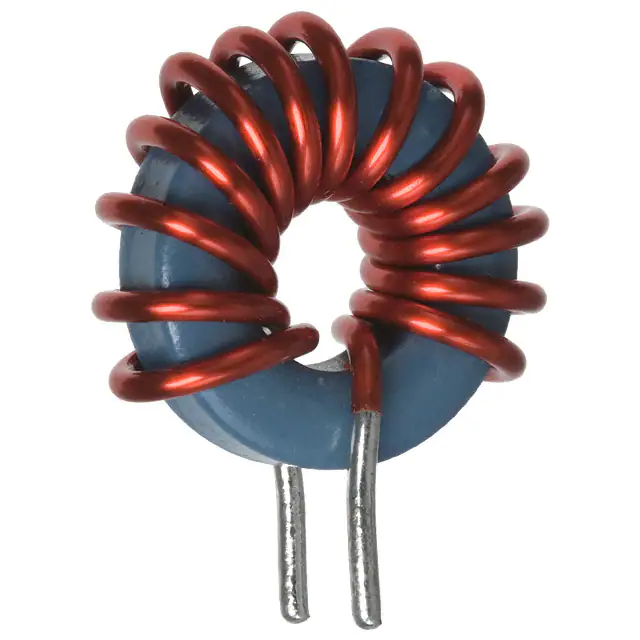

PA0431LFIXED IND 7.8UH 20.5A 5.5MOHM TH |
0 | - |
|
数据表 |
Bare Coil | Radial, Vertical (Open) | Bag | Active | Toroidal | - | 7.8 µH | ±20% | 20.5 A | - | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.874" Dia x 0.374" W (22.20mm x 9.50mm) | - |
|
PE-53662FIXED IND 4.9UH 7.8A 12.4MOHM SM |
0 | - |
|
数据表 |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 4.9 µH | - | 7.8 A | - | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PE-53651FIXED IND 5.1UH 5.4A 17.7MOHM SM |
0 | - |
|
数据表 |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 5.1 µH | - | 5.4 A | - | Unshielded | 17.7mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PE-53652FIXED IND 9UH 5.5A 28 MOHM SMD |
0 | - |
|
数据表 |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 9 µH | - | 5.5 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PE-53634FIXED IND 50UH 2.6A 133 MOHM SMD |
0 | - |
|
数据表 |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 50 µH | - | 2.6 A | - | Unshielded | 133mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
|
PE-53604FIXED IND 58.1UH 1.3A 290MOHM SM |
0 | - |
|
数据表 |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 58.1 µH | - | 1.3 A | - | Unshielded | 290mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53606FIXED IND 114UH 940MA 405MOHM SM |
0 | - |
|
数据表 |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 114 µH | - | 940 mA | - | Unshielded | 405mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
PE-53611FIXED IND 383UH 720MA 862MOHM SM |
0 | - |
|
数据表 |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | 383 µH | - | 720 mA | - | Unshielded | 862mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53820SFIXED IND 115UH 670MA 400MOHM SM |
0 | - |
|
数据表 |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | 115 µH | ±20% | 670 mA | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53821SFIXED IND 78UH 820MA 300MOHM SMD |
0 | - |
|
数据表 |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | 78 µH | ±20% | 820 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53932SFIXED IND 37UH 2.24A 100MOHM SMD |
0 | - |
|
数据表 |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | 37 µH | ±20% | 2.24 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
PE-53933SFIXED IND 24UH 2.74A 70 MOHM SMD |
0 | - |
|
数据表 |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | 24 µH | ±20% | 2.74 A | - | Shielded | 70mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
PE-53935SFIXED IND 250UH 1.5A 230MOHM SMD |
0 | - |
|
数据表 |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | 250 µH | ±20% | 1.5 A | - | Shielded | 230mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
|
PE-54036SFIXED IND 168UH 1.81A 180MOHM SM |
0 | - |
|
数据表 |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | 168 µH | ±20% | 1.81 A | - | Shielded | 180mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
|
PE-54039SFIXED IND 53UH 3A 80 MOHM SMD |
0 | - |
|
数据表 |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | 53 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
|
PE-54041SFIXED IND 25UH 3A 40 MOHM SMD |
0 | - |
|
数据表 |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | 25 µH | ±20% | 3 A | - | Shielded | 40mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
|
PE-54044SFIXED IND 77UH 3A 80 MOHM SMD |
0 | - |
|
数据表 |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | 77 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
SLF7028T-6R8M1R3-PFFIXED IND 6.8UH 1.3A 59 MOHM SMD |
0 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.3 A | - | Shielded | 59mOhm | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
SLF7028T-100M1R1-PFFIXED IND 10UH 1.1A 83 MOHM SMD |
0 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | - | Shielded | 83mOhm | - | - | - | -20°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
