固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744028100FIXED IND 10UH 600MA 670MOHM SMD |
0 | - |
|
数据表 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 600 mA | 450mA | Shielded | 670mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.047" (1.20mm) |
|
B82464Z4102MFIXED IND 1UH 7.5A 7 MOHM SMD |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 7.5 A | 10A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

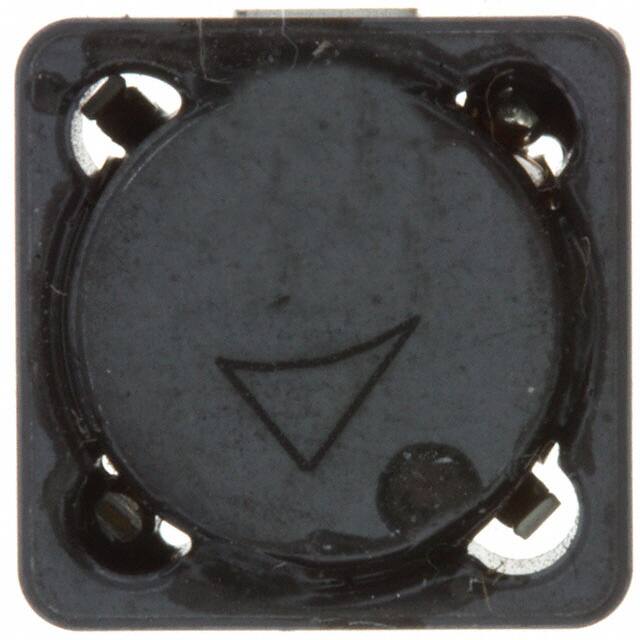

B82464Z4104MFIXED IND 100UH 1.05A 220MOHM SM |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.05 A | 1.15A | Shielded | 220mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

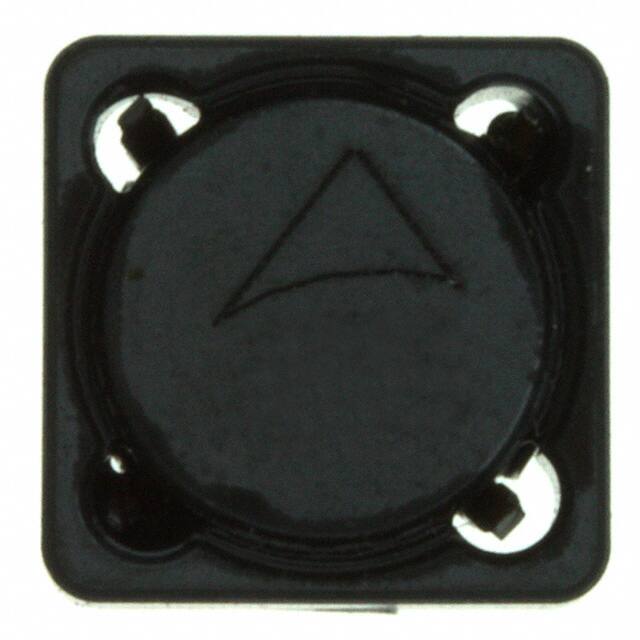

B82464Z4105MFIXED IND 1MH 340MA 2.2 OHM SMD |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 340 mA | 350mA | Shielded | 2.2Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82464Z4152MFIXED IND 1.5UH 7A 9 MOHM SMD |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 7 A | 8.5A | Shielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82464Z4153MFIXED IND 15UH 2.75A 40 MOHM SMD |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.75 A | 3.1A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82464Z4154MFIXED IND 150UH 850MA 320MOHM SM |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 850 mA | 900mA | Shielded | 320mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

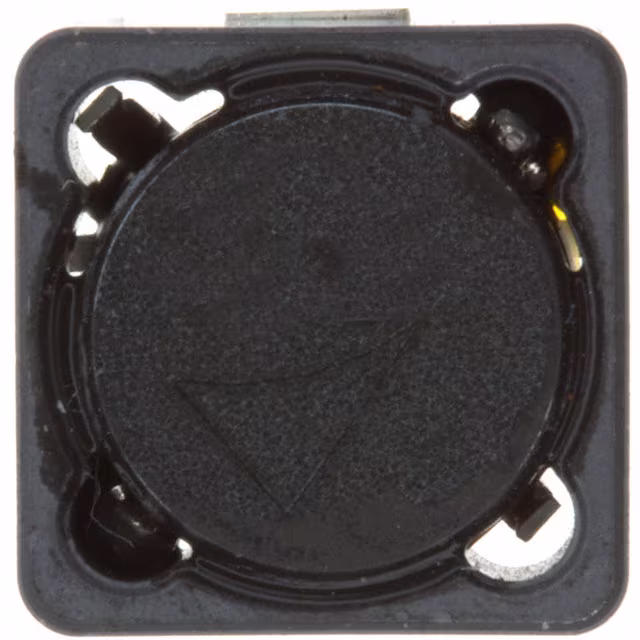

B82464Z4223MFIXED IND 22UH 2.25A 52 MOHM SMD |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.25 A | 2.5A | Shielded | 52mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

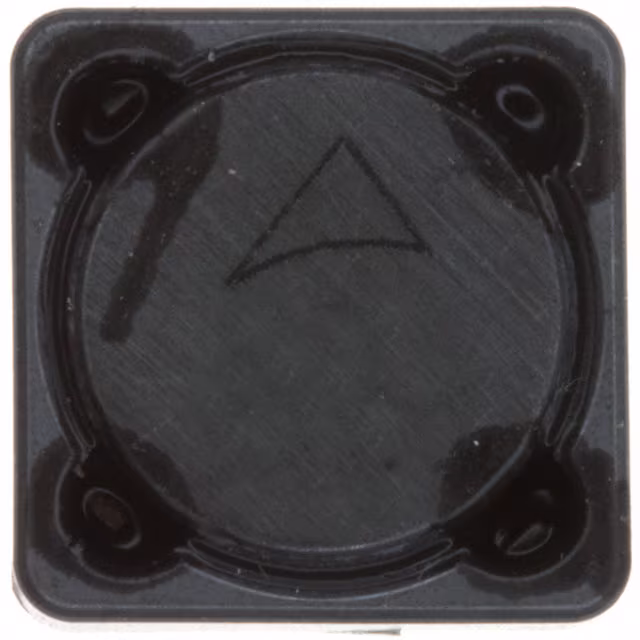

B82464Z4224MFIXED IND 220UH 700MA 440MOHM SM |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 700 mA | 750mA | Shielded | 440mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

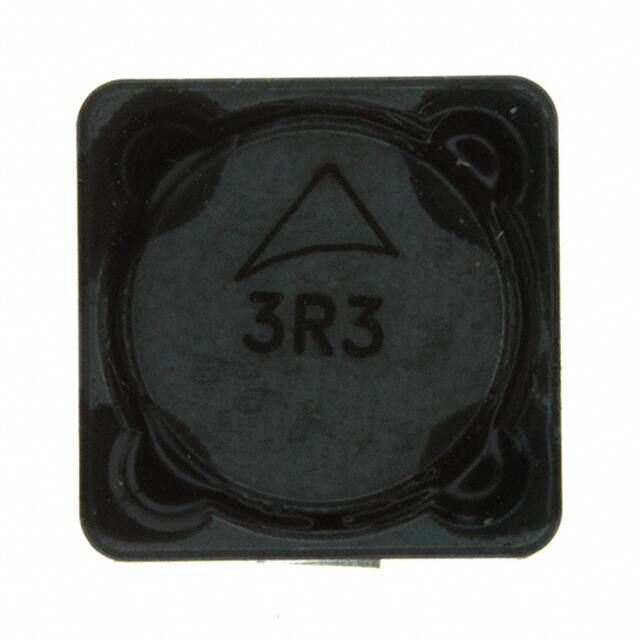

B82464Z4332MFIXED IND 3.3UH 5.5A 12 MOHM SMD |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5.5 A | 5.9A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

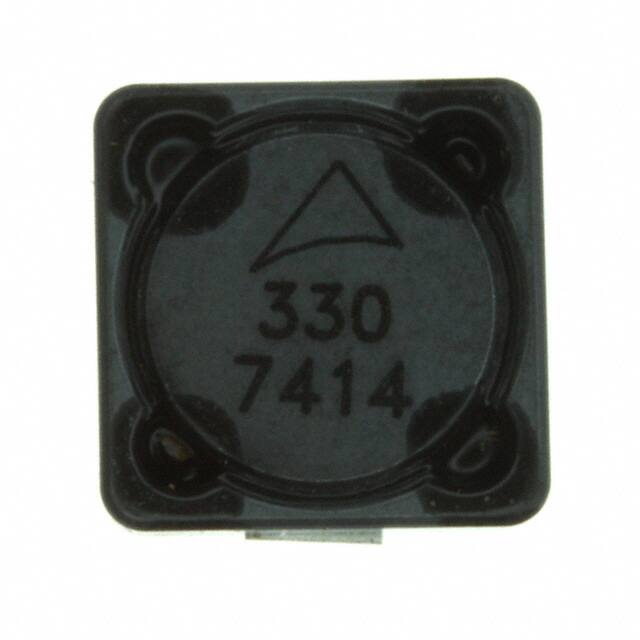

B82464Z4333MFIXED IND 33UH 1.85A 75 MOHM SMD |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.85 A | 2.1A | Shielded | 75mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82464Z4334MFIXED IND 330UH 590MA 650MOHM SM |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 590 mA | 650mA | Shielded | 650mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

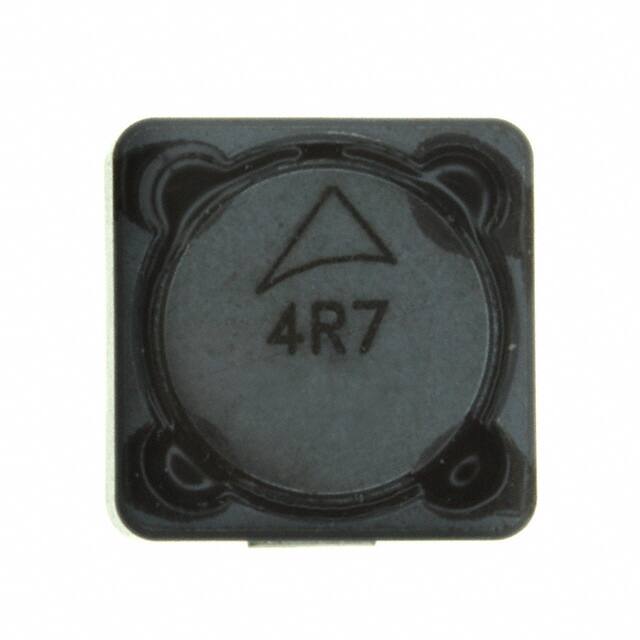

B82464Z4472MFIXED IND 4.7UH 4.9A 15 MOHM SMD |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.9 A | 5.2A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
B82464Z4474MFIXED IND 470UH 500MA 930MOHM SM |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 500 mA | 550mA | Shielded | 930mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82464Z4684MFIXED IND 680UH 420MA 1.3OHM SMD |
0 | - |
|
数据表 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 460mA | Shielded | 1.3Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
LDS0705-1R5M-RFIXED IND 1.5UH 6.17A 6.1MOHM SM |
0 | - |
|
数据表 |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6.17 A | 6.67A | Shielded | 6.1mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-330M-RFIXED IND 33UH 1.48A 107MOHM SMD |
0 | - |
|
数据表 |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.48 A | 1.4A | Shielded | 107mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-331M-RFIXED IND 330UH 470MA 1.06OHM SM |
0 | - |
|
数据表 |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 470 mA | 438mA | Shielded | 1.06Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-3R3M-RFIXED IND 3.3UH 4.19A 13MOHM SMD |
0 | - |
|
数据表 |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.19 A | 4.62A | Shielded | 13mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-471M-RFIXED IND 470UH 387MA 1.56OHM SM |
0 | - |
|
数据表 |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 387 mA | 368mA | Shielded | 1.56Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
