固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SL1215-150K3R3-PFFIXED IND 15UH 3.3A 22 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 15 µH | ±10% | 3.3 A | 8.9A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-151K1R3-PFFIXED IND 150UH 1.3A 150 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 150 µH | ±10% | 1.3 A | 2.8A | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-152KR42-PFFIXED IND 1.5MH 420MA 1.4 OHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 1.5 mH | ±10% | 420 mA | 900mA | Unshielded | 1.4Ohm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-220K2R8-PFFIXED IND 22UH 2.8A 31 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 22 µH | ±10% | 2.8 A | 7.2A | Unshielded | 31mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-221K1R0-PFFIXED IND 220UH 1A 260 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 220 µH | ±10% | 1 A | 1.9A | Unshielded | 260mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|

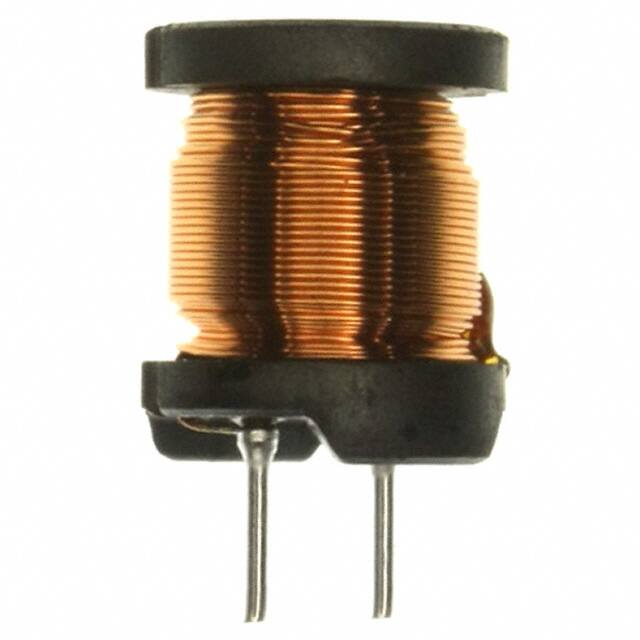

SL1215-222KR31-PFFIXED IND 2.2MH 310MA 2.5 OHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 2.2 mH | ±10% | 310 mA | 700mA | Unshielded | 2.5Ohm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-330K2R3-PFFIXED IND 33UH 2.3A 44 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 33 µH | ±10% | 2.3 A | 6A | Unshielded | 44mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-331KR91-PFFIXED IND 330UH 910MA 320MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 330 µH | ±10% | 910 mA | 1.8A | Unshielded | 320mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-470K2R0-PFFIXED IND 47UH 2A 59 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 47 µH | ±10% | 2 A | 4.9A | Unshielded | 59mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-471KR72-PFFIXED IND 470UH 720MA 480MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 470 µH | ±10% | 720 mA | 1.6A | Unshielded | 480mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|

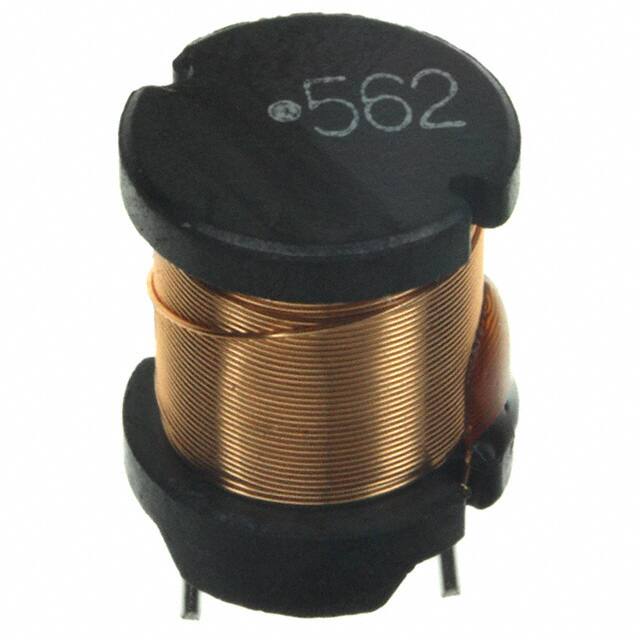

SL1215-562KR20-PFFIXED IND 5.6MH 200MA 6.4 OHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 5.6 mH | ±10% | 200 mA | 470mA | Unshielded | 6.4Ohm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1215-680K1R8-PFFIXED IND 68UH 1.8A 73 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 68 µH | ±10% | 1.8 A | 4.2A | Unshielded | 73mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|

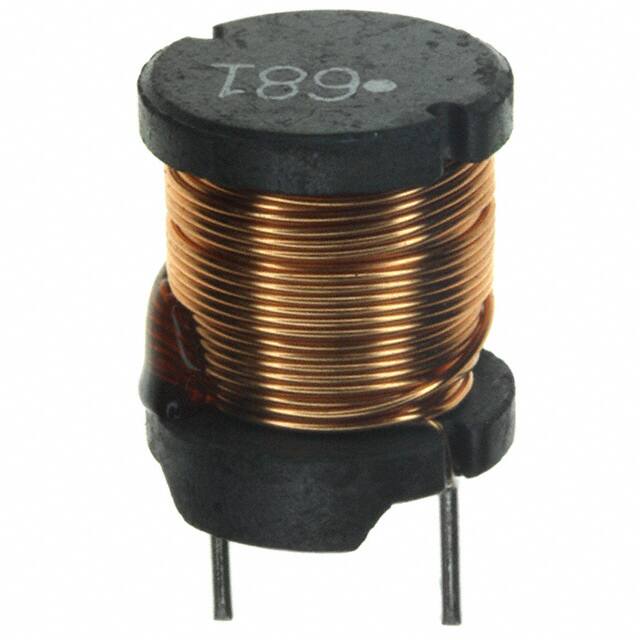

SL1215-681KR58-PFFIXED IND 680UH 580MA 730MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 680 µH | ±10% | 580 mA | 1.3A | Unshielded | 730mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SL1720-102KR90-PFFIXED IND 1MH 900MA 540 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 1 mH | ±10% | 900 mA | 1.1A | Unshielded | 540mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.665" Dia (16.90mm) | 0.827" (21.00mm) |
|
SL1720-151K2R1-PFFIXED IND 150UH 2.1A 100 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 150 µH | ±10% | 2.1 A | 3A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.665" Dia (16.90mm) | 0.827" (21.00mm) |
|
SL1720-152KR72-PFFIXED IND 1.5MH 720MA 860MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 1.5 mH | ±10% | 720 mA | 980mA | Unshielded | 860mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.665" Dia (16.90mm) | 0.827" (21.00mm) |
|

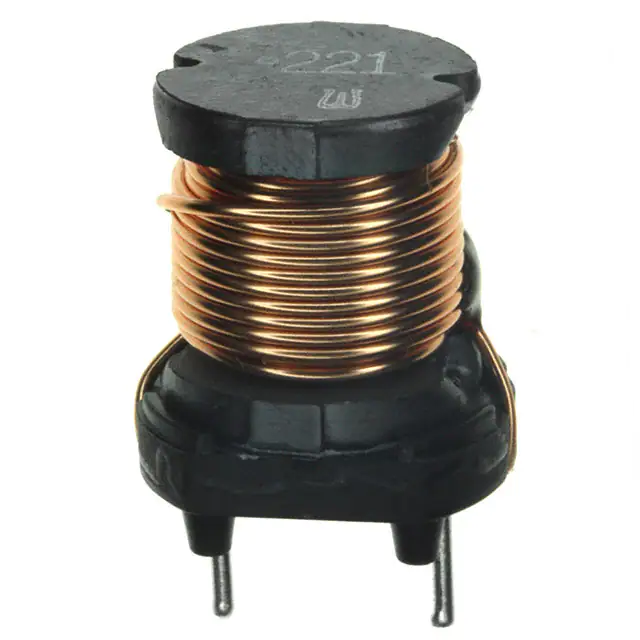

SL1720-221K1R8-PFFIXED IND 220UH 1.8A 130 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 220 µH | ±10% | 1.8 A | 2.6A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.665" Dia (16.90mm) | 0.827" (21.00mm) |
|
SL1720-222KR60-PFFIXED IND 2.2MH 600MA 1.22OHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 2.2 mH | ±10% | 600 mA | 810mA | Unshielded | 1.22Ohm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.665" Dia (16.90mm) | 0.827" (21.00mm) |
|
SL1720-331K1R5-PFFIXED IND 330UH 1.5A 180 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 330 µH | ±10% | 1.5 A | 2A | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.665" Dia (16.90mm) | 0.827" (21.00mm) |
|
SL1720-471K1R3-PFFIXED IND 470UH 1.3A 270 MOHM TH |
0 | - |
|
数据表 |
SL | Radial, Vertical Cylinder (Open) | Tray | Obsolete | Wirewound | - | 470 µH | ±10% | 1.3 A | 1.7A | Unshielded | 270mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Through Hole | - | 0.665" Dia (16.90mm) | 0.827" (21.00mm) |
