固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC63LCB-150FIXED IND 15UH 2.22A 79 MOHM SMD |
0 | - |
|
数据表 |
SC63LCB | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 2.22 A | 930mA | Shielded | 79mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SC63LCB-180FIXED IND 18UH 1.99A 100MOHM SMD |
0 | - |
|
数据表 |
SC63LCB | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 1.99 A | 850mA | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SC63LCB-220FIXED IND 22UH 1.5A 119 MOHM SMD |
0 | - |
|
数据表 |
SC63LCB | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.5 A | 770mA | Shielded | 119mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SC63LCB-270FIXED IND 27UH 1.42A 150MOHM SMD |
0 | - |
|
数据表 |
SC63LCB | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 1.42 A | 700mA | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SC63LCB-390FIXED IND 39UH 1.21A 188MOHM SMD |
0 | - |
|
数据表 |
SC63LCB | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 1.21 A | 580mA | Shielded | 188mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SC63LCB-3R6FIXED IND 3.6UH 4.15A 27MOHM SMD |
0 | - |
|
数据表 |
SC63LCB | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.6 µH | ±30% | 4.15 A | 1.89A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SC63LCB-680FIXED IND 68UH 920MA 338MOHM SMD |
0 | - |
|
数据表 |
SC63LCB | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 920 mA | 440mA | Shielded | 338mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.118" (3.00mm) |
|

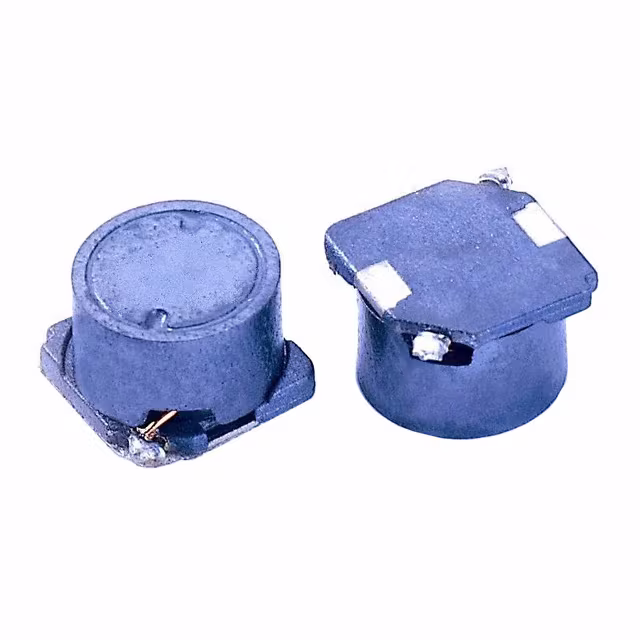

SCB75C-100FIXED IND 10UH 2.6A 50 MOHM SMD |
0 | - |
|
数据表 |
SCB75C | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.6 A | 1.68A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.291" L x 0.291" W (7.40mm x 7.40mm) | 0.217" (5.50mm) |
|
|
SCB75C-1R0FIXED IND 1UH 7A 23 MOHM SMD |
0 | - |
|
数据表 |
SCB75C | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 7 A | 2.88A | Shielded | 23mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.291" L x 0.291" W (7.40mm x 7.40mm) | 0.217" (5.50mm) |
|
|
SCB75C-470FIXED IND 47UH 1.27A 230MOHM SMD |
0 | - |
|
数据表 |
SCB75C | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.27 A | 760mA | Shielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.291" L x 0.291" W (7.40mm x 7.40mm) | 0.217" (5.50mm) |
|
|
SCB75C-471FIXED IND 470UH 420MA 1.9OHM SMD |
0 | - |
|
数据表 |
SCB75C | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 420 mA | 250mA | Shielded | 1.9Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.291" L x 0.291" W (7.40mm x 7.40mm) | 0.217" (5.50mm) |
|

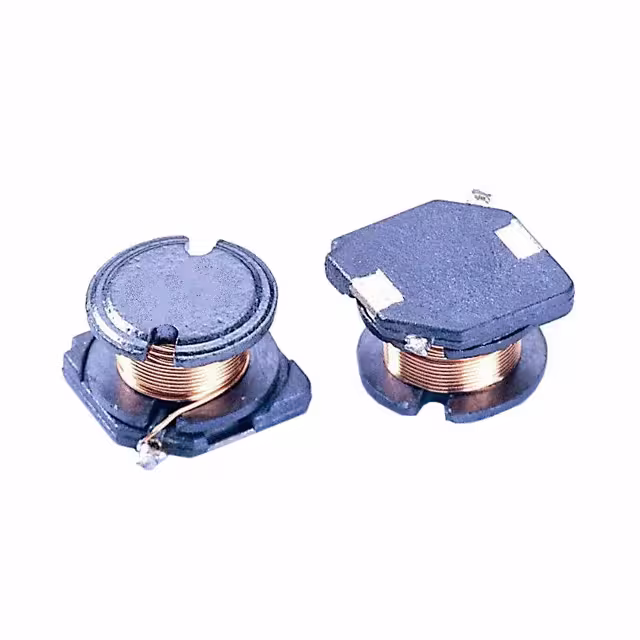

SCB75F-4R7FIXED IND 4.7UH 3.5A 49 MOHM SMD |
0 | - |
|
数据表 |
SCB75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 3.5 A | 1.88A | Unshielded | 49mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.291" L x 0.291" W (7.40mm x 7.40mm) | 0.217" (5.50mm) |
|
SCEP125-100FIXED IND 10UH 9A 13.5 MOHM SMD |
0 | - |
|
数据表 |
SCEP125 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 9 A | 5A | Shielded | 13.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
SCMD4D10-6R8FIXED IND 6.8UH 800MA 380MOHM SM |
0 | - |
|
数据表 |
SCMD4D10 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 800 mA | 1.1A | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.197" W (6.40mm x 5.00mm) | 0.047" (1.20mm) |
|

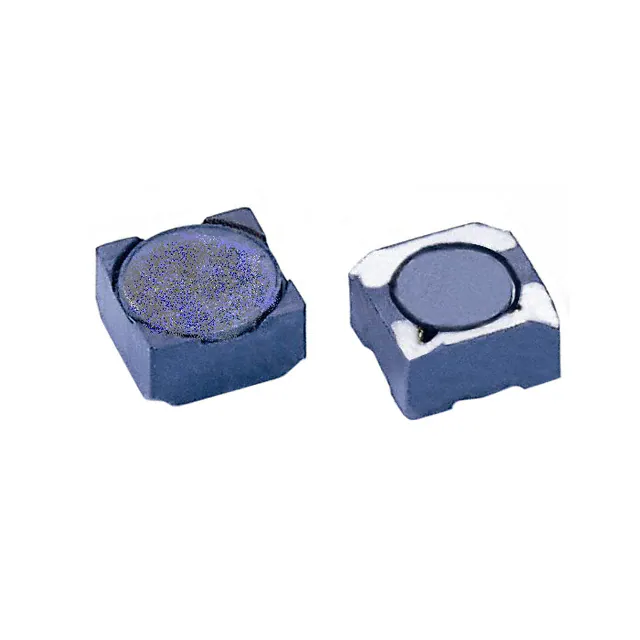

SCMS5D25-100FIXED IND 10UH 1.6A 120 MOHM SMD |
0 | - |
|
数据表 |
SCMS5D25 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.6 A | 1.05A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.110" (2.80mm) |
|
|
SCMS5D25-1R8FIXED IND 1.8UH 3.6A 30 MOHM SMD |
0 | - |
|
数据表 |
SCMS5D25 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±30% | 3.6 A | 2.5A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.110" (2.80mm) |
|
|
SCMS5D25-4R7FIXED IND 4.7UH 2.21A 56MOHM SMD |
0 | - |
|
数据表 |
SCMS5D25 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 2.21 A | 1.5A | Shielded | 56mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.110" (2.80mm) |
|

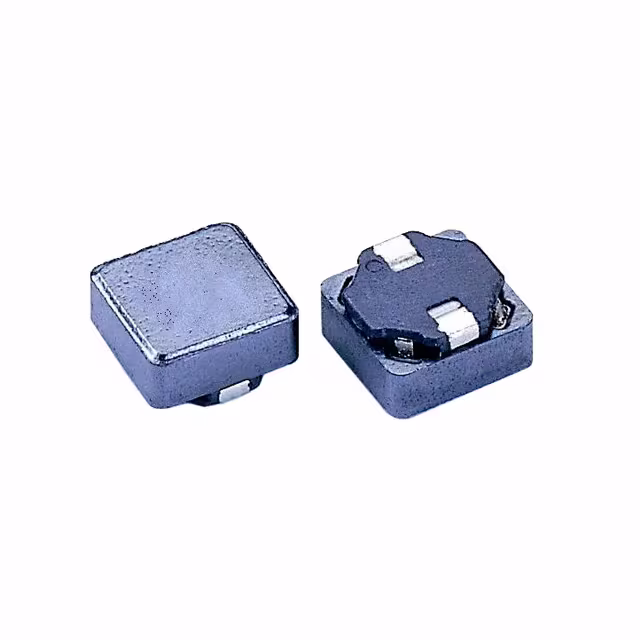

SCPH73B-150FIXED IND 15UH 1.62A 130MOHM SMD |
0 | - |
|
数据表 |
SCPH73B | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.62 A | 1.2A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.150" (3.80mm) |
|
|
SCPH73B-680FIXED IND 68UH 840MA 520MOHM SMD |
0 | - |
|
数据表 |
SCPH73B | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 840 mA | 540mA | Shielded | 520mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.150" (3.80mm) |
|
SCR125B-331FIXED IND 330UH 1.33A 800MOHM SM |
0 | - |
|
数据表 |
SCR125B | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 1.33 A | 570mA | Shielded | 800mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.516" L x 0.476" W (13.10mm x 12.10mm) | 0.232" (5.90mm) |
