固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F126AI-RCFIXED IND 1.2UH 1.666A 72MOHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 1.2 µH | ±10% | 1.666 A | - | Unshielded | 72mOhm Max | 45 @ 7.9MHz | 118MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|

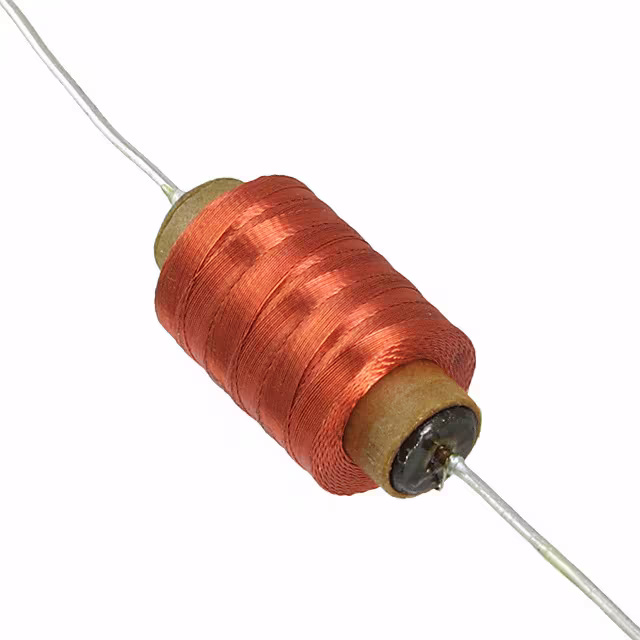

70F151AF-RCFIXED IND 150MH 44MA 328 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 mH | ±5% | 44 mA | - | Unshielded | 328Ohm Max | 49 @ 25kHz | 77kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.500" Dia x 0.880" L (12.70mm x 22.35mm) | - |
|
|
70F562AF-RCFIXED IND 56MH 36MA 189 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 56 mH | ±5% | 36 mA | - | Unshielded | 189Ohm Max | 57 @ 79kHz | 188kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.400" Dia x 0.630" L (10.16mm x 16.00mm) | - |
|
|
70F823AI-RCFIXED IND 8.2MH 40MA 92.4 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 8.2 mH | ±5% | 40 mA | - | Unshielded | 92.4Ohm Max | 48 @ 250kHz | 600kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.330" Dia x 0.380" L (8.38mm x 9.65mm) | - |
|
|
70F154AI-RCFIXED IND 150UH 135MA 8.16OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 150 µH | ±5% | 135 mA | - | Unshielded | 8.16Ohm Max | 47 @ 790kHz | 3MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
|
70F564AI-RCFIXED IND 560UH 88MA 19.2 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 560 µH | ±5% | 88 mA | - | Unshielded | 19.2Ohm Max | 41 @ 790kHz | 1.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.190" Dia x 0.250" L (4.83mm x 6.35mm) | - |
|
|
70F156AI-RCFIXED IND 1.5UH 1.443A 96MOHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 1.5 µH | ±10% | 1.443 A | - | Unshielded | 96mOhm Max | 42 @ 7.9MHz | 102MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
|
70F182AI-RCFIXED IND 18MH 44MA 128 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 18 mH | ±5% | 44 mA | - | Unshielded | 128Ohm Max | 49 @ 79kHz | 290kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.320" Dia x 0.500" L (8.13mm x 12.70mm) | - |
|
|
70F826AI-RCFIXED IND 8.2UH 518MA 744MOHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 8.2 µH | ±10% | 518 mA | - | Unshielded | 744mOhm Max | 37 @ 7.9MHz | 41MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
|
|
70F184AI-RCFIXED IND 180UH 135MA 8.16OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 180 µH | ±5% | 135 mA | - | Unshielded | 8.16Ohm Max | 48 @ 790kHz | 2.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|
|
70F186AI-RCFIXED IND 1.8UH 1.443A 96MOHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 1.8 µH | ±10% | 1.443 A | - | Unshielded | 96mOhm Max | 31 @ 7.9MHz | 89MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
70F204AI-RCFIXED IND 200UH 120MA 10.3OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 200 µH | ±5% | 120 mA | - | Unshielded | 10.3Ohm Max | 47 @ 790kHz | 2.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|
|
70F913AI-RCFIXED IND 9.1MH 39MA 98.4 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 9.1 mH | ±5% | 39 mA | - | Unshielded | 98.4Ohm Max | 52 @ 250kHz | 560kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.330" Dia x 0.380" L (8.38mm x 9.65mm) | - |
|
|
70F227AP-RCFIXED IND 220NH 2.294A 380MOHM |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 220 nH | ±20% | 2.294 A | - | Unshielded | 380mOhm Max | 48 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.140" Dia x 0.310" L (3.56mm x 7.87mm) | - |
|
|
70F914AI-RCFIXED IND 910UH 79MA 24 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 910 µH | ±5% | 79 mA | - | Unshielded | 24Ohm Max | 32 @ 790kHz | 1.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.220" Dia x 0.250" L (5.59mm x 6.35mm) | - |
|
|
70F271AF-RCFIXED IND 270MH 36MA 490 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 270 mH | ±5% | 36 mA | - | Unshielded | 490Ohm Max | 53 @ 25kHz | 62kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.570" Dia x 0.880" L (14.48mm x 22.35mm) | - |
|
|
70F915AI-RCFIXED IND 91UH 156MA 4.92 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 91 µH | ±5% | 156 mA | - | Unshielded | 4.92Ohm Max | 41 @ 2.5MHz | 6.7MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.180" Dia x 0.250" L (4.57mm x 6.35mm) | - |
|
70F272AF-RCFIXED IND 27MH 45MA 120 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 mH | ±5% | 45 mA | - | Unshielded | 120Ohm Max | 61 @ 79kHz | 244kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.350" Dia x 0.630" L (8.89mm x 16.00mm) | - |
|
|
70F273AI-RCFIXED IND 2.7MH 57MA 45.6 OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 2.7 mH | ±5% | 57 mA | - | Unshielded | 45.6Ohm Max | 50 @ 250kHz | 880kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.260" Dia x 0.380" L (6.60mm x 9.65mm) | - |
|
|
70F304AI-RCFIXED IND 300UH 106MA 13.2OHM TH |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 300 µH | ±5% | 106 mA | - | Unshielded | 13.2Ohm Max | 46 @ 790kHz | 2.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
