固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR02EV330KFIXED IND 33UH 130MA 3.4 OHM TH |
0 | - |
|
数据表 |
IR | Axial | Tape & Reel (TR) | Obsolete | - | Ferrite | 33 µH | ±10% | 130 mA | - | Unshielded | 3.4Ohm Max | 45 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.260" L (3.05mm x 6.60mm) | - |
|
PM1008S-5R6M-RCFIXED IND 5.6UH 1A 400 MOHM SMD |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 1 A | - | Shielded | 400mOhm Max | 38 @ 1MHz | 150MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
|
|
PM1008S-100M-RCFIXED IND 10UH 780MA 1 OHM SMD |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 780 mA | - | Shielded | 1Ohm Max | 38 @ 1MHz | 105MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
|
|
PM1008S-1R0M-RCFIXED IND 1UH 3A 50 MOHM SMD |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3 A | - | Shielded | 50mOhm Max | 35 @ 1MHz | 344MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
|
|
PM1008S-1R8M-RCFIXED IND 1.8UH 2A 90 MOHM SMD |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 2 A | - | Shielded | 90mOhm Max | 35 @ 1MHz | 225MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
|
|
PM1008S-2R7M-RCFIXED IND 2.7UH 1.3A 140MOHM SMD |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 1.3 A | - | Shielded | 140mOhm Max | 38 @ 1MHz | 185MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.150" L x 0.150" W (3.81mm x 3.81mm) | 0.108" (2.74mm) |
|
CS321613-150KFIXED IND 15UH 25MA 1.1 OHM SMD |
0 | - |
|
数据表 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 15 µH | ±10% | 25 mA | - | Shielded | 1.1Ohm Max | 45 @ 1MHz | 19MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-2R7KFIXED IND 2.7UH 50MA 600MOHM SMD |
0 | - |
|
数据表 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.7 µH | ±10% | 50 mA | - | Shielded | 600mOhm Max | 80 @ 10MHz | 45MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|

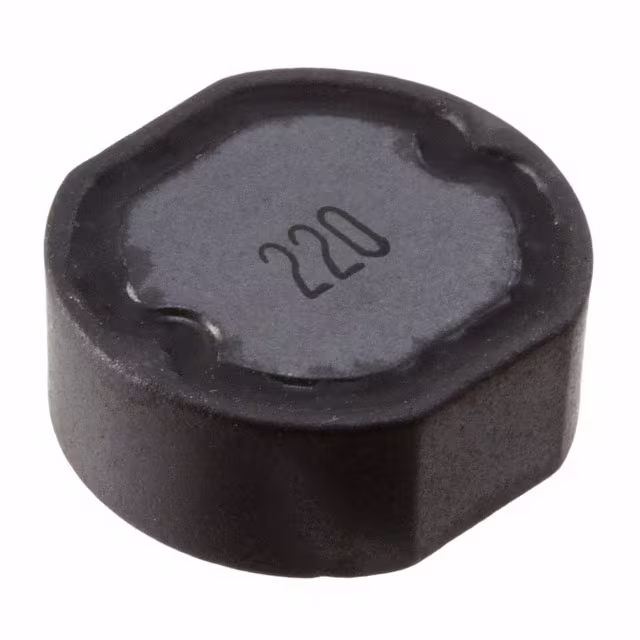

PM125S-220M-RCFIXED IND 22UH 2.2A 70 MOHM SMD |
0 | - |
|
数据表 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.2 A | 4.04A | Shielded | 70mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|

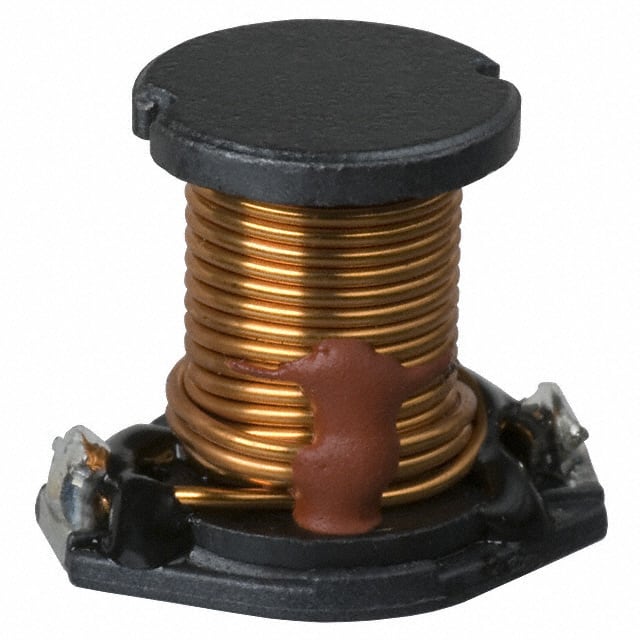

PM3340-681M-RCFIXED IND 680UH 200MA 1.2OHM SMD |
0 | - |
|
数据表 |
PM3340 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 200 mA | 1A | Unshielded | 1.2Ohm Max | - | - | - | -55°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.402" W (13.00mm x 10.20mm) | 0.453" (11.50mm) |
|
SDE6603-102MFIXED IND 1MH 70MA 13.8 OHM SMD |
0 | - |
|
数据表 |
SDE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 70 mA | 100mA | Unshielded | 13.8Ohm Max | - | 2MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CS321613-R15KFIXED IND 150NH 250MA 200MOHM SM |
0 | - |
|
数据表 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 150 nH | ±10% | 250 mA | - | Shielded | 200mOhm Max | 50 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
5220-RCFIXED IND 8.8UH 10A 21 MOHM TH |
0 | - |
|
数据表 |
5200 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 8.8 µH | ±20% | 10 A | - | Unshielded | 21mOhm Max | - | 64MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | - |
|
5604-RCFIXED IND 50UH 6.6A 34 MOHM TH |
0 | - |
|
数据表 |
5600 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 6.6 A | - | Unshielded | 34mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.830" Dia (21.08mm) | 0.910" (23.11mm) |
|
RL110S-101L-RCFIXED IND 100UH 1.2A 190 MOHM TH |
0 | - |
|
数据表 |
RL110S | Radial, Vertical Cylinder, 4 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±15% | 1.2 A | - | Shielded | 190mOhm Max | 30 @ 790kHz | 4.4MHz | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
5800-221-TR-RCFIXED IND 220UH 500MA 580MOHM TH |
0 | - |
|
数据表 |
5800 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 500 mA | 800mA | Unshielded | 580mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
4629-RCFIXED IND 55UH 500MA 1 OHM TH |
0 | - |
|
数据表 |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 55 µH | ±5% | 500 mA | - | Unshielded | 1Ohm Max | 72 @ 2.52MHz | 17MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4630-RCFIXED IND 62UH 475MA 1.2 OHM TH |
0 | - |
|
数据表 |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 62 µH | ±5% | 475 mA | - | Unshielded | 1.2Ohm Max | 83 @ 2.52MHz | 16MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4642-RCFIXED IND 100UH 160MA 5.4 OHM TH |
0 | - |
|
数据表 |
4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 100 µH | ±5% | 160 mA | - | Unshielded | 5.4Ohm Max | 49 @ 790kHz | 11MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.410" Dia x 0.875" L (10.41mm x 22.22mm) | - |
|
|
4666-RCFIXED IND 2.4MH 160MA 15 OHM TH |
0 | - |
|
数据表 |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 2.4 mH | ±5% | 160 mA | - | Unshielded | 15Ohm Max | 80 @ 252kHz | 1.7MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - |
