固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSXND6060YEL1R5NMGFIXED IND 1.5UH 4.2A 20.8MOHM SM |
4,348 | - |
|
数据表 |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 4.2 A | 8.2A | Shielded | 20.8mOhm Max | - | 95MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
VLS252008ET-6R8MFIXED IND 6.8UH 500MA 818MOHM SM |
4,329 | - |
|
数据表 |
VLS-E | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 500 mA | 490mA | Shielded | 818mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
SRN2012-R47MFIXED IND 470NH 2.9A 46 MOHM SMD |
14 | - |
|
数据表 |
SRN2012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 2.9 A | 3.5A | Shielded | 46mOhm Max | 9 @ 1MHz | 220MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
-MCoil-MC-Series.jpg)
|
MCFE1608TR47MGFIXED IND 470NH 2A 150 MOHM SMD |
3,998 | - |
|
数据表 |
MCOIL™, MC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 2 A | - | Shielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.026" (0.65mm) |
|
CM453232-120KLFIXED IND 12UH 225MA 2 OHM SMD |
3,941 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 225 mA | - | Unshielded | 2Ohm Max | 50 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
BWLS00241715220K00INDUCTOR RF |
3,900 | - |
|
数据表 |
BWLS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 270 mA | - | Unshielded | 5.45Ohm Max | 16 @ 2.5MHz | 20MHz | - | -25°C ~ 105°C | 2.5 MHz | - | Surface Mount | 0805 | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|
|
BWLS002417151R0K00INDUCTOR RF |
3,589 | - |
|
数据表 |
BWLS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 700 mA | - | Unshielded | 690mOhm Max | 20 @ 7.9MHz | 400MHz | - | -25°C ~ 105°C | 7.9 MHz | - | Surface Mount | 0805 | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|
SRN2010-R24MFIXED IND 240NH 4.4A 28 MOHM SMD |
3,581 | - |
|
数据表 |
SRN2010 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 240 nH | ±20% | 4.4 A | 5.1A | Shielded | 28mOhm Max | 8 @ 1MHz | 370MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.040" (1.02mm) |
|
|
CM453232-3R9KLFIXED IND 3.9UH 330MA 900MOHM SM |
3,569 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 330 mA | - | Unshielded | 900mOhm Max | 50 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
VLS3012ET-6R8MFIXED IND 6.8UH 810MA 228MOHM SM |
3,477 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 810 mA | 810mA | Shielded | 228mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
VLS252015ET-6R8MFIXED IND 6.8UH 730MA 480MOHM SM |
3,465 | - |
|
数据表 |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 730 mA | 850mA | Shielded | 480mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

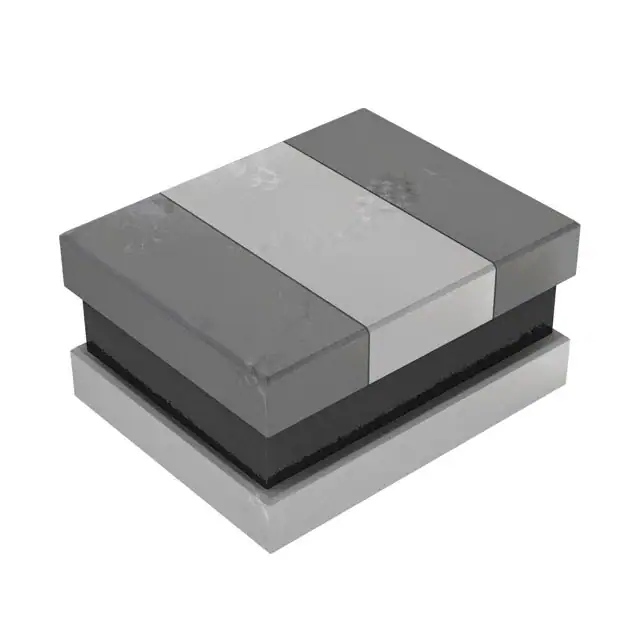

SRN2512-R24MFIXED IND 240NH 4.7A 24 MOHM SMD |
3,384 | - |
|
数据表 |
SRN2512 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 240 nH | ±20% | 4.7 A | 8A | Shielded | 24mOhm Max | 7 @ 1MHz | 330MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CM453232-271KLFIXED IND 270UH 92MA 12 OHM SMD |
3,262 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 92 mA | - | Unshielded | 12Ohm Max | 40 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
VLS252015ET-4R7MFIXED IND 4.7UH 890MA 318MOHM SM |
3,150 | - |
|
数据表 |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 890 mA | 1A | Shielded | 318mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

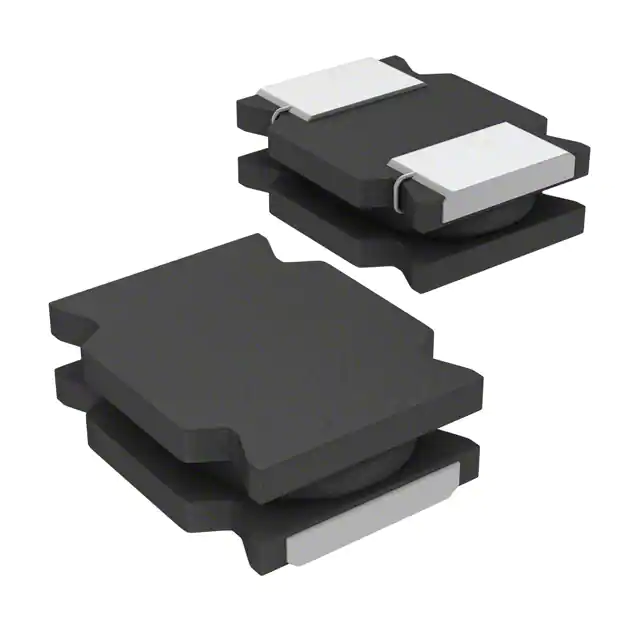

LQH2MCN1R0M52LFIXED IND 1UH 595MA 325 MOHM SMD |
3,011 | - |
|
数据表 |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 595 mA | - | Unshielded | 325mOhm Max | - | 215MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
CM453232-R39MLFIXED IND 390NH 575MA 300MOHM SM |
2,918 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±20% | 575 mA | - | Unshielded | 300mOhm Max | 40 @ 25.2MHz | 150MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
E.JPG)
|
VLS2012ET-R68NFIXED IND 680NH 1.7A 66 MOHM SMD |
2,904 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 680 nH | ±30% | 1.7 A | 1.7A | Shielded | 66mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CM453232-R47MLFIXED IND 470NH 545MA 320MOHM SM |
2,825 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 545 mA | - | Unshielded | 320mOhm Max | 40 @ 25.2MHz | 145MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
LSXND6060YEL2R2NMGFIXED IND 2.2UH 3.6A 28.6MOHM SM |
2,778 | - |
|
数据表 |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 3.6 A | 6.4A | Shielded | 28.6mOhm Max | - | 60MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
CM453232-1R2KLFIXED IND 1.2UH 430MA 550MOHM SM |
2,751 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 430 mA | - | Unshielded | 550mOhm Max | 50 @ 7.96MHz | 80MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
