固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS252008ET-4R7MFIXED IND 4.7UH 590MA 580MOHM SM |
2,725 | - |
|
数据表 |
VLS-E | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 590 mA | 610mA | Shielded | 580mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|

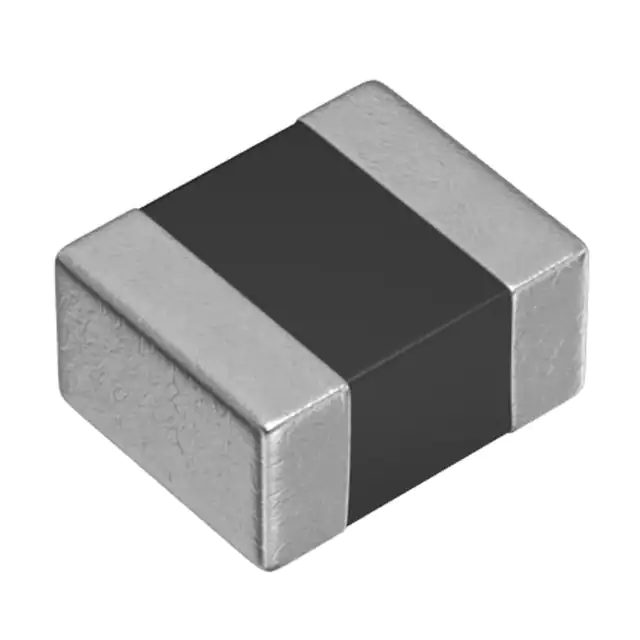

MLP2520V1R5ST0S1FIXED IND 1.5UH 1.4A 130MOHM SMD |
2,671 | - |
|
数据表 |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1.4 A | - | Shielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SDCL1V4018-2R2M-RIND 2.2 UH 3.00A SMT |
2,660 | - |
|
数据表 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 2.5 A | 3A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.073" (1.85mm) |
|
CM453232-821KLFIXED IND 820UH 30MA 35 OHM SMD |
2,659 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 30 mA | - | Unshielded | 35Ohm Max | 30 @ 796kHz | 2.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
.jpg)
|
B82422A3470K100FIXED IND 47NH 510MA 190MOHM SMD |
2,180 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±10% | 510 mA | - | Unshielded | 190mOhm Max | 26 @ 50MHz | 1.35GHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
CM453232-R82MLFIXED IND 820NH 475MA 450MOHM SM |
2,163 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 475 mA | - | Unshielded | 450mOhm Max | 40 @ 25.2MHz | 130MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SRN2012-1R0MFIXED IND 1UH 2.3A 104 MOHM SMD |
2,106 | - |
|
数据表 |
SRN2012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.3 A | 2.5A | Shielded | 104mOhm Max | 10 @ 1MHz | 110MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
VLS252008ET-1R0NFIXED IND 1UH 970MA 219 MOHM SMD |
2,000 | - |
|
数据表 |
VLS-E | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 970 mA | 1.2A | Shielded | 219mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|

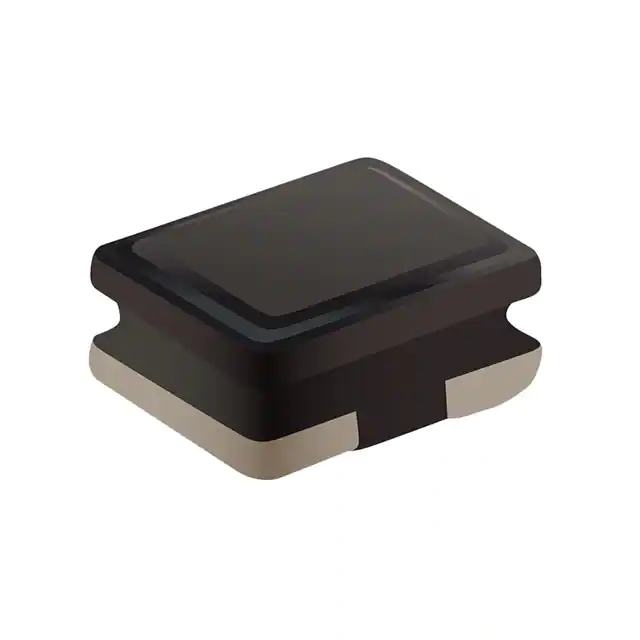

SRN2009T-R68MFIXED IND 680NH 1.5A 55MOHM SMD |
1,974 | - |
|
数据表 |
SRN2009T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 1.5 A | 1.5A | Shielded | 55mOhm | 22 @ 1MHz | 250MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
SDCL1V4030-2R2M-RIND 2.2 UH 5.0A SMT |
1,927 | - |
|
数据表 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 2.8 A | 5A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
CM453232-561KLFIXED IND 560UH 50MA 30 OHM SMD |
1,891 | - |
|
数据表 |
CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

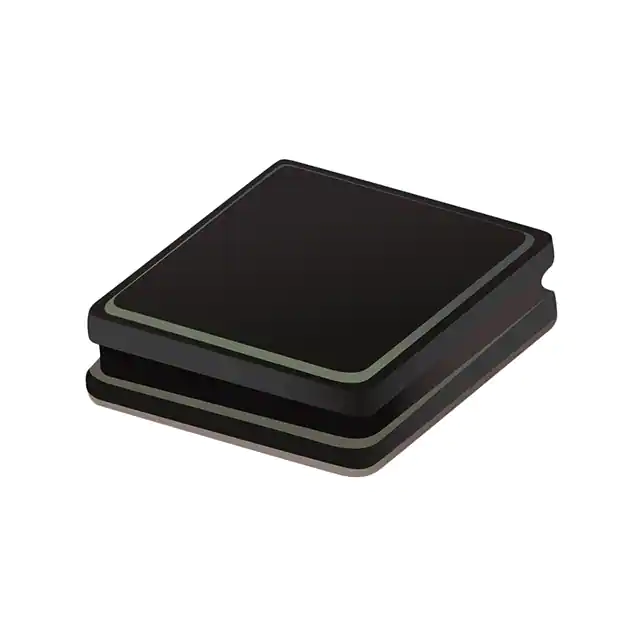

SRN2508A-6R8MFIXED IND 6.8UH 550MA 670MOHM SM |
1,701 | - |
|
数据表 |
SRN2508A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 550 mA | 750mA | Shielded | 670mOhm | 10 @ 1MHz | 80MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|

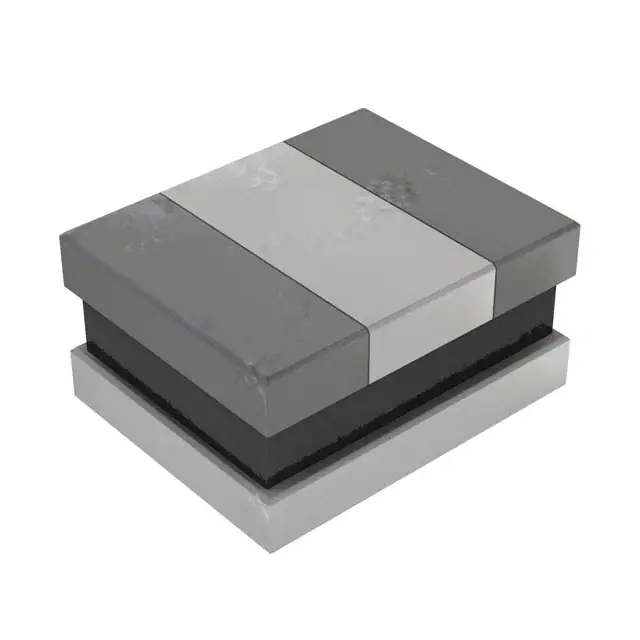

SRN2510-1R0MFIXED IND 1UH 2.2A 80 MOHM SMD |
1,362 | - |
|
数据表 |
SRN2510 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.2 A | 2.7A | Shielded | 80mOhm Max | 10 @ 1MHz | 140MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.040" (1.02mm) |
|
|
MLP2520V3R3MT0S1FIXED IND 3.3UH 900MA 260MOHM SM |
1,351 | - |
|
数据表 |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 900 mA | - | Shielded | 260mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQH2MCN2R2M52LFIXED IND 2.2UH 500MA 546MOHM SM |
1,301 | - |
|
数据表 |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 500 mA | - | Unshielded | 546mOhm Max | - | 125MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
VLS252012ET-6R8MFIXED IND 6.8UH 650MA 612MOHM SM |
1,180 | - |
|
数据表 |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 650 mA | 850mA | Shielded | 612mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-MCoil-MC-Series.jpg)
|
MCKK2012TR24MFIXED IND 240NH 6.2A 25 MOHM SMD |
1,170 | - |
|
数据表 |
MCOIL™, MC | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 240 nH | ±20% | 6.2 A | - | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
SRN2510-R47MFIXED IND 470NH 3.1A 42 MOHM SMD |
1,135 | - |
|
数据表 |
SRN2510 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 3.1 A | 3.2A | Shielded | 42mOhm Max | 8 @ 1MHz | 200MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.040" (1.02mm) |
|

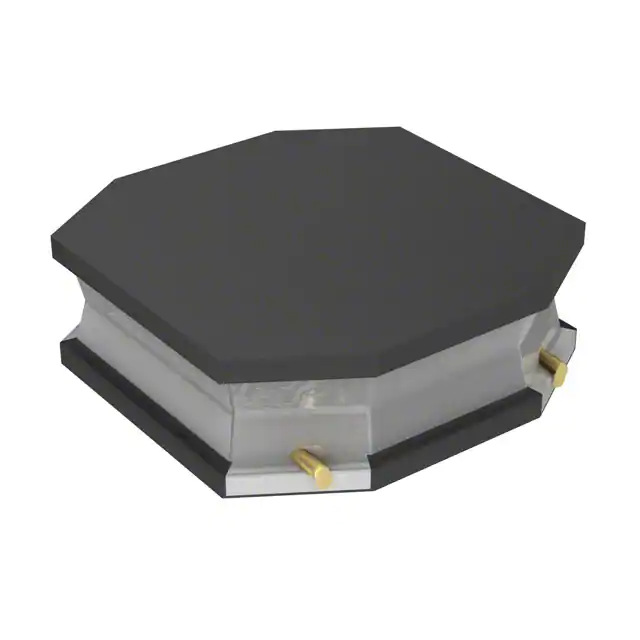

VLS3010ET-6R8MFIXED IND 6.8UH 690MA 312MOHM SM |
1,109 | - |
|
数据表 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 6.8 µH | ±20% | 690 mA | 690mA | Shielded | 312mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

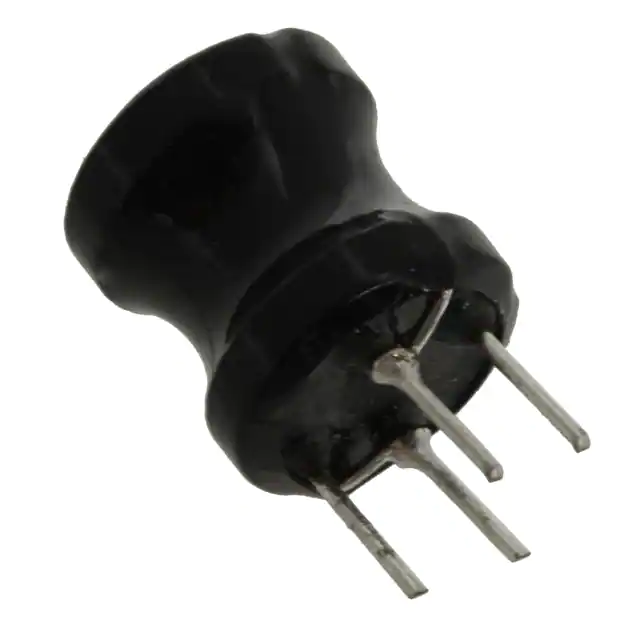

AIUR-08-121KFIXED IND 120UH 1.5A 200 MOHM TH |
1,215 | - |
|
数据表 |
AIUR-08 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 1.5 A | - | Unshielded | 200mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.433" (11.00mm) |
