固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0087.222NLFIXED IND 2.2UH 2.2A 45 MOHM SMD |
2,950 | - |
|
数据表 |
PG0087NL | Nonstandard | Tray | Active | - | - | 2.2 µH | ±20% | 2.2 A | 2.2A | Shielded | 45mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
|
PG0087.152NLFIXED IND 1.5UH 3A 34 MOHM SMD |
2,765 | - |
|
数据表 |
PG0087NL | Nonstandard | Tray | Active | - | - | 1.5 µH | ±20% | 3 A | 3A | Shielded | 34mOhm Max | - | 40MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.079" (2.00mm) |
|
ETQ-P3MR33KVPFIXED IND 330NH 12.7A 5.3MOHM SM |
4,052 | - |
|
数据表 |
PCC-M0530M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 12.7 A | 21.8A | Shielded | 5.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
SDR1305-680MFIXED IND 68UH 1.65A 165MOHM SMD |
3,910 | - |
|
数据表 |
SDR1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.65 A | 1.8A | Unshielded | 165mOhm Max | 22 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.201" (5.10mm) |
|
|
SDR1305-102KFIXED IND 1MH 460MA 2.35 OHM SMD |
1,601 | - |
|
数据表 |
SDR1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 460 mA | 470mA | Unshielded | 2.35Ohm Max | 41 @ 252kHz | 2.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.201" (5.10mm) |
|

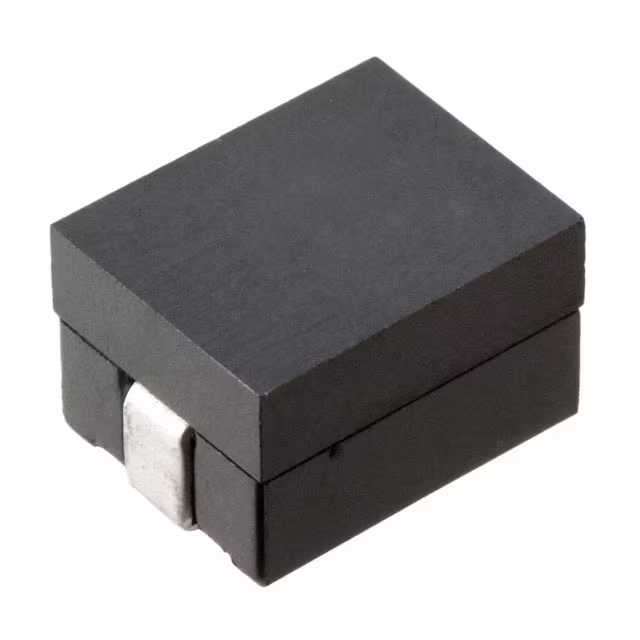

PA1320.221NLFIXED IND 200NH 40A 0.48MOHM SMD |
2,108 | - |
|
数据表 |
PA1320NL | Nonstandard | Tray | Active | - | - | 200 nH | ±20% | 40 A | 50A | Shielded | 0.48mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.315" W (10.41mm x 8.00mm) | 0.256" (6.50mm) |
|
P0250.153NLFIXED IND 15UH 4A 36 MOHM SMD |
2,190 | - |
|
数据表 |
P0250NL | Nonstandard | Tray | Active | Wirewound | - | 15 µH | ±15% | 4 A | 8A | Unshielded | 36mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
|
P0250.683NLFIXED IND 68UH 2.3A 130 MOHM SMD |
2,190 | - |
|
数据表 |
P0250NL | Nonstandard | Tray | Active | Wirewound | - | 68 µH | ±15% | 2.3 A | 3.2A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|

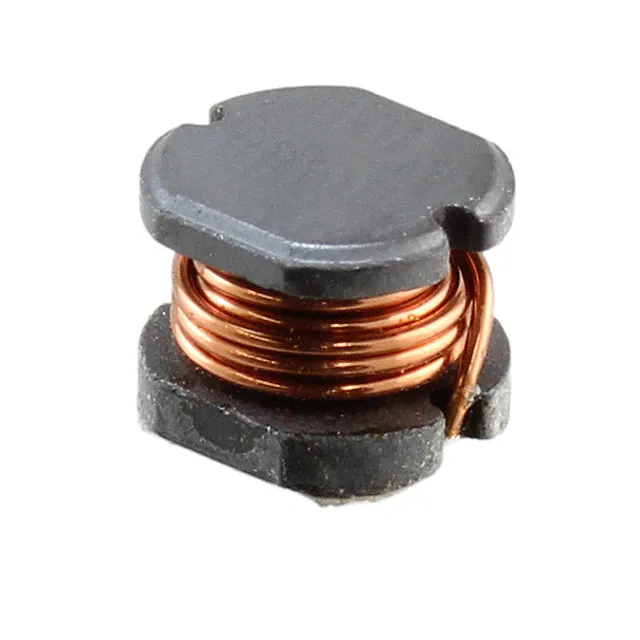

CD54NP-390LCFIXED IND 39UH 800MA 320MOHM SMD |
18,685 | - |
|
数据表 |
CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±15% | 800 mA | - | Unshielded | 320mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

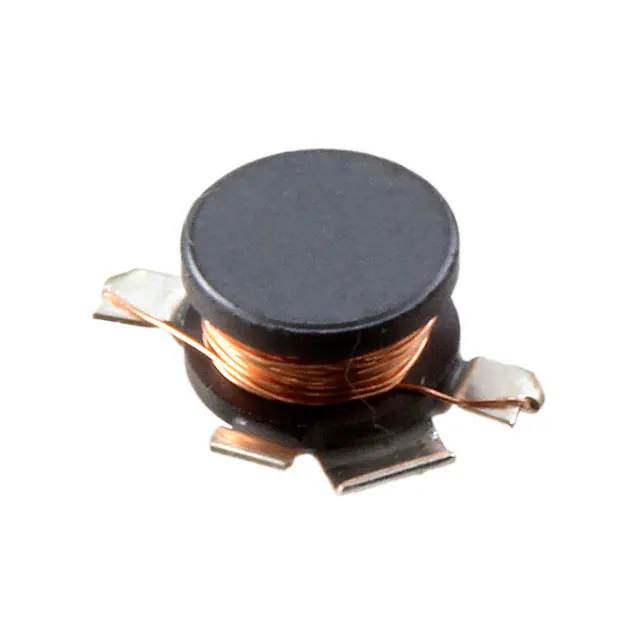

B82462A4153K000FIXED IND 15UH 900MA 210MOHM SMD |
9,746 | - |
|
数据表 |
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 900 mA | 1.5A | Unshielded | 210mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|

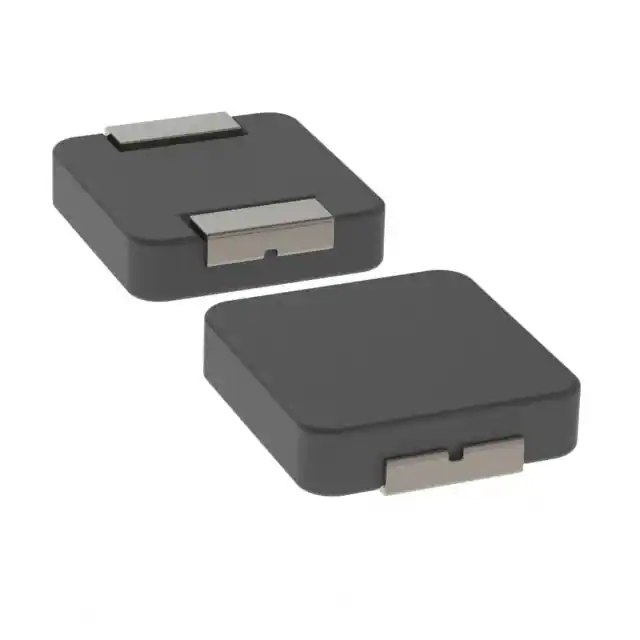

PM4345.102NLTFIXED IND 1UH 7A 20 MOHM SMD |
8,910 | - |
|
数据表 |
PM4345.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 7 A | 13.7A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.213" W (6.00mm x 5.40mm) | 0.079" (2.00mm) |
|

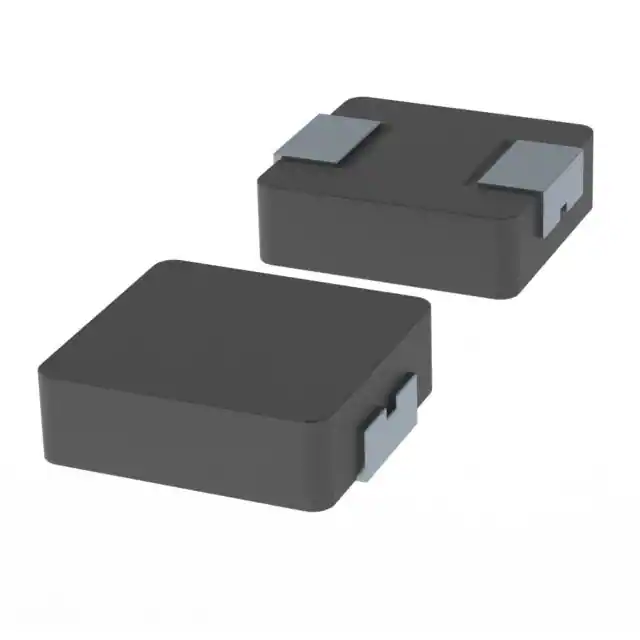

PA4548.153NLTFIXED IND 15UH 2.1A 180 MOHM SMD |
7,049 | - |
|
数据表 |
PA4548.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 2.1 A | 3A | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
IHLP1212BZEV1R0M01FIXED IND SMD |
3,434 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

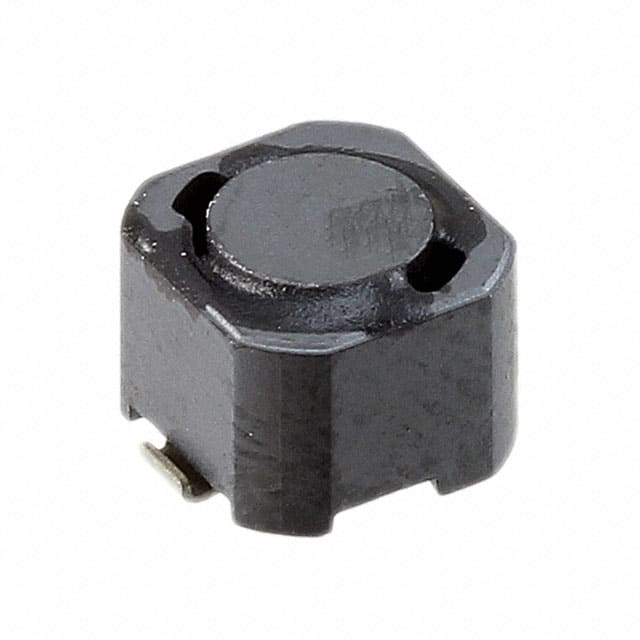

CDRH64BNP-471MC-BFIXED IND 470UH 200MA 3.93OHM SM |
3,175 | - |
|
数据表 |
CDRH64B | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 200 mA | - | Shielded | 3.93Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.197" (5.00mm) |
|
|
IHLP1212ABEV1R2M01FIXED IND SMD |
2,976 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CDRH4D16NP-4R7NCFIXED IND 4.7UH 1.65A 75MOHM SMD |
2,733 | - |
|
数据表 |
CDRH4D16 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±25% | 1.65 A | 1.4A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.071" (1.80mm) |
|
CR43NP-150MCFIXED IND 15UH 850MA 235MOHM SMD |
2,175 | - |
|
数据表 |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 850 mA | - | Unshielded | 235mOhm Max | - | 28MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
SDR0906-680KLFIXED IND 68UH 1A 310 MOHM SMD |
1,600 | - |
|
数据表 |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1 A | 1.4A | Unshielded | 310mOhm Max | 20 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
SDR0906-100MLFIXED IND 10UH 2.1A 90 MOHM SMD |
1,598 | - |
|
数据表 |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 3.2A | Unshielded | 90mOhm Max | 35 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
|
|
SDR0906-101KLFIXED IND 100UH 900MA 390MOHM SM |
1,200 | - |
|
数据表 |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 900 mA | 1.1A | Unshielded | 390mOhm Max | 15 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | 0.248" (6.30mm) |
