固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBC4-1R0-742FIXED IND 1UH 7.4A 10 MOHM TH |
2,179 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 7.4 A | 14.9A | Unshielded | 10mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|

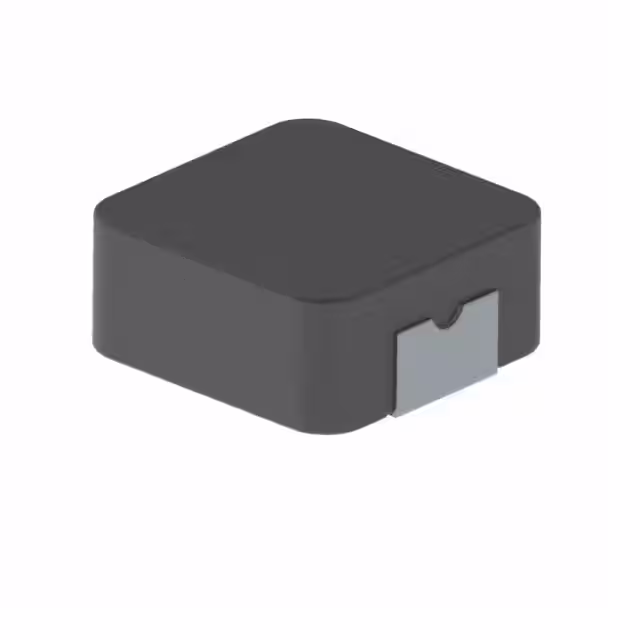

HCM1A0703-6R8-RFIXED IND 6.8UH 3.5A 60MOHM SMD |
2,115 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 3.5 A | 6.4A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
ETQ-P4M6R8KFNFIXED IND 6.8H 9.9A 32.1 MOHM |
1,984 | - |
|
数据表 |
PCC-M0648M-LE | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 5.9 A | 9.9A | Shielded | 35.31mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.189" (4.80mm) |
|
PF0560.223NLFIXED IND 22UH 2.5A 73 MOHM SMD |
1,924 | - |
|
数据表 |
PF0560NL | Nonstandard | Tray | Active | Wirewound | - | 22 µH | ±30% | 2.5 A | 2.9A | Shielded | 73mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | 0.157" (4.00mm) |
|
|
HCM1A0703-R22-RFIXED IND 220NH 17A 2.7MOHM SMD |
1,595 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 220 nH | ±20% | 17 A | 24A | Shielded | 2.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCM1A0703-3R3-RFIXED IND 3.3UH 4.9A 30MOHM SMD |
1,593 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 4.9 A | 9A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
SBC4-470-162FIXED IND 47UH 1.6A 110 MOHM TH |
1,296 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.6 A | 2.1A | Unshielded | 110mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.472" (12.00mm) |
|
IHLP1212BZEV3R3M01FIXED IND SMD |
7,748 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

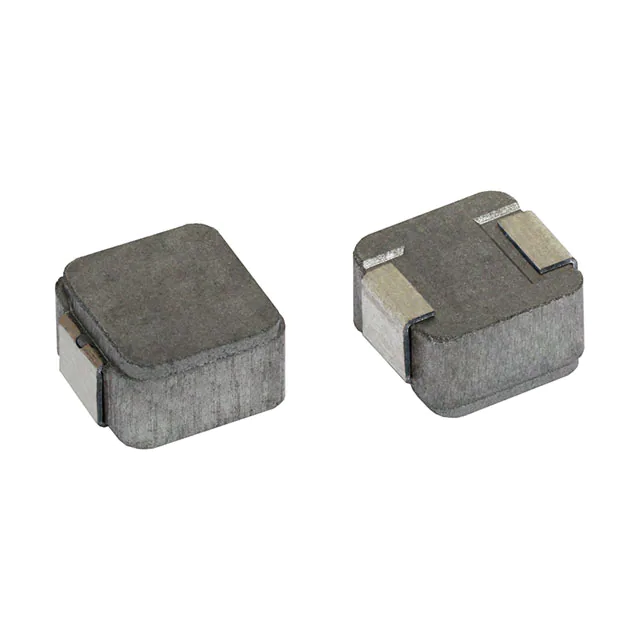

IHLP1212BZEVR47MA1IHLP-1212BZ-A1 .47 20% EV E3 |
5,106 | - |
|
数据表 |
IHLP-1212BZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 6.29 A | 9.28A | Shielded | 25.08mOhm Max | - | 148MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|

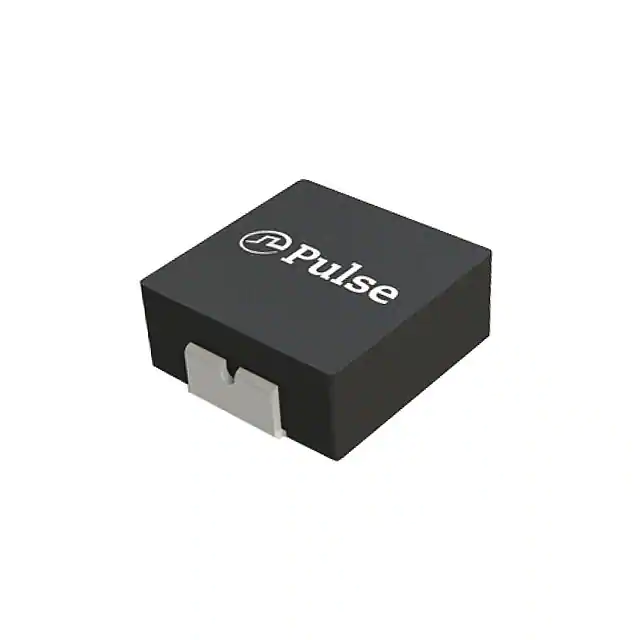

PA4341.101NLTFIXED IND 100NH 32.5A 1.7MOHM SM |
4,716 | - |
|
数据表 |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±30% | 32.5 A | 60A | Shielded | 1.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
|
PA4341.681NLTFIXED IND 680NH 15.5A 5.5MOHM SM |
4,713 | - |
|
数据表 |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 15.5 A | 25A | Shielded | 5.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
SDR1105-100MLFIXED IND 10UH 4A 45 MOHM SMD |
2,540 | - |
|
数据表 |
SDR1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4 A | 8A | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.197" (5.00mm) |
|
CDRH50D28BT150NP-470MCFIXED IND 47UH 760MA 430MOHM SMD |
1,799 | - |
|
数据表 |
CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 760 mA | 780mA | Shielded | 430mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
SPM4015T-R47M-LRFIXED IND 470NH 6.8A 16 MOHM SMD |
1,466 | - |
|
数据表 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 6.8 A | 13.3A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.059" (1.50mm) |
|
|
SDR1105-151KLFIXED IND 150UH 1.2A 500MOHM SMD |
1,135 | - |
|
数据表 |
SDR1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.2 A | 2.3A | Unshielded | 500mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.197" (5.00mm) |
|
MWLA0402S-R68MTFIXED IND 0.68UH 19MOHM 10000MA |
3,660 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 680 nH | ±20% | 7 A | 10A | Shielded | 19mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
MWSA0518S-3R3MTFIXED IND 3.3UH 4.5A 58MOHM SMD |
3,329 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 3.3 µH | ±20% | 4.5 A | 4.8A | Shielded | 58mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
EXLA1V0503-5R6-RIND MOLDED SHLD 5.6UH 4.3A |
3,204 | - |
|
数据表 |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 5.9 A | 6A | Shielded | 34.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|
|
MWLA0402S-6R8MTFIXED IND 6.8UH 172MOHM 2800MA |
3,000 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 2.1 A | 2.8A | Shielded | 172mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MWLA0402S-4R7MTFIXED IND 4.7UH 105MOHM 3500MA |
2,990 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 2.6 A | 3.5A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
