固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWLA0402S-R33MTFIXED IND 0.33UH 8.6MOHM 18000MA |
2,980 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 330 nH | ±20% | 10 A | 18A | Shielded | 8.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MWLA0402S-100MTFIXED IND 10UH 243MOHM 2300MA |
2,947 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 1.8 A | 2.3A | Shielded | 243mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MWLA0402S-2R2MTFIXED IND 2.2UH 61MOHM 6000MA |
2,839 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 4 A | 6A | Shielded | 61mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|

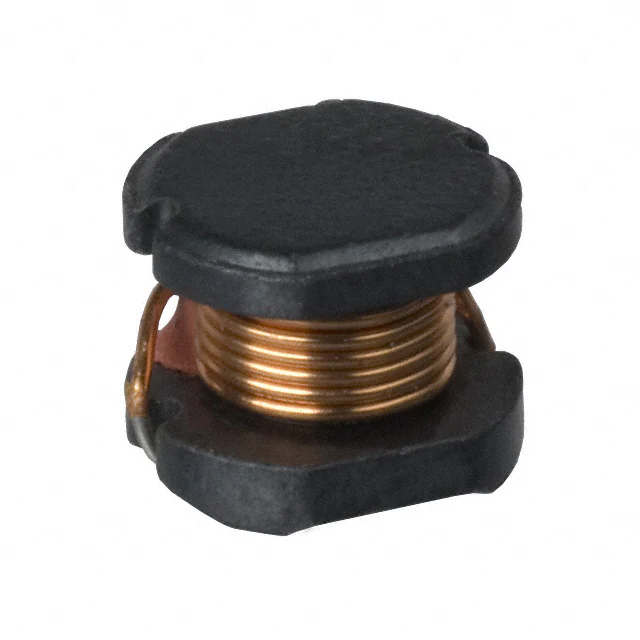

PM54-390L-RCFIXED IND 39UH 800MA 320MOHM SMD |
2,800 | - |
|
数据表 |
PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±15% | 800 mA | 1A | Unshielded | 320mOhm | 24 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
MWLA0402S-3R3MTFIXED IND 3.3UH 76MOHM 4000MA |
2,696 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 3.5 A | 4A | Shielded | 76mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
SRU6025A-470YFIXED IND 47UH 1A 250 MOHM SMD |
2,400 | - |
|
数据表 |
SRU6025A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1 A | 480mA | Shielded | 250mOhm Max | 12 @ 2.52MHz | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
|
SRU6025A-151YFIXED IND 150UH 540MA 770MOHM SM |
2,400 | - |
|
数据表 |
SRU6025A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 540 mA | 280mA | Shielded | 770mOhm Max | 30 @ 796kHz | 5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
|
APSC00060620100MS0FIXED IND 10UH 124 MOHM SMD |
2,145 | - |
|
数据表 |
APSC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | - | 900mA | Shielded | 124mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|
HCM0503-2R2-RFIXED IND 2.2UH 6.8A 25 MOHM SMD |
2,107 | - |
|
数据表 |
HCM0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 6.8 A | 6.5A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
|
MWLA0503S-R47MTFIXED IND 0.47UH 7.4MOHM 16000MA |
2,000 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 470 nH | ±20% | 12 A | 16A | Shielded | 7.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
MWLA0503S-R22MTFIXED IND 0.22UH 4.4MOHM 21000MA |
2,000 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 220 nH | ±20% | 15.5 A | 21A | Shielded | 4.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
MWLA0503S-R82MTFIXED IND 0.82UH 13MOHM 12500MA |
1,995 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 820 nH | ±20% | 8 A | 12.5A | Shielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
MWLA0503S-R68MTFIXED IND 0.68UH 12MOHM 14000MA |
1,990 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 680 nH | ±20% | 8.5 A | 14A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
MWLA0503S-3R3MTFIXED IND 3.3UH 38MOHM 8000MA |
1,985 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 5 A | 8A | Shielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
MWSA0503S-1R2MTFIXED IND 1.2UH 8.5A 16MOHM SMD |
1,966 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.2 µH | ±20% | 8.5 A | 9.5A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
|
MWLA0503S-6R8MTFIXED IND 6.8UH 76.2MOHM 4300MA |
1,965 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 4 A | 4.3A | Shielded | 76.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
MWLA0503S-2R2MTFIXED IND 2.2UH 35MOHM 9000MA |
1,949 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 5.5 A | 9A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
MWLA0503S-R33MTFIXED IND 0.33UH 5MOHM 18000MA |
1,940 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 330 nH | ±20% | 14 A | 18A | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
MWLA0503S-1R5MTFIXED IND 1.5UH 25MOHM 10000MA |
1,934 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 6 A | 10A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
|
MWSA0503S-R20MTFIXED IND 200NH 14A 3.9MOHM SMD |
1,925 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 200 nH | ±20% | 14 A | 20A | Shielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
