固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP4012TA-1R2MFIXED IND 1.2UH 3.5A 56 MOHM SMD |
4,815 | - |
|
数据表 |
SRP4012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.2 µH | ±20% | 3.5 A | 5A | Shielded | 56mOhm Max | 10 @ 100kHz | 70MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
P0751.102NLTFIXED IND 1UH 6.8A 10 MOHM SMD |
4,319 | - |
|
数据表 |
P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 6.8 A | 9A | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
SRP4012TA-8R2MFIXED IND 8.2UH 1.4A 376MOHM SMD |
3,859 | - |
|
数据表 |
SRP4012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 1.4 A | 1.6A | Shielded | 376mOhm Max | 10 @ 100kHz | 25MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
SPM3020T-1R5M-LRFIXED IND 1.5UH 3.4A 55 MOHM SMD |
3,622 | - |
|
数据表 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3.4 A | 4.4A | Shielded | 55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.079" (2.00mm) |
|
|
SRP4012TA-6R8MFIXED IND 6.8UH 1.5A 360MOHM SMD |
3,609 | - |
|
数据表 |
SRP4012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 1.5 A | 1.7A | Shielded | 360mOhm Max | 10 @ 100kHz | 28MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
SRR1210-3R3YFIXED IND 3.3UH 9A 10 MOHM SMD |
3,392 | - |
|
数据表 |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 9 A | 10.5A | Shielded | 10mOhm Max | 15 @ 7.96MHz | 44MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
IHLP2020BZERR22M11FIXED IND 220NH 17A 4.5 MOHM SMD |
2,168 | - |
|
数据表 |
IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 17 A | 13A | Shielded | 4.5mOhm Max | - | 146MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020CZERR10M01FIXED IND 100NH 23A 3.16MOHM SMD |
2,014 | - |
|
数据表 |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 23 A | 27A | Shielded | 3.16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
SPM4012T-3R3M-LRFIXED IND 3.3UH 2.6A 126.5 MOHM |
1,912 | - |
|
数据表 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.6 A | 3.5A | Shielded | 126.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
IHLP2525AHER3R3M01FIXED IND 3.3UH 3.25A 60.1 MOHM |
1,791 | - |
|
数据表 |
IHLP-2525AH-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 3.25 A | 10A | Shielded | 60.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.071" (1.80mm) |
|
|
SRP4012TA-R22MFIXED IND 220NH 8.5A 8 MOHM SMD |
1,460 | - |
|
数据表 |
SRP4012TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 220 nH | ±20% | 8.5 A | 20A | Shielded | 8mOhm Max | 5 @ 100kHz | 143MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
IHLP2525AHERR82M01FIXED IND 820NH 8A 15.9 MOHM SMD |
1,225 | - |
|
数据表 |
IHLP-2525AH-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 8 A | 17A | Shielded | 15.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.071" (1.80mm) |
|

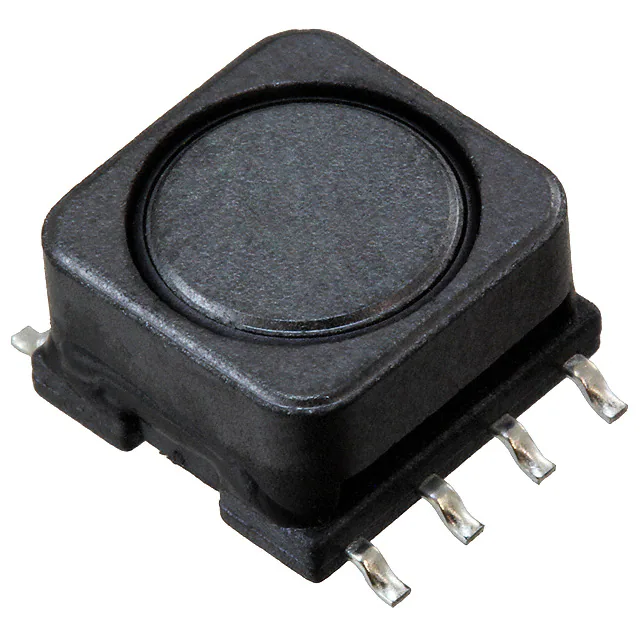

SRR0906-822KLFIXED IND 8.2MH 80MA 31 OHM SMD |
1,053 | - |
|
数据表 |
SRR0906 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 80 mA | 90mA | Shielded | 31Ohm Max | 100 @ 252kHz | 800kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.248" (6.30mm) |
|
MPXV1D0618LR10FIXED IND 100NH 18.9A 2.8MOHM SM |
1,000 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 100 nH | ±20% | 18.9 A | 40A | Shielded | 2.8mOhm Max | - | 230MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
|
|
MPXV1D0618L3R3FIXED IND 3.3UH 4A 61.5 MOHM SMD |
992 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 4 A | 6.5A | Shielded | 61.5mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
|

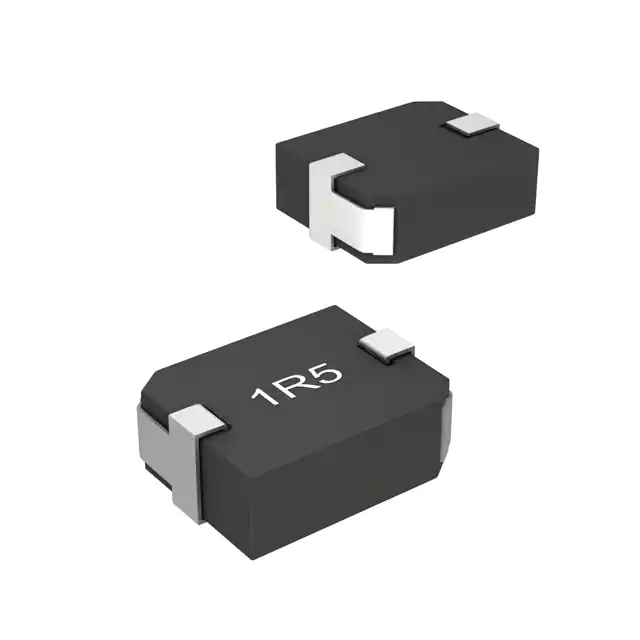

SRP7030-R20MFIXED IND 200NH 24A 0.003OHM SMD |
990 | - |
|
数据表 |
SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 200 nH | ±20% | 24 A | 36A | Shielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
|
MPXV1D0624LR10FIXED IND 100NH 26.6A 1.8MOHM SM |
990 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 100 nH | ±20% | 26.6 A | 42A | Shielded | 1.8mOhm Max | - | 210MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
|
MPXV1D0618LR33FIXED IND 330NH 12.7A 6.1MOHM SM |
975 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 12.7 A | 20A | Shielded | 6.1mOhm Max | - | 96MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
|
|
MPXV1D0618L4R7FIXED IND 4.7UH 3.4A 83.4MOHM SM |
972 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 3.4 A | 6A | Shielded | 83.4mOhm Max | - | 26MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
|
|
SRP7030-R10MFIXED IND 100NH 32.5A 0.0017OHM |
950 | - |
|
数据表 |
SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 100 nH | ±20% | 32.5 A | 42A | Shielded | 1.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
