固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP7030-R72MFIXED IND 720NH 15.5A 0.0055OHM |
161 | - |
|
数据表 |
SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 720 nH | ±20% | 15.5 A | 23A | Shielded | 5.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
IHLP2020CZERR33M5AFIXED IND 330NH 16A 5.34MOHM SMD |
5,713 | - |
|
数据表 |
IHLP-2020CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 16 A | 9.8A | Shielded | 5.34mOhm Max | - | 117MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
MGV0302R47M-10FIXED IND 470NH 7A 23 MOHM SMD |
5,558 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 7 A | 9A | Shielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
IMC1812ER3R3KFIXED IND 3.3UH 355MA 800MOHM SM |
5,381 | - |
|
数据表 |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±10% | 355 mA | - | Unshielded | 800mOhm Max | 50 @ 7.96MHz | 45MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
0320CDMCCDS-R47MCFIXED IND 470NH 7.5A 15.6MOHM SM |
2,795 | - |
|
数据表 |
0320CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 7.5 A | 5.2A | Shielded | 15.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.079" (2.00mm) |
|
ECS-MPI4040R4-1R5-RFIXED IND 1.5UH 4.9A 23 MOHM SMD |
2,087 | - |
|
数据表 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 4.9 A | 6.9A | Shielded | 23mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
SPM4010T-4R7M-LRFIXED IND 4.7UH 1.8A 258.8 MOHM |
1,949 | - |
|
数据表 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.8 A | 2.2A | Shielded | 258.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.039" (1.00mm) |
|
SRR0906-682YLFIXED IND 6.8MH 90MA 24 OHM SMD |
1,155 | - |
|
数据表 |
SRR0906 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±15% | 90 mA | 100mA | Shielded | 24Ohm Max | 100 @ 252kHz | 900kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.248" (6.30mm) |
|

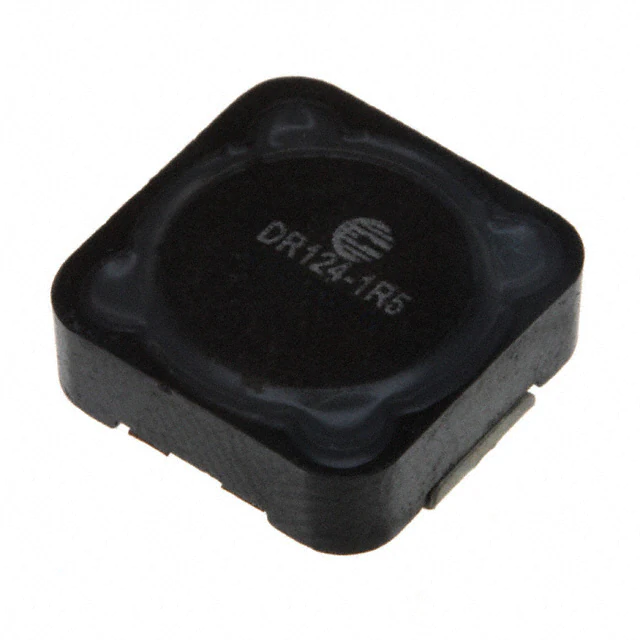

DR124-1R5-RFIXED IND 1.5UH 11.1A 5.7MOHM SM |
1,017 | - |
|
数据表 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 11.1 A | 14A | Shielded | 5.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SPM4010T-1R5M-LRFIXED IND 1.5UH 3.4A 70.4MOHM SM |
948 | - |
|
数据表 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3.4 A | 4A | Shielded | 70.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.039" (1.00mm) |
|

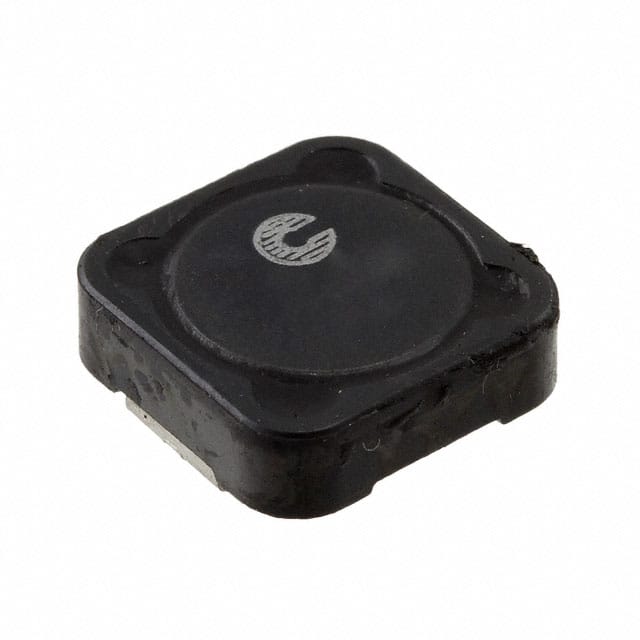

DR124-680-RFIXED IND 68UH 1.8A 220 MOHM SMD |
940 | - |
|
数据表 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.8 A | 2.13A | Shielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
HCM1A0703V2-R47-RFIXED IND 470NH 13A 4.14MOHM SMD |
619 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 13 A | 17A | Shielded | 4.14mOhm Max | - | 70MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
MPXV1D0624L1R0FIXED IND 1UH 10.8A 10.5MOHM SMD |
439 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 10.8 A | 13A | Shielded | 10.5mOhm Max | - | 46MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
|
DR124-6R8-RFIXED IND 6.8UH 5.6A 21.7MOHM SM |
393 | - |
|
数据表 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 5.6 A | 6.47A | Shielded | 21.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
EXL1V0606-2R2-RFIXED IND 2.2UH 14A 7.8MOHM SMD |
369 | - |
|
数据表 |
EXL1V0606 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 14 A | 12A | Shielded | 7.8mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
|
EXL1V0606-4R7-RFIXED IND 4.7UH 11A 14.4MOHM SMD |
347 | - |
|
数据表 |
EXL1V0606 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 11 A | 9.5A | Shielded | 14.4mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.236" (6.00mm) |
|
PA4547.472NLTFIXED IND 4.7UH 1.9A 264MOHM SMD |
16,757 | - |
|
数据表 |
PA4547.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 1.9 A | 2.8A | Unshielded | 264mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.059" (1.50mm) |
|
B82462A4683K000FIXED IND 68UH 430MA 860MOHM SMD |
4,998 | - |
|
数据表 |
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 430 mA | 690mA | Unshielded | 860mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
IHLP2020CZERR47M8AFIXED IND 470NH 14.5A 6.44 MOHM |
4,054 | - |
|
数据表 |
IHLP-2020CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 14.5 A | 8.7A | Shielded | 6.44mOhm Max | - | 94.8MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
PA4546.103NLTFIXED IND 10UH 1.3A 463 MOHM SMD |
3,933 | - |
|
数据表 |
PA4546.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 1.3 A | 1.4A | Unshielded | 463mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
