固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78477510FIXED IND 10UH 2.3A 70 MOHM SMD |
363 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.3 A | 2.95A | Unshielded | 70mOhm Max | - | 23MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
78477520FIXED IND 100UH 770MA 430MOHM SM |
248 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 770 mA | 860mA | Unshielded | 430mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
IHLE4040DDER2R2M5AFIXED IND 2.2UH 15A 8.76MOHM SMD |
218 | - |
|
数据表 |
IHLE-4040DD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 15 A | 12A | Shielded | 8.76mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.426" L x 0.426" W (10.82mm x 10.82mm) | 0.169" (4.30mm) |
|
MPCH0730LR24FIXED IND 240NH 23A 1.2 MOHM SMD |
190 | - |
|
数据表 |
MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 240 nH | ±20% | 23 A | 19A | Shielded | 1.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.118" (3.00mm) |
|
MPI2512V2-R47-RFIXED IND 470NH 4.9A 23MOHM SMD |
8,319 | - |
|
数据表 |
MPI25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 4.9 A | 6.7A | Shielded | 23mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
MPIA4020V2-220-RFIXED IND 22UH 1.2A 402 MOHM SMD |
5,939 | - |
|
数据表 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 22 µH | ±20% | 1.2 A | 1.65A | Shielded | 402mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
IHLE4040DDEWR47M5AFIXED IND 470NH 30A 0.00166OHM |
1,976 | - |
|
数据表 |
IHLE-4040DDEW-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 30 A | 28.5A | Shielded | 1.66mOhm Max | - | 72.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|
CDH80D48NP-471KCFIXED IND 470UH 450MA 1.42OHM SM |
1,500 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 450 mA | 470mA | Unshielded | 1.42Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|

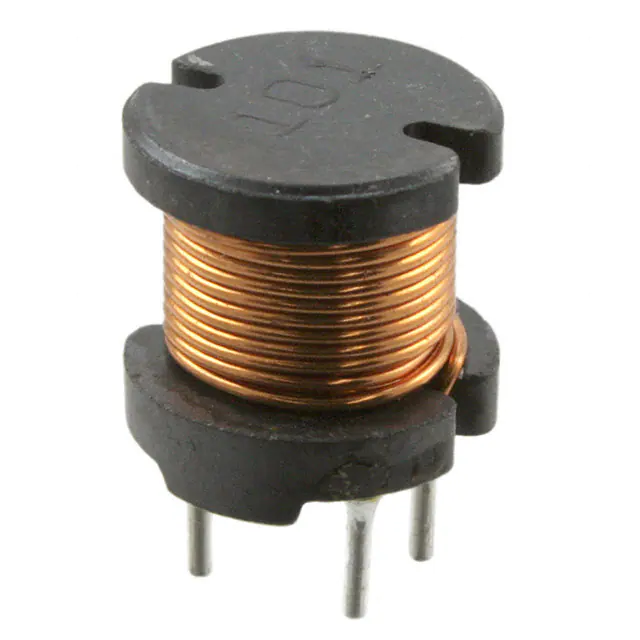

RL110-101K-RCFIXED IND 100UH 1.7A 160 MOHM TH |
936 | - |
|
数据表 |
RL110 | Radial, Vertical Cylinder, 4 Leads (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.7 A | - | Unshielded | 160mOhm Max | 25 @ 796kHz | 5.7MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
CDH80D48NP-222KCFIXED IND 2.2MH 210MA 6.54OHM SM |
781 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 210 mA | 220mA | Unshielded | 6.54Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
CDH80D48NP-151KCFIXED IND 150UH 830MA 480MOHM SM |
500 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 830 mA | 830mA | Unshielded | 480mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
CDH80D48NP-331KCFIXED IND 330UH 570MA 1 OHM SMD |
498 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 570 mA | 580mA | Unshielded | 1Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
CDH80D48NP-101KCFIXED IND 100UH 1.03A 330MOHM SM |
481 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.03 A | 1.02A | Unshielded | 330mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|

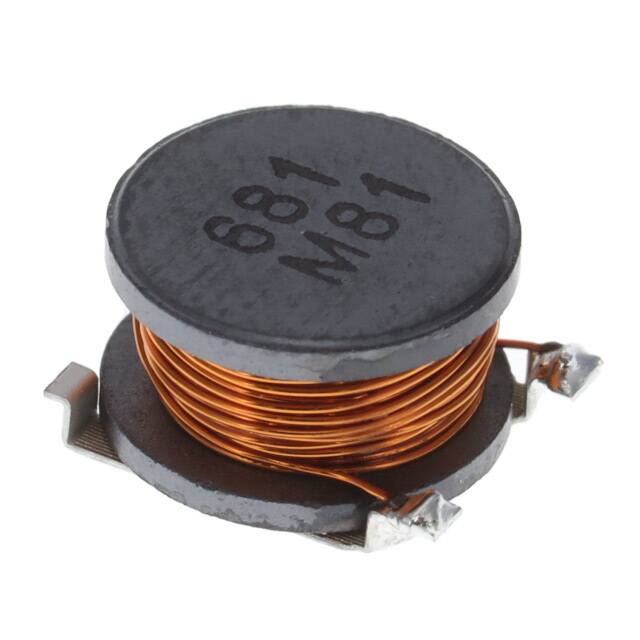

CDH80D48NP-681KCFIXED IND 680UH 370MA 2.06OHM SM |
448 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 370 mA | 390mA | Unshielded | 2.06Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
CDH80D48NP-152KCFIXED IND 1.5MH 250MA 4.69OHM SM |
324 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 250 mA | 260mA | Unshielded | 4.69Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
CDH80D48NP-332KCFIXED IND 3.3MH 160MA 11.2OHM SM |
227 | - |
|
数据表 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 160 mA | 180mA | Unshielded | 11.2Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
B82472P6334M000FIXED IND 330UH 330MA 1.7OHM SMD |
851 | - |
|
数据表 |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 330 mA | 300mA | Shielded | 1.7Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
744306020FIXED IND 200NH 25A 0.00026OHM |
645 | - |
|
数据表 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 200 nH | ±20% | 25 A | 36.1A | Shielded | 0.26mOhm | - | 350MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1052 | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.217" (5.50mm) |
|
B82477P2154M000FIXED IND 150UH 1.35A 210MOHM SM |
540 | - |
|
数据表 |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.35 A | 1A | Shielded | 210mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
744306030FIXED IND 300NH 25A 0.00026OHM |
475 | - |
|
数据表 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 300 nH | ±20% | 25 A | 25A | Shielded | 0.26mOhm | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1052 | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.217" (5.50mm) |
