固定电感器
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2203.102NLTFIXED IND 1UH 12.2A 7.6MOHM SMD |
2,630 | - |
|
数据表 |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 12.2 A | 14.3A | Shielded | 7.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
7447779008FIXED IND 8.2UH 2.7A 53 MOHM SMD |
2,364 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 2.7 A | 3A | Shielded | 53mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
74477730FIXED IND 1MH 200MA 6 OHM SMD |
2,071 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 200 mA | 250mA | Shielded | 6Ohm Max | - | 2.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
744777270FIXED IND 270UH 430MA 1.64OHM SM |
1,888 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±20% | 430 mA | 480mA | Shielded | 1.64Ohm Max | - | 4.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

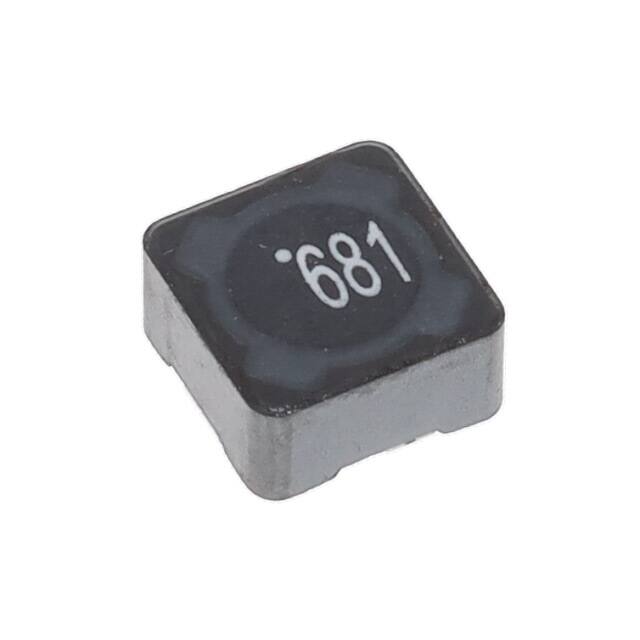

74477726FIXED IND 680UH 230MA 4.63OHM SM |
962 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 230 mA | 280mA | Shielded | 4.63Ohm Max | - | 2.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
7447779239FIXED IND 390UH 380MA 2.85OHM SM |
817 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 380 mA | 420mA | Shielded | 2.85Ohm Max | - | 3.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
HCM1103-R47-RFIXED IND 470NH 20A 2 MOHM SMD |
745 | - |
|
数据表 |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 20 A | 26A | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.118" (3.00mm) |
|
|
744777212FIXED IND 120UH 670MA 660MOHM SM |
586 | - |
|
数据表 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 670 mA | 700mA | Shielded | 660mOhm Max | - | 6.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
768775268FIXED IND 680UH 380MA 2.4OHM SMD |
488 | - |
|
数据表 |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 380 mA | 380mA | Unshielded | 2.4Ohm Max | - | 2.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
768775256FIXED IND 560UH 410MA 2.08OHM SM |
483 | - |
|
数据表 |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 410 mA | 410mA | Unshielded | 2.08Ohm Max | - | 2.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
PM2203.182NLTFIXED IND 1.8UH 10.1A 12.7 MOHM |
416 | - |
|
数据表 |
PM2203.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±20% | 10.1 A | 12.3A | Unshielded | 12.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
HCM1103-1R0-RFIXED IND 1UH 15A 6 MOHM SMD |
361 | - |
|
数据表 |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 15 A | 21A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.118" (3.00mm) |
|
HCM1A1307V2-1R0-RFIXED IND 1UH 28A 1.75 MOHM SMD |
354 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 28 A | 34A | Shielded | 1.75mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
HCM1A1307V2-6R8-RFIXED IND 6.8UH 10A 11.5MOHM SMD |
347 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 10 A | 15A | Shielded | 11.5mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
FPV1006-85-RFIXED IND 85NH 25A 0.41 MOHM SMD |
263 | - |
|
数据表 |
FPV1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 85 nH | ±10% | 25 A | 81A | Shielded | 0.41mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.382" L x 0.331" W (9.70mm x 8.40mm) | 0.252" (6.40mm) |
|
UP0.4C-220-RFIXED IND 22UH 760MA 360MOHM SMD |
0 | - |
|
数据表 |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 760 mA | 770mA | Unshielded | 360mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PE-53652NLTFIXED IND 9UH 5.5A 28 MOHM SMD |
2,330 | - |
|
数据表 |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 9 µH | - | 5.5 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
SPM10040T-3R3M-HZFIXED IND 3.3UH 15.3A 11MOHM SMD |
931 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 15.3 A | 8.2A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
PE-53606NLFIXED IND 114UH 940MA 405MOHM SM |
683 | - |
|
数据表 |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 114 µH | - | 940 mA | - | Unshielded | 405mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
IHLP5050EZERR47MA1IHLP-5050EZ-A1 .47 20% ER E3 |
200 | - |
|
数据表 |
IHLP-5050EZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 38 A | 65A | Shielded | 1.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
