钥匙锁开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 开关功能 | 触点时间 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 钥匙可拆卸位置 | 扳动角度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 面板开孔尺寸 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.15.108.572/0100SWITCH KEYLOCK 2POS 4PST 4A 250V |
0 | - |
|
数据表 |
LUMOTAST 75 | Box | Active | 4PST-2NO/2NC | 2 | On-Off, Off-On | Not Specified | 4A (AC), 200mA (DC) | 250 V | 230 V | Flat Key | Center | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 16.20mm Dia | IP40 | -25°C ~ 70°C |
|

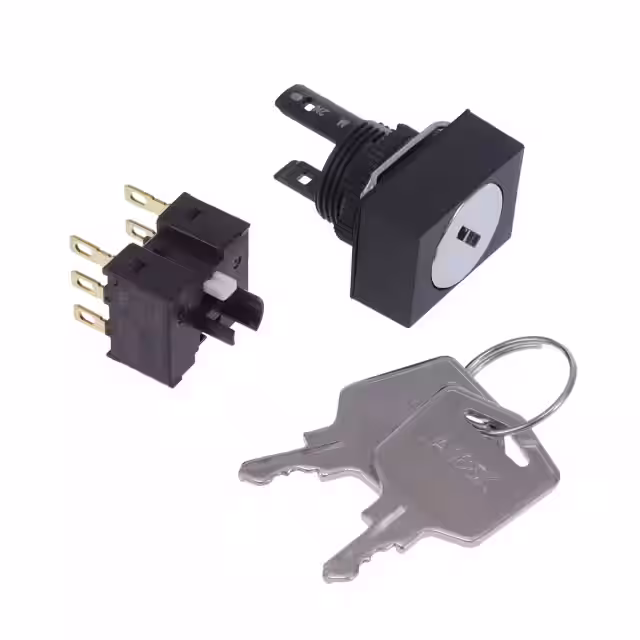

A165K-J2M-2SWITCH KEYLOCK 2POS DPDT 5A 125V |
1 | - |
|
数据表 |
A165K | Bulk | Active | DPDT | 2 | On-On | Not Specified | 5A (AC), 3A (DC) | 125 V | 30 V | Flat Key | All | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-A2AL-2SWITCH KEYLOCK 2POS DPDT 5A 125V |
0 | - |
|
数据表 |
A165K | Bulk | Active | DPDT | 2 | On-Mom | Not Specified | 5A (AC), 3A (DC) | 125 V | 30 V | Flat Key | Left | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-T3MC-2SWITCH KEYLOCK 3POS DPDT 5A 125V |
0 | - |
|
数据表 |
A165K | Bulk | Active | DPDT | 3 | On-On-On | Not Specified | 5A (AC), 3A (DC) | 125 V | 30 V | Flat Key | Center | 45° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A22TK-2LL-01-K01SWITCH KEYLCK 2POS SPST 10A 110V |
1 | - |
|
数据表 |
A22TK | Bulk | Active | SPST-NC | 2 | On-Off | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
A22TK-2LR-01-K01SWITCH KEYLCK 2POS SPST 10A 110V |
0 | - |
|
数据表 |
A22TK | Bulk | Active | SPST-NC | 2 | Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
A22TK-2LR-11-K01SWITCH KEYLCK 2POS DPST 10A 110V |
1 | - |
|
数据表 |
A22TK | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
A22TK-2LL-12-K01SWITCH KEYLCK 2POS DPST 10A 110V |
1 | - |
|
数据表 |
A22TK | Bulk | Active | DPST-NC + SPST-NO | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
A22TK-2RL-12-K01SWITCH KEYLCK 2POS DPST 10A 110V |
1 | - |
|
数据表 |
A22TK | Box | Active | DPST-NC + SPST-NO | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Right | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
A22TK-2LR-03-K01SWITCH KEYLCK 2POS 3PST 10A 110V |
1 | - |
|
数据表 |
A22TK | Bulk | Active | 3PST-NC | 2 | Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
|
A22TK-2LR-12-K01SWITCH KEYLCK 2POS DPST 10A 110V |
0 | - |
|
数据表 |
A22TK | Bulk | Active | DPST-NC + SPST-NO | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|

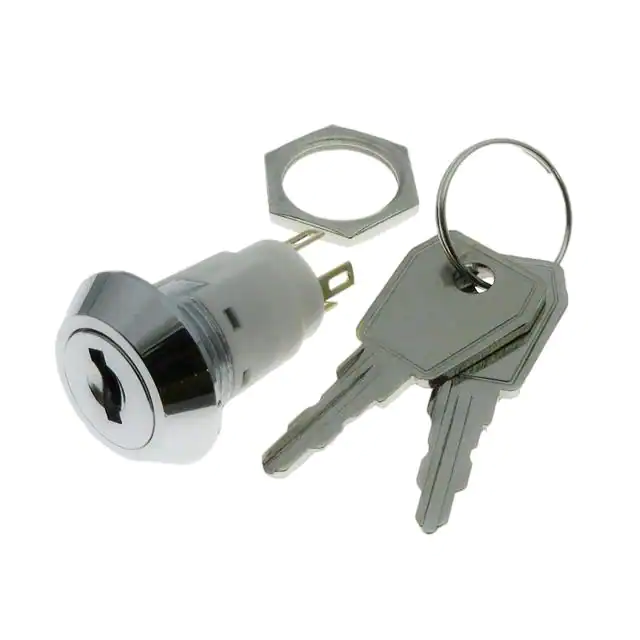

SW-R-K8-ASWITCH KEYLOCK 2POS SPDT 2A 125V |
0 | - |
|
数据表 |
SW | Bag | Active | SPDT | 2 | On-On | Not Specified | 2A (AC/DC) | 125 V | 28 V | Flat Key | All | - | - | - | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | -20°C ~ 85°C |
|

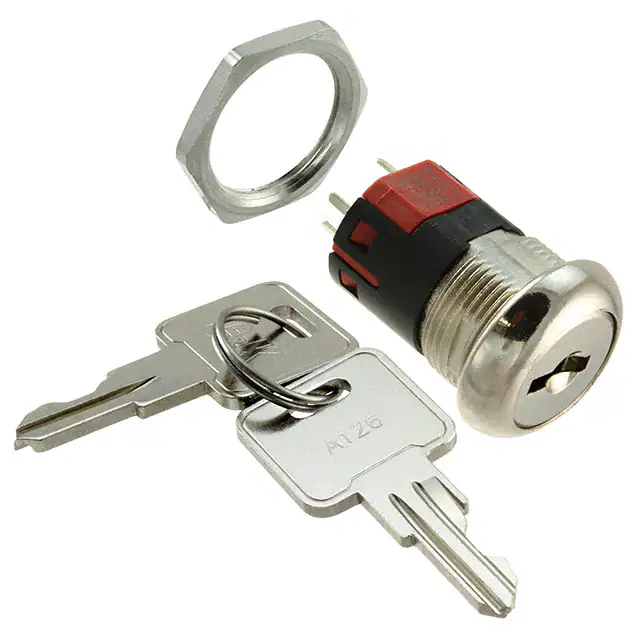

Y1011U2C202NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
2 | - |
|
数据表 |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | PC Pin | Circular - 19.30mm Dia | - | - |
|
Y201132C101RQSWITCH KEYLOCK 2POS DPDT 4A 125V |
1 | - |
|
数据表 |
Y | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
LK6HGB126M3SWITCH KEYLOCK 3POS DP3T 4A 125V |
0 | - |
|
数据表 |
LK | Bag | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
Y101132R203NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
0 | - |
|
数据表 |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | - |
|
LK6JGB126M3SWITCH KEYLOCK 3POS DP3T 4A 125V |
3 | - |
|
数据表 |
LK | Bag | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
Y201132CF03NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
0 | - |
|
数据表 |
Y | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|

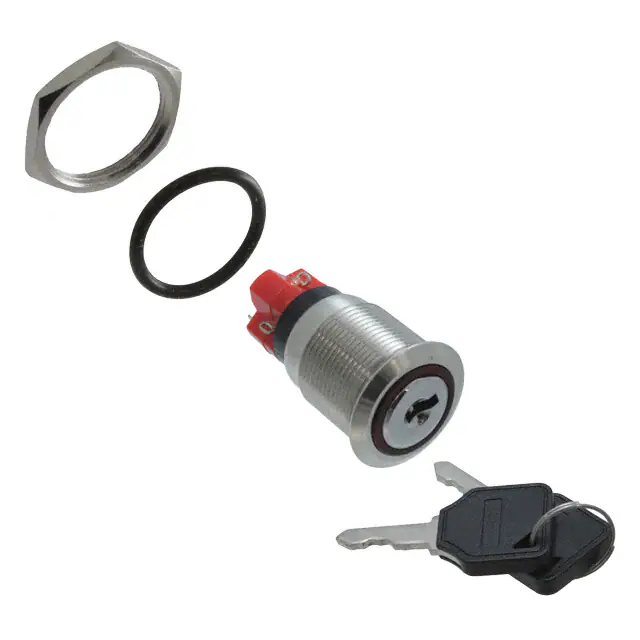

PV4K2T0S9SWITCH KEYLOCK 2POS DPST 2A 24V |
0 | - |
|
数据表 |
PV4, LAMB | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 2A (DC) | - | 24 V | Flat Key | All | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -25°C ~ 55°C |
|
|
1.15.108.941/0000SWITCH KEYLOCK 2POS DPST 4A 250V |
1 | - |
|
数据表 |
LUMOTAST 75 | Box | Active | DPST-NO/NC | 2 | On-Mom, Off-Mom | Not Specified | 4A (AC), 200mA (DC) | 250 V | 230 V | Flat Key | Center | 45° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 16.20mm Dia | IP40 | -25°C ~ 70°C |
