钥匙锁开关
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 开关功能 | 触点时间 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 钥匙可拆卸位置 | 扳动角度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 面板开孔尺寸 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.15.108.571/0100SWITCH KEYLOCK 2POS DPST 4A 250V |
1 | - |
|
数据表 |
LUMOTAST 75 | Box | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 4A (AC), 200mA (DC) | 250 V | 230 V | Flat Key | Center | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 16.20mm Dia | IP40 | -25°C ~ 70°C |
|
|
1.15.108.632/0100SWITCH KEYLOCK 2POS 4PST 4A 250V |
0 | - |
|
数据表 |
LUMOTAST 75 | Box | Active | 4PST-2NO/2NC | 2 | On-Off, Off-On | Not Specified | 4A (AC), 200mA (DC) | 250 V | 230 V | Flat Key | All | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 16.20mm Dia | IP40 | -25°C ~ 70°C |
|
A165K-A2ML-1SWITCH KEYLOCK 2POS SPDT 5A 125V |
1 | - |
|
数据表 |
A165K | Bulk | Active | SPDT | 2 | On-On | Not Specified | 5A (AC), 3A (DC) | 125 V | 30 V | Flat Key | Left | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-A3ML-2SWITCH KEYLOCK 3POS DPDT 5A 125V |
1 | - |
|
数据表 |
A165K | Bulk | Active | DPDT | 3 | On-On-On | Not Specified | 5A (AC), 3A (DC) | 125 V | 30 V | Flat Key | Left | 45° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65, Oil-Resistant | -10°C ~ 55°C |
|
45-190H.2000.111.101SWITCH KEYLCK 2POS SPST 10A 500V |
1 | - |
|
数据表 |
45 | Bulk | Active | SPST-NO | 2 | Off-On | Not Specified | 10A (AC/DC) | 500 V | 500 V | Flat Key | All | 90° | Silver (Ag) | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66, IP67, IP69K | -25°C ~ 70°C |
|
A22TK-2LR-21-K01SWITCH KEYLCK 2POS DPST 10A 110V |
1 | - |
|
数据表 |
A22TK | Bulk | Active | DPST-NO + SPST-NC | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
5926ON-OFF KEY LOCK SWITCH - 12MM DI |
14 | - |
|
- |
- | Bulk | Active | SPST | 2 | Off-On | Not Specified | 500mA (AC/DC) | 250 V | 250 V | Flat Key | All | 90° | - | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
|
|
5929MOMENTARY ON/OFF ROUND KEY LOCK |
24 | - |
|
- |
- | Bulk | Active | SPST | 2 | Off-On | Not Specified | - | - | - | Tubular Key | All | 90° | - | Silver | Panel Mount | Wire Leads | Circular - 12.00mm Dia | - | - |
|
|
5927ON/OFF ROUND KEY LOCK - 12MM DIA |
20 | - |
|
- |
- | Bulk | Active | SPST | 2 | Off-On | Not Specified | - | - | - | Tubular Key | All | 90° | - | Silver | Panel Mount | Wire Leads | Circular - 12.00mm Dia | - | - |
|
A22NK-2BM-01BA-G101SWITCH KEYLCK 2POS DPST 10A 120V |
1 | - |
|
数据表 |
A22NK | Bulk | Active | DPST-NO | 2 | Off-On | Not Specified | 10A (AC), 8A (DC) | 120 V | 24 V | Flat Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 | -25°C ~ 70°C |
|
|
M-489-BXSWITCH KEYLOCK 2POS 5A 36V |
0 | - |
|
数据表 |
- | Bulk | Active | - | 2 | Off-On | Not Specified | 5A (DC) | - | 36 V | Flat Key | 1 only | - | - | - | Panel Mount | Screw Terminal | - | - | - |
|
|
956-3127-BXSWITCH KEYLOCK 3POS 10A |
0 | - |
|
- |
956 | Bulk | Active | - | 3 | Off-On-Mom | Not Specified | 10A (AC) | - | 12 V | Flat Key | 1 only | - | Bronze | - | Panel Mount | Screw Terminal | - | - | - |
|
|
M-550-BXSWITCH KEYLOCK 3POS 5A 36V |
0 | - |
|
数据表 |
- | Bulk | Active | - | 3 | - | Not Specified | 5A (DC) | - | 36 V | Flat Key | 1 only | - | - | - | Panel Mount | Screw Terminal | - | - | - |
|

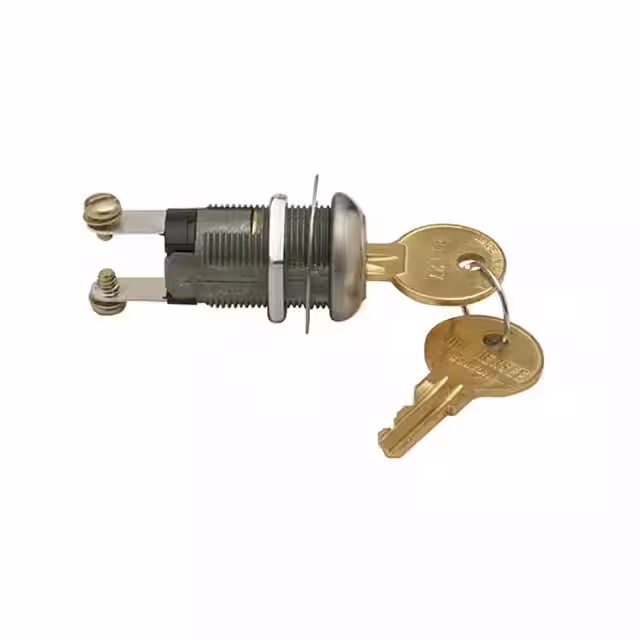

9622-01SWITCH KEYLOCK 2POS 5A 12V |
4 | - |
|
数据表 |
95 | Bulk | Active | - | 2 | Off-On | Not Specified | 5A (DC) | - | 12 V | Flat Key | 1 only | - | Bronze | - | Panel Mount | Screw Terminal | - | - | - |
|
|
51-401.036DSWITCH KEYLK 2POS DPST 100MA 42V |
1 | - |
|
数据表 |
51 | Bulk | Active | DPST-NO | 2 | Off-On | Not Specified | 100mA (AC/DC) | 42 V | 42 V | Flat Key | All | 90° | - | - | Panel Mount | PC Pin, Solder Lug | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
|
|
M22-WRS-K11M22-WRS/K11 COMPLETE DEVICE FRO |
0 | - |
|
- |
M22 | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 6A (AC), 3A (DC) | 115 V | 24 V | Flat Key | All | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.50mm Dia | - | -25°C ~ 70°C |
|
|
51-414.036DFACTUATOR, 25 MM, 2 NO, REST (A) |
1 | - |
|
数据表 |
51 | Bag | Active | DPST-NO | 2 | Off-On | - | 100mA (AC/DC) | 42 V | 42 V | Flat Key | Right | 90° | Gold (Au) | Gold | Panel Mount | PC Pin, Solder Lug | Circular - 22.30mm Dia | IP65 | -25°C ~ 55°C |
|

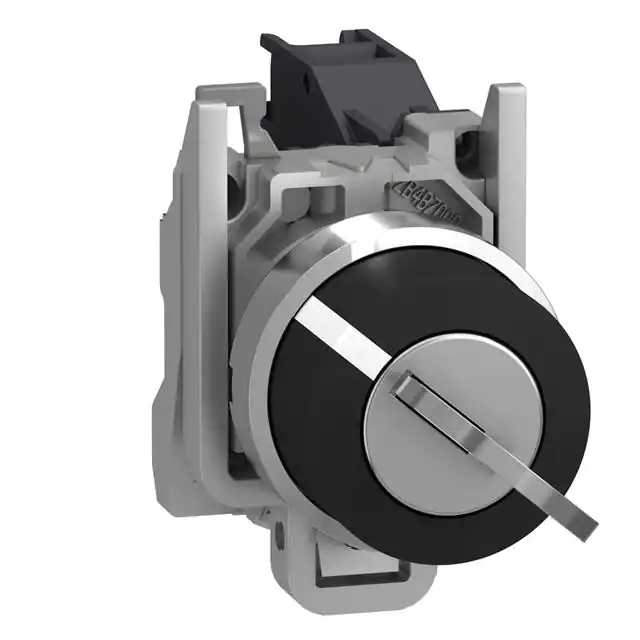

XB4BG21SWITCH KEYLOCK 2POS SPST 6A 120V |
0 | - |
|
数据表 |
Harmony XB4 | Box | Active | SPST-NO | 2 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | Left and Right | 90° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|
XB5AG21SWITCH KEYLOCK 2POS SPST 6A 120V |
0 | - |
|
数据表 |
Harmony XB5 | Box | Active | SPST-NO | 2 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | Left | 90° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|
|
XB4BG41SWITCH KEYLOCK 2POS SPST 6A 120V |
1 | - |
|
数据表 |
Harmony XB4 | Box | Active | SPST-NO | 2 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | All | 90° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
