直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM4606IYDC DC CONVERTER 0.6-5V 30W |
70 | - |
|
数据表 |
µModule® | 133-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5V | - | - | - | 6A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 125°C | 93% | - | - | Surface Mount | 133-BGA (15x15) | - | - | - | |
|
LTM4686BIV#PBFULTRATHIN DUAL 14A OR SINGLE 28A |
199 | - |
|
数据表 |
LTM®, uModule® | 108-LGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.75V | 0.5 ~ 3.6V | - | - | - | 17A | - | - | ITE (Commercial) | Adjustable Output, Load Sharing, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C | - | - | - | Surface Mount | 108-LGA (16x11.9) | - | - | - | |
|
AXA02B36-LDC DC CONVERTER 12V 25W |
101 | - |
|
数据表 |
AXA (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 2.09A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - | |
|
TRI 6-1222DC DC CONVERTER +/-12V 6W |
27 | - |
|
数据表 |
TRI 6 (6W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 9 kV | ITE (Commercial) | - | -40°C ~ 95°C | 87% | - | - | Through Hole | - | - | CB, cURus | - | |
|
|
LTM4601AHVEY#PBFDC DC CONVERTER 0.6-5V |
91 | - |
|
数据表 |
µModule® | 133-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5V | - | - | - | 12A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 133-BGA (15x15) | - | - | - | |
|

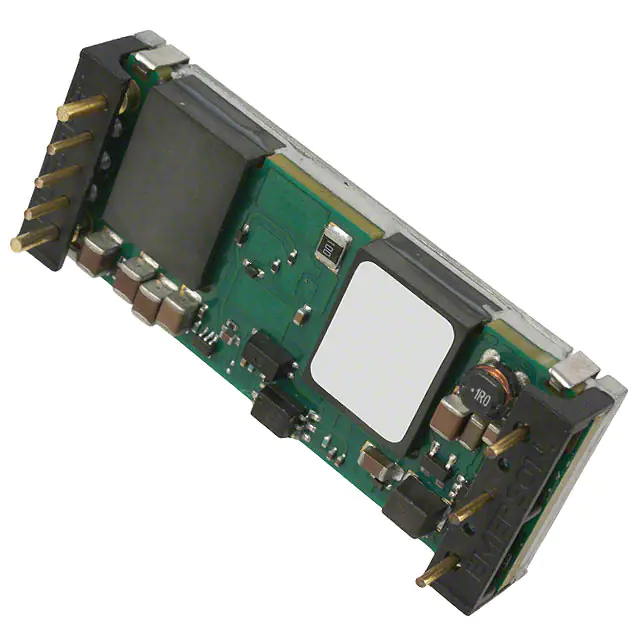

AEO20A48N-LDC DC CONVERTER 5V 120W |
197 | - |
|
数据表 |
AEO40 (100W) | 8-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 120 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 100°C | 92% | - | - | Through Hole | - | - | - | - | |
|
AVD200-48S12-6L12V 200W SIXTEENTH BRICK |
190 | - |
|
数据表 |
AVD200-48S12 (200W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 17A | 204 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 93.9% | - | - | Through Hole | Sixteenth Brick | - | CE, CSA, TUV, UL | 62368-1 | |
|
LTM4675IYDC DC CNVRTR 0.5-5.5V 0.5-5.5V |
411 | - |
|
数据表 |
µModule® | 108-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 17V | 0.5 ~ 5.5V | 0.5 ~ 5.5V | - | - | 9A, 9A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 108-BGA (16x11.9) | - | - | - | |
|
UEI30-150-Q12P-CDC DC CONVERTER 15V 30W |
273 | - |
|
数据表 |
UEI30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 87.5% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
THN 20-4822DC DC CONVERTER +/-12V 20W |
57 | - |
|
数据表 |
THN 20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 75°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|
MTWA4-12S24DC/DC CONVERTER 4 WATTS MEDICAL |
30 | - |
|
数据表 |
MTWA4 (3.5W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 146mA | 3.5 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, UL | - | |
|
THR 20-2412WI20 WATT DC/DC CONVERTER, INDUSTR |
29 | - |
|
数据表 |
THR 20WI (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 87% | - | - | Through Hole | - | - | CB, cURus | 62368-1 | |
|
|
PRC10W-72-D15DC-DC ISOLATED, 10 W, 8.5~160 VD |
28 | - |
|
数据表 |
PRC10W (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 8.5V | 160V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 4.2 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | - | - | CB, cURus, EN, IEC, UKCA, UL | 62368-1 | |
.jpg)
|
REC6-0505SRW/R10/ADC DC CONVERTER 5V 6W |
30 | - |
|
数据表 |
ECONOLINE REC6/R (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1A | 6 W | 10 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 77% | - | - | Through Hole | - | - | - | - | |
|
TON 15-2413WIDC DC CONVERTER 15V 15W |
60 | - |
|
数据表 |
TON 15WI (15W) | 6-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1A | 15 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
|
AVD200-48S12P-6L12V 200W SIXTEENTH BRICK |
78 | - |
|
数据表 |
AVD200-48S12 (200W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 17A | 204 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 93.9% | - | - | Through Hole | Sixteenth Brick | - | CE, CSA, TUV, UL | 62368-1 | |
|

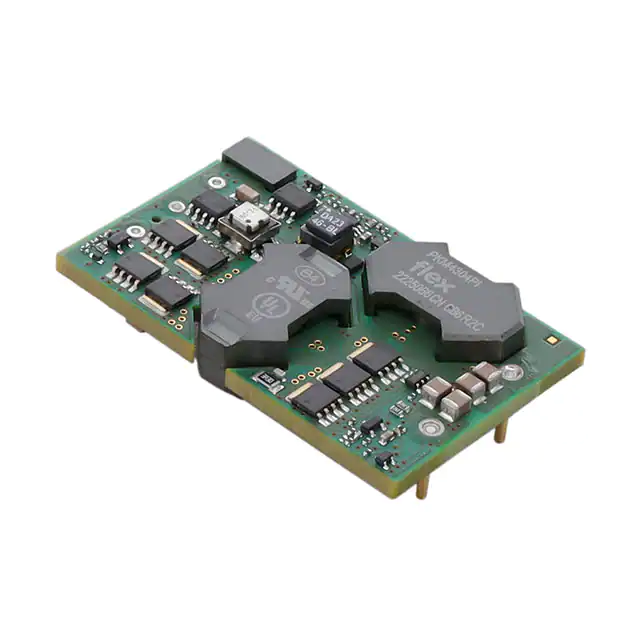

PKM4304PIDC DC CONVERTER 12V 396W |
45 | - |
|
数据表 |
PKM 4304 (396W) | Quarter Brick | Tray | Active | Intermediate Bus Converter | 1 | 40V | 75V | 12V | - | - | - | 33A | 396 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 90°C (With Derating) | 96.7% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
|
2DD151008CDC DC CONVERTER 15V -10V 4W |
120 | - |
|
数据表 |
- | 10-DIP Module | Bulk | Active | Isolated Module | 2 | 13.5V | 26.4V | 15V | -10V | - | - | 160mA, 160mA | 4 W | 5 kV | Industrial | - | -40°C ~ 85°C (With Derating) | 80.5% | - | - | Through Hole | - | - | - | - | |
|
|
2DD180206CDC DC CONVERTER 18V -2V 3.2W |
29 | - |
|
数据表 |
- | 10-DIP Module | Bulk | Active | Isolated Module | 2 | 13.5V | 26.4V | 18V | -2V | - | - | 160mA, 160mA | 3.2 W | 5 kV | Industrial | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
LTM4643MPV#PBFDC DC CONVERTER 3X0.6-3.3V |
56 | - |
|
数据表 |
µModule® | 77-LGA Module | Tray | Active | Non-Isolated PoL Module | 4 | 4V | 20V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | - | 3A, 3A, 3A, 3A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -55°C ~ 125°C | - | - | - | Surface Mount | 77-LGA (15x9) | - | - | - |
