直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0RQB-50Y12LGDC-DC 24-110V IN 12V 4.2A OUT 50 |
64 | - |
|
数据表 |
0RQB-50Y12x (50W) | Quarter Brick | Tray | Active | Isolated Module, Conformal Coated | 1 | 14.4V | 154V | 12V | - | - | - | 4.2A | 50 W | 3 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CSA, UL | 62368-1 | |
|
MHB75-12S24DC DC CONVERTER 24V 75W |
57 | - |
|
数据表 |
MHB75 (75W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 3.13A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | Half Brick | - | - | - | |
|
TVN 5-2413WIDC DC CONVERTER 15V 5W |
33 | - |
|
数据表 |
TVN 5WI (5W) | 24-DIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 333mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - | |
|

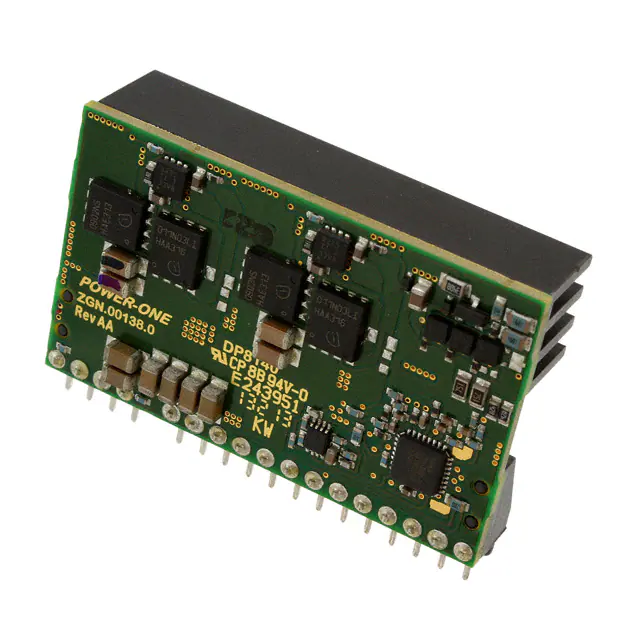

DP8140G-T050DC DC CONVERTER 0.7-5.5V |
130 | - |
|
数据表 |
dPWER® | 18-SIP Module, 17 Leads | Tray | Active | Non-Isolated PoL Module, Digital | 1 | 8V | 14V | 0.7 ~ 5.5V | - | - | - | 40A | - | - | ITE (Commercial) | Digital, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - | - | |
|
ERM01H110DC DC CONVERTER 24V 20W |
50 | - |
|
数据表 |
ERM (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 40V | 160V | 24V | - | - | - | 833mA | 20 W | 3 kV | Railway | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 6-DIP | - | - | - | |
|

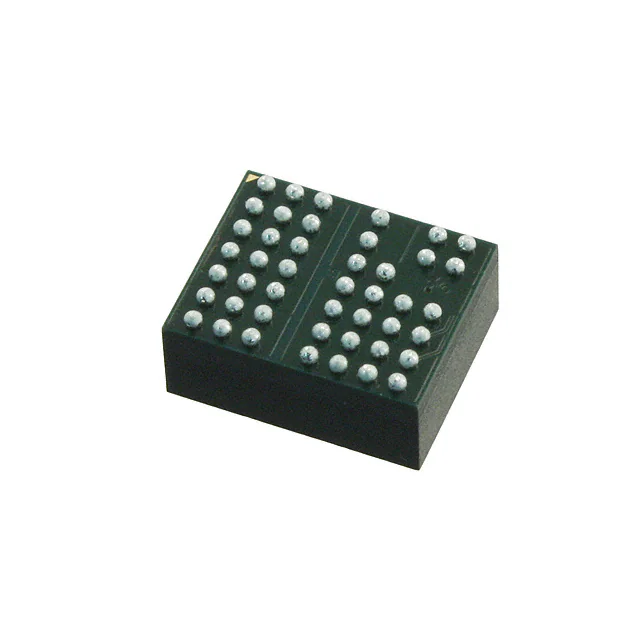

LTM8048MPYDC DC CONVERTER 2.5-13V 1.2-12V |
146 | - |
|
数据表 |
µModule® | 45-BBGA Module | Tray | Active | Isolated Module | 2 | 3.1V | 32V | 2.5 ~ 13V | 1.2 ~ 12V | - | - | 440mA, 300mA | - | 725 V | ITE (Commercial) | - | -55°C ~ 125°C | - | - | - | Surface Mount | 45-BGA (11.25x9) | - | - | - | |
|
LTM4616IYDC DC CONVERTER 0.6-5V 0.6-5V |
66 | - |
|
数据表 |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 2.7V | 5.5V | 0.6 ~ 5V | 0.6 ~ 5V | - | - | 8A, 8A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 144-BGA (15x15) | - | - | - | |
|
LTM8033MPV#PBFDC DC CONVERTER 0.8-24V |
9 | - |
|
数据表 |
µModule® | 76-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 36V | 0.8 ~ 24V | - | - | - | 3A | - | - | ITE (Commercial) | - | -55°C ~ 125°C | - | - | - | Surface Mount | 76-LGA (15x11.25) | - | - | - | |
|
TEN 15-4823DC DC CONVERTER +/-15V 15W |
71 | - |
|
数据表 |
TEN 15 (15W) | 5-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - | |
|
JTM2024D05DC DC CONVERTER +/-5V 20W |
43 | - |
|
数据表 |
JTM (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 2A, 2A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 89% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
LTM8028IYDC DC CONVERTER 0.8-1.8V 9W |
119 | - |
|
数据表 |
µModule® | 114-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 0.8 ~ 1.8V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 114-BGA (15x15) | - | - | - | |
|
LTM4656IY-128VIN, 36VOUT SYNCHRONOUS BOOST |
72 | - |
|
数据表 |
- | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 6 ~ 36V | - | - | - | 4A | - | - | ITE (Commercial) | Adjustable Output, Load Sharing | -40°C ~ 125°C | 98% | - | - | Surface Mount | 144-BGA (16x16) | - | - | - | |
|
|
LTM4656IY28VIN, 36VOUT SYNCHRONOUS BOOST |
70 | - |
|
数据表 |
- | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 6 ~ 36V | - | - | - | 4A | - | - | ITE (Commercial) | Adjustable Output, Load Sharing | -40°C ~ 125°C | 98% | - | - | Surface Mount | 144-BGA (16x16) | - | - | - | |
|
LTM8058MPYDC DC CONVERTER 2.3-13V 1.2-12V |
179 | - |
|
数据表 |
µModule® | 38-BBGA Module | Tray | Active | Isolated Module | 2 | 3.1V | 31V | 2.3 ~ 13V | 1.2 ~ 12V | - | - | 440mA, 300mA | - | 3 kV | ITE (Commercial) | UVLO | -55°C ~ 125°C | - | - | - | Surface Mount | 38-BGA (11.25x9) | - | - | - | |
|
|
LTM4645IYIC REG BUCK ADJUSTABLE 25A 77BGA |
0 | - |
|
数据表 |
- | 77-BBGA Module | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 4.7V | 15V | 0.6 ~ 1.8V | - | - | - | 25A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 125°C | 86% | - | - | Surface Mount | 77-BGA (15x9) | - | - | - | |
|
THP 3-4812DC DC CONVERTER 12V 3W |
98 | - |
|
数据表 |
THP 3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 80V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
|
THL 25-4812DC DC CONVERTER 12V 25W |
32 | - |
|
数据表 |
THL 25 (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 2.09A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|
RP15-2412SA/PDC DC CONVERTER 12V 15W |
7 | - |
|
数据表 |
POWERLINE RP15-A (15W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
RP15-4805SAWDC DC CONVERTER 5V 15W |
51 | - |
|
数据表 |
POWERLINE RP15-AW (15W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
|
Q48SC12050NRDHDC DC CONVERTER 12V 600W |
84 | - |
|
数据表 |
Delphi Q48SC (600W) | 16-DIP Module, 1/4 Brick | Tray | Not For New Designs | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 50A | 600 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 94.2% | - | - | Through Hole | - | Enable, Active Low | - | - |
