直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM4650IYDC DC CNVRTR 0.6-1.8V 0.6-1.8V |
71 | - |
|
数据表 |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 15V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | - | - | 25A, 25A | - | - | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 144-BGA (16x16) | Enable, Active High | - | - | |
|

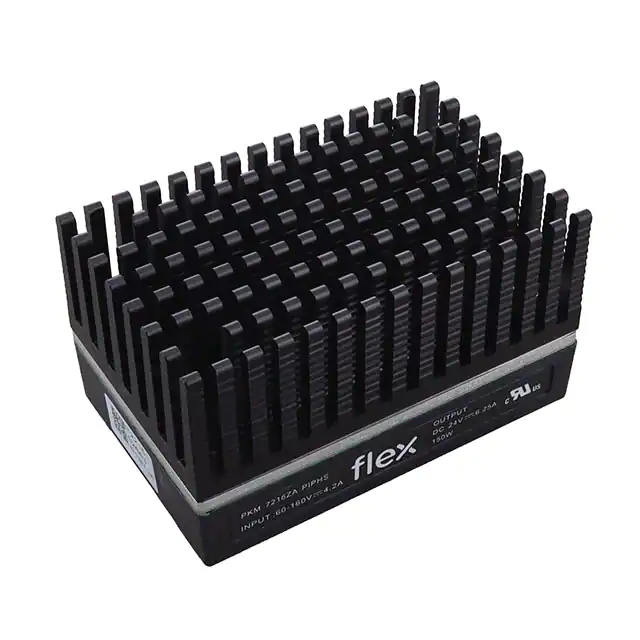

PKM7216ZAPIPHSDC DC CONVERTER 24V 150W |
104 | - |
|
数据表 |
PKM 7000A (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 66V | 160V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 88% | - | - | Through Hole | Quarter Brick | Enable, Active High | CB, CSA, EN, IEC, TUV, UL | 50155; 62368-1 | |
|
TEN 60-1222NDC DC CONVERTER +/-12V 60W |
44 | - |
|
数据表 |
TEN 60N (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 2.5A, 2.5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | Module | - | - | - | |
|
UMHVP-1210NHV DC-DC CONVERTER, 12V IN, -1KV |
64 | - |
|
数据表 |
UMHVP | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0V | 12V | -1000V | - | - | - | 500µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | - | - | Through Hole | - | - | - | - | |
|
|
H80SV12008PRFSDC DC CONVERTER 12V 102W |
100 | - |
|
数据表 |
H80SV (100W) | Half Brick | Tray | Active | Isolated Module | 1 | 16.8V | 137.5V | 12V | - | - | - | 8.5A | 102 W | 4.242 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | Half Brick | Enable, Active High | - | - | |
|
|
LTM4650EY-1B#PBFDC DC CNVRTR 0.6-1.8V 0.6-1.8V |
546 | - |
|
数据表 |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 15V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | - | - | 25A, 25A | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 144-BGA (16x16) | Enable, Active High | - | - | |
|
LTM4650AEV#PBFDC DC CNVRTR 0.6-5.5V 0.6-5.5V |
49 | - |
|
数据表 |
µModule® | 144-BLGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 16V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | - | - | 25A, 25A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 144-LGA (16x16) | Enable, Active High | - | - | |
|
GQA2W005A240V-N07-RDC DC CONVERTER 24V 120W |
29 | - |
|
数据表 |
GQA120 (120W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 5A | 120 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 105°C | 87% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE | - | |
|
GQA24003A480V-007-RDC DC CONVERTER 48V 120W |
28 | - |
|
数据表 |
GQA120 (120W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 48V | - | - | - | 2.5A | 120 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 105°C | 91.5% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE | - | |
|
LTM4627MPYDC DC CONVERTER 0.6-5V 75W |
0 | - |
|
数据表 |
µModule® | 133-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.6 ~ 5V | - | - | - | 15A | - | - | ITE (Commercial) | OCP, OVP | -55°C ~ 125°C | 93% | - | - | Surface Mount | 133-BGA (15x15) | - | - | - | |
|
PTQA420050P2ADDC DC CONVERTER 5V 100W |
40 | - |
|
数据表 |
PTQA420050 (100W) | 8-DIP Module, 1/4 Brick | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 100 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 92.5% | - | - | Through Hole | - | - | - | - | |
|
TEN 60-2423WIRDC DC CONVERTER +/-15V 60W |
26 | - |
|
数据表 |
TEN 60WIR (60W) | 8-DIP Module | Box | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 2A, 2A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | - | - | |
|
LTM4620AMPYDC DC CNVRTR 0.6-5.3V 0.6-5.3V |
121 | - |
|
数据表 |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 16V | 0.6 ~ 5.3V | 0.6 ~ 5.3V | - | - | 13A, 13A | - | - | ITE (Commercial) | OCP, OVP | -55°C ~ 125°C | - | - | - | Surface Mount | 144-BGA (15x15) | - | - | - | |
|

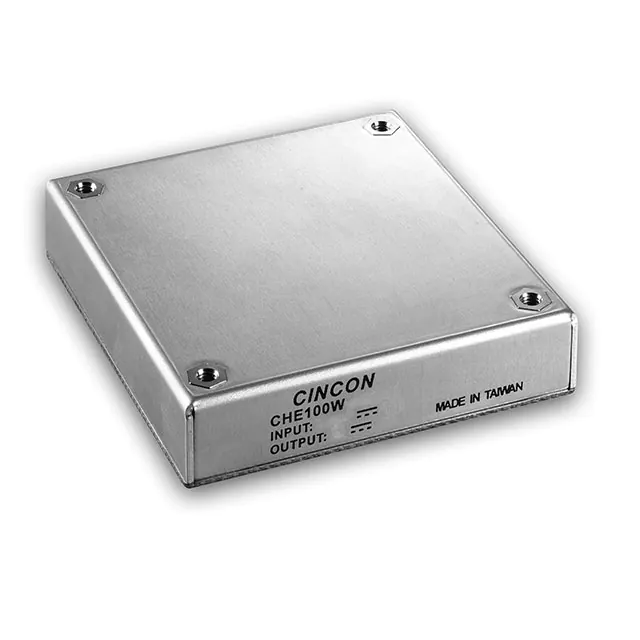

CHE100W-24S05DC DC CONVERTER 5V 100W |
26 | - |
|
数据表 |
CHE100W (100W) | Half Brick | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 20A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 89.5% | - | - | Through Hole | Half Brick | Enable, Active High | CE | 60950-1 | |
|
VHE100W-Q24-S12DC DC CONVERTER 12V 100W |
87 | - |
|
数据表 |
VHE100W (100W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 8.4A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C | 90.5% | - | - | Through Hole | - | Enable, Active High | EN | - | |
|
|
QM48T45033-NBB0GDC DC CONVERTER 3.3V 149W |
28 | - |
|
数据表 |
QmaX™ | 8-DIP Module, 1/4 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 45A | 149 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90.5% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
VHE100W-Q24-S48DC DC CONVERTER 48V 100W |
76 | - |
|
数据表 |
VHE100W (100W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 48V | - | - | - | 2.1A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C | 88.5% | - | - | Through Hole | - | Enable, Active High | EN | - | |
|
|
AGF800-48S28-6LDC DC CONVERTER 28V 800W |
102 | - |
|
数据表 |
AGF800 (800W) | 14-DIP Module, Full Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 28.6A | 800 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | - | - | - | - | |
|
VHB200W-Q48-S12DC DC CONVERTER 12V 200W |
61 | - |
|
数据表 |
VHB200W (200W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 16.7A | 200 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 88% | - | - | Through Hole | - | Enable, Active High | EN, UL | 55024; 55032 Class A; 60950-1 | |
|
|
VHB200W-Q48-S28DC DC CONVERTER 28V 200W |
41 | - |
|
数据表 |
VHB200W (200W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 18V | 75V | 28V | - | - | - | 7.14A | 200 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 88% | - | - | Through Hole | - | Enable, Active High | EN, UL | 55024; 55032 Class A; 60950-1 |
