直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q80SV05030PRFS14.4-170VIN, 5VOUT, 150W, EN5015 |
90 | - |
|
数据表 |
Q80SV_150W (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 14.4V | 170V | 5V | - | - | - | 30A | 150 W | 4.242 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 88.3% | - | - | Through Hole | Quarter Brick | Enable, Active High | EN, UL | 60950-1; 62368-1 | |
|

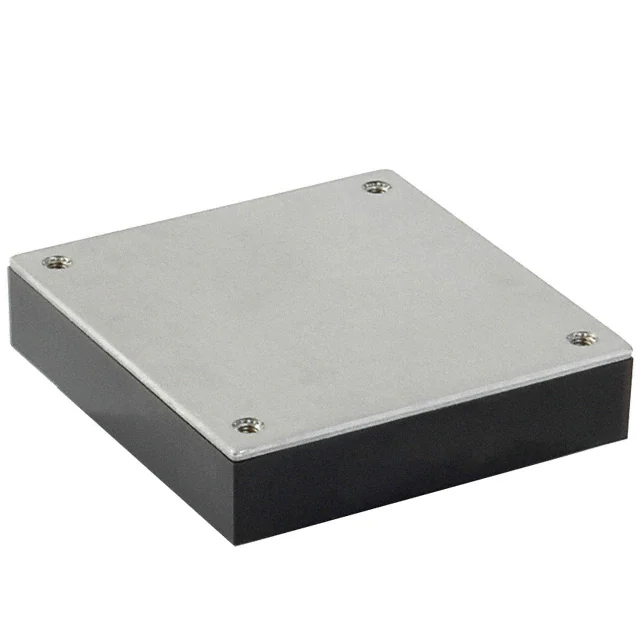

VHB150W-Q24-S48DC DC CONVERTER 48V 150W |
64 | - |
|
数据表 |
VHB150W (150W) | 9-DIP Module, 1/2 Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 48V | - | - | - | 3.12A | 150 W | 1.5 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 100°C | 84% | - | - | Through Hole | Half Brick | Enable, Active High | EN, UL | 55032 Class A; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-3 | |
|
CHB200W12-72S15NDC DC CONVERTER 15V 200W |
40 | - |
|
数据表 |
CHB200W12 (200W) | Half Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 15V | - | - | - | 13.5A | 200 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | - | - | Through Hole | Half Brick | Enable, Active Low | CB, CE, cURus | 50155; 62368-1 | |
|
IRQ-54/2.8-W80NB-C16V-160V I/P , 54V 150W O/P, NEG |
42 | - |
|
数据表 |
IRQ-W80 (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 16V | 160V | 24V | - | - | - | 2.8A | 67 W | 4.242 kV | ITE (Commercial), Railway | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, cURus | 60950-1 | |
|
LTM4650MPYDC DC CNVRTR 0.6-1.8V 0.6-1.8V |
30 | - |
|
数据表 |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 15V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | - | - | 25A, 25A | - | - | ITE (Commercial) | OCP, OVP, SCP, UVLO | -55°C ~ 125°C | - | - | - | Surface Mount | 144-BGA (16x16) | Enable, Active High | - | - | |
|
AIH50Y300N-LDC DC CONVERTER 1.8V 250W |
35 | - |
|
数据表 |
AIH (250W) | Module | Bulk | Active | Isolated Module | 1 | 250V | 420V | 1.8V | - | - | - | 50A | 250 W | - | ITE (Commercial) | OVP | -20°C ~ 100°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
AIH16C300N-LDC DC CONVERTER 15V 250W |
30 | - |
|
数据表 |
AIH (250W) | Module | Bulk | Active | Isolated Module | 1 | 250V | 420V | 15V | - | - | - | 16.6A | 250 W | - | ITE (Commercial) | OVP | -20°C ~ 100°C | 90% | - | - | Through Hole | - | - | - | - | |
|
PHV12-0.5K10000NRDC DC CONVERTER -500V 5W |
26 | - |
|
数据表 |
PHV (5W) | 7-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 16.5V | -500V | - | - | - | 10mA | 5 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 50°C (With Derating) | 72% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
PHV12-350S10PRDC DC CONVERTER 350V 3.5W |
52 | - |
|
数据表 |
PHV (3.5W) | 7-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 16.5V | 350V | - | - | - | 10mA | 3.5 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 50°C (With Derating) | 68% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
IRH-54/4.7-W80PB-C16V - 160V DC I/P, 54V 250W O/P, |
60 | - |
|
数据表 |
IRH-W80 (250W) | Half Brick | Tray | Active | Isolated Module | 1 | 16V | 160V | 54V | - | - | - | 4.7A | 254 W | 4.242 kV | ITE (Commercial), Railway | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 90.5% | - | - | Through Hole | Half Brick | Enable, Active High | CE, cURus | 60950-1 | |
|
24IMX70-12-0TGDC DC CONVERTER 12V 84W |
40 | - |
|
数据表 |
Melcher IMX70 (70W) | 19-DIP Module, 17 Leads | Bulk | Active | Isolated Module, Conformal Coated | 1 | 15V | 33.6V | 12V | - | - | - | 7A | 84 W | 2.1 kV | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 95°C | 90% | - | - | Through Hole | - | - | - | - | |
|
DCM3623TA5N31B4T70DC DC CONVERTER 28V 240W |
35 | - |
|
数据表 |
VI Chip® DCM® (240W) | 9-DIP Module | Bulk | Active | Isolated Module | 1 | 43V | 154V | 28V | - | - | - | 8.6A | 240 W | 3 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 92.7% | - | - | Through Hole | - | - | - | - | |
|
|
PYH200-72WS24DC DC CONVERTER 24V 200W |
105 | - |
|
数据表 |
PYH200 (200W) | Half Brick | Tray | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 8.4A | 202 W | 4.2 kV | ITE (Commercial), Railway | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | Half Brick | Enable, Active High | CE, UKCA | 62368-1 | |
|
|
PHV12-1.0K5000NRDC DC CONVERTER -1000V 5W |
48 | - |
|
数据表 |
PHV (5W) | 7-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 16.5V | -1000V | - | - | - | 5mA | 5 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 50°C (With Derating) | 72% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
AIH40A300N-LDC DC CONVERTER 5V 250W |
25 | - |
|
数据表 |
AIH (250W) | Module | Bulk | Active | Isolated Module | 1 | 250V | 420V | 5V | - | - | - | 40A | 250 W | - | ITE (Commercial) | OVP | -20°C ~ 100°C | 88% | - | - | Through Hole | - | - | - | - | |
|
HQA2W120W150V-N07-SDC DC CONVERTER 15V 120W |
30 | - |
|
数据表 |
HQA120 (120W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 40V | 15V | - | - | - | 8A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 115°C | 89% | - | - | Through Hole | - | Enable, Active Low | CE | - | |
|
AIF40C300N-LDC DC CONVERTER 15V 600W |
45 | - |
|
数据表 |
AIF (600W) | Module | Bulk | Active | Isolated Module | 1 | 250V | 420V | 15V | - | - | - | 40A | 600 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP | -20°C ~ 100°C | 90% | - | - | Through Hole | - | - | - | - | |
|
HQA2W120W240V-N07-MDC-DC CONVERTER 24V 120W |
38 | - |
|
数据表 |
HQA120 (120W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 40V | 24V | - | - | - | 5A | 120 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -55°C ~ 115°C | 87% | - | - | Through Hole | Quarter Brick | - | CE, CSA, UL | 60950-1; 62368-1 | |
|
HQA2W120W280V-007-MDC DC CONVERTER 28V 120W |
34 | - |
|
数据表 |
HQA120 (120W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 40V | 28V | - | - | - | 4.2A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP | -55°C ~ 115°C | 89% | - | - | Through Hole | - | Enable, Active Low | CE | - | |
|
|
HQA2W120W120V-007-MDC-DC CONVERTER 12V 120W |
34 | - |
|
数据表 |
HQA120 (120W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 40V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -55°C ~ 115°C | 90% | - | - | Through Hole | Quarter Brick | - | CE, CSA, UL | 60950-1; 62368-1 |
