直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IF1215XT-1WR3DC-DC ISOLATED 1 W 11.4~12.6V |
480 | - |
|
数据表 |
IF XT-1WR3 | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 11.4V | 12.6V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 71% | - | - | Surface Mount | - | - | CE, UKCA | 62368-1 | |
|
|
IF1212XT-1WR3-TRDC-DC ISOLATED 1 W 11.4~12.6V |
434 | - |
|
数据表 |
IF XT-1WR3-TR | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 11.4V | 12.6V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 71% | - | - | Surface Mount | - | - | CE | 62368-1 | |
|
|
IF1505XT-1WR3DC-DC ISOLATED 1 W 14.25~15.75V |
360 | - |
|
数据表 |
IF XT-1WR3 | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 14.25V | 15.75V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 68% | - | - | Surface Mount | - | - | CE | 62368-1 | |
|

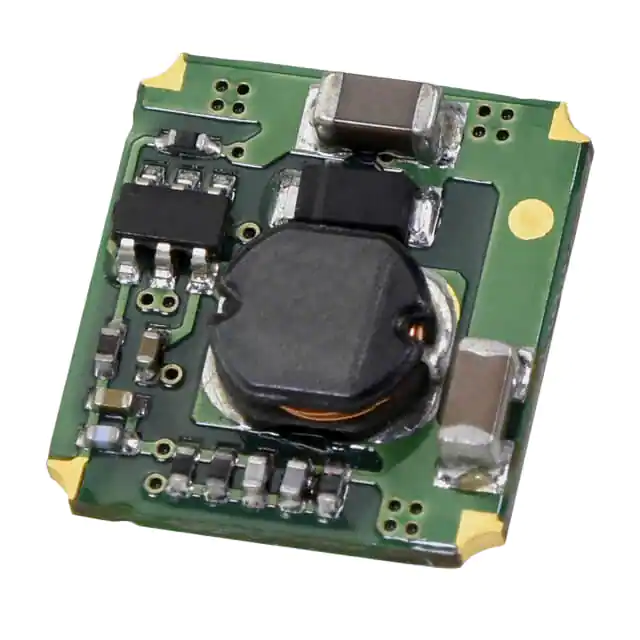

VXO7809-500-M-TRDC DC CONVERTER 9V 4.5W |
1,630 | - |
|
数据表 |
VXO78-500-M | 4-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 12V | 36V | 9V | - | - | - | 500mA | 4.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A | |
|
|
VXO7803-500-M-TRDC DC CONVERTER 3.3V 1.7W |
261 | - |
|
数据表 |
VXO78-500-M | 4-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 4.75V | 36V | 3.3V | - | - | - | 500mA | 1.7 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A | |
|
B1205M-2WR3DC DC CONVERTER 5V 2W |
379 | - |
|
数据表 |
B1205M-2WR3 (2W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
B0509M-2WR3DC DC CONVERTER 9V 2W |
174 | - |
|
数据表 |
B0509M-2WR3 (2W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 222mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - | |
|
B0512M-2WR3DC DC CONVERTER 12V 2W |
159 | - |
|
数据表 |
B0512M-2WR3 (2W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - | |
|
B1203M-2WR3DC DC CONVERTER 3.3V 2W |
135 | - |
|
数据表 |
B1203M-2WR3 (2W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 400mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - | |
|
|
XDL604B75D82-QAUTOMOTIVE GRADE 18V/0.5A INDUCT |
189 | - |
|
- |
XDL604 | 13-PowerLFDFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 3V | 18V | 1 ~ 5 V | - | - | - | 500mA | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 81% | - | - | Surface Mount, Wettable Flank | DFN3625-11A | - | - | - | |
|
|
IF0505XT-1WR3DC-DC ISOLATED 1 W 4.75~5.25V |
214 | - |
|
数据表 |
IF05_XT-1WR3 | 10-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 69% | - | - | Surface Mount | - | - | CE, UKCA | 62368-1 | |
|
F0303XT-1WR3DC DC CONVERTER 3.3V 1W |
295 | - |
|
数据表 |
F0303XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tray | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 303mA | 999 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 77% | - | - | Surface Mount | - | - | - | - | |
|
F0309XT-1WR3DC DC CONVERTER 9V 1W |
271 | - |
|
数据表 |
F0309XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 9V | - | - | - | 111mA | 999 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Surface Mount | - | - | - | - | |
|
F0305XT-1WR3DC DC CONVERTER 5V 1W |
146 | - |
|
数据表 |
F0315XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | - | - | |
|
IB0505XT-1WR3DC-DC ISOLATED 1 W 4.75~5.25V |
1,205 | - |
|
数据表 |
IB05_XT-1WR3 | 10-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 69% | - | - | Surface Mount | - | - | - | 62368-1 | |
|
B1515D-2WR3DC DC CONVERTER 15V 2W |
160 | - |
|
数据表 |
B1515D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 133mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - | |
|
B1224D-2WR3DC DC CONVERTER 24V 2W |
147 | - |
|
数据表 |
B1224D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
|
D121212S-1WR3ISOLATED MODULE DC DC CONVERTER |
131 | - |
|
数据表 |
D_(N)S-1WR3 (1W) | 7-SIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 12V | 12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - | |
|
|
D241515S-1WR3ISOLATED MODULE DC DC CONVERTER |
125 | - |
|
数据表 |
D_(N)S-1WR3 (1W) | 7-SIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 15V | 15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - | |
|
|
D240505S-1WR3ISOLATED MODULE DC DC CONVERTER |
124 | - |
|
数据表 |
D_(N)S-1WR3 (1W) | 7-SIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 5V | 5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - |
