直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

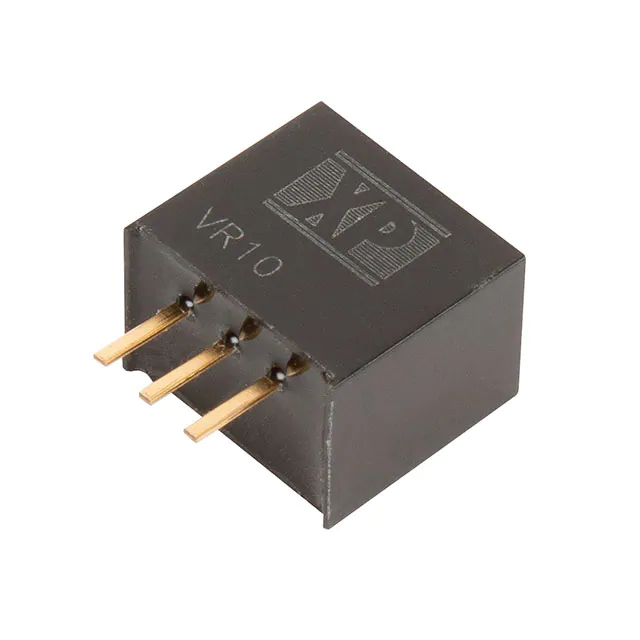

VR10S3V3DC DC CONVERTER 3.3V |
692 | - |
|
数据表 |
VR10 | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 6V | 36V | 3.3V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|

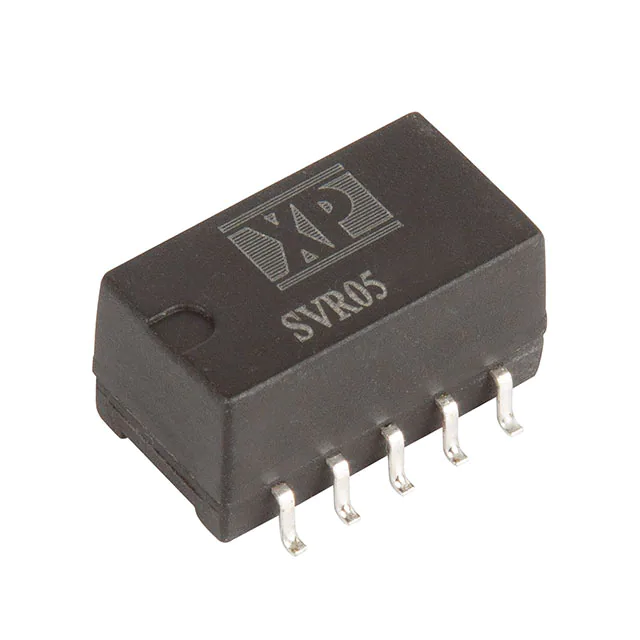

SVR05S12DC DC CONVERTER 12V |
194 | - |
|
数据表 |
SVR05 | 10-SMD Module, 8 Leads | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 15V | 36V | 12V | - | - | - | 500mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 94% | - | - | Surface Mount | - | - | - | - | |
|
A0312XT-1WR3DC DC CONVERTER +/-12V 1W |
153 | - |
|
数据表 |
A03_XT-1WR3 (1W) | 10-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 2.97V | 3.63V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | - | - | |
|
AMSROL-7805NZDC DC CONVERTER 5V 2.5W |
112 | - |
|
数据表 |
AMSROL-78NZ | 4-SMD Module | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 6.5V | 36V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 90% | - | - | Surface Mount | - | - | - | - | |
|
F0512XT-1WR3DC DC CONVERTER 12V 1W |
20,579 | - |
|
数据表 |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CB, CE, cURus | - | |
|
|
F0505XT-1WR3DC DC CONVERTER 5V 1W |
2,241 | - |
|
数据表 |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | CB, CE, cURus | - | |
|
|
F0515XT-1WR3DC DC CONVERTER 15V 1W |
408 | - |
|
数据表 |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CB, CE, cURus | - | |
|
B2405LS-1WR3DC DC CONVERTER 5V 1W |
375 | - |
|
数据表 |
B_LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Through Hole | - | - | CB, CE, cURus, UL | 62368-1 | |
|
AM1SS-0509SJZDC DC CONVERTER 9V 1W |
166 | - |
|
数据表 |
AM1SS-NZ (1W) | 4-SIP Module | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C | 83% | - | - | Through Hole | - | - | cULus, cURus | - | |
|
B0505S-2WR3DC DC CONVERTER 5V 2W |
1,183 | - |
|
数据表 |
B0505S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - | |
|
B1203S-2WR3DC DC CONVERTER 3.3V 2W |
979 | - |
|
数据表 |
B1203S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 400mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Through Hole | - | - | CB, CE, cURus, UL | 62368-1 | |
|
B0524S-2WR3DC DC CONVERTER 24V 2W |
695 | - |
|
数据表 |
B0524S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 83mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
B0507S-2WR3DC DC CONVERTER 7.2V 2W |
157 | - |
|
数据表 |
B0507S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 7.2V | - | - | - | 278mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - | |
|
B0509S-2WR3DC DC CONVERTER 9V 2W |
131 | - |
|
数据表 |
B0509S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 222mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
B0512D-2WR3DC DC CONVERTER 12V 2W |
129 | - |
|
数据表 |
B0512D-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
B0512S-2WR3DC DC CONVERTER 12V 2W |
126 | - |
|
数据表 |
B0512S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
B0503S-2WR3DC DC CONVERTER 3.3V 2W |
125 | - |
|
数据表 |
B0503S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 400mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - | |
|
B0515S-2WR3DC DC CONVERTER 15V 2W |
122 | - |
|
数据表 |
B0515S-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 133mA | 1.9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
B0505D-2WR3DC DC CONVERTER 5V 2W |
115 | - |
|
数据表 |
B0512XT-2WR3 (2W) | 14-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - | |
|
A1215XT-1WR3-TRDC DC CONVERTER +/-15V 1W |
208 | - |
|
数据表 |
A_XT-1WR3 (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CB, CE, cURus, UL | 62368-1 |
