直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQ48S04120-NS00GDC DC CONVERTER 12V 48W |
0 | - |
|
数据表 |
SemiQ™ SQ48 | 8-SMD Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 4A | 48 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
PTH08T250WASTDC DC CONVERTER 0.7-3.6V |
0 | - |
|
数据表 |
PTH08T250W | 22-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 3.6V | - | - | - | 50A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | - | - | - | - | |
|

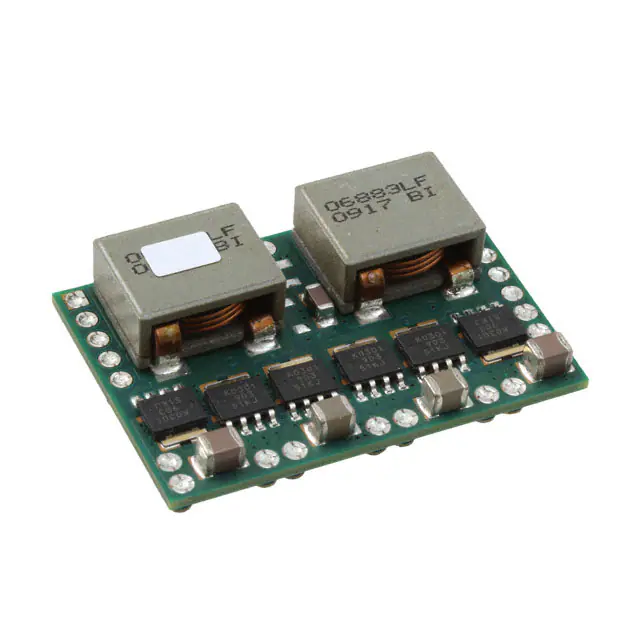

PTH08T255WASDC DC CONVERTER 3-5.25V |
0 | - |
|
数据表 |
PTH08T255W | 22-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 8V | 14V | 3 ~ 5.25V | - | - | - | 40A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - | |
|
|
PTH08T255WAZDC DC CONVERTER 3-5.25V |
0 | - |
|
数据表 |
PTH08T255W | 22-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 8V | 14V | 3 ~ 5.25V | - | - | - | 40A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - | |
|
DVE0240V2NBCDC DC CONVERTER 5V 200W |
42 | - |
|
数据表 |
DVE (300W) | 16-DIP Module (15 Leads), 1/8 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 40A | 200 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
RPP20-2412DCONV DC/DC 20W 18-36VIN +/-12V |
55 | - |
|
数据表 |
POWERLINE+ RPP20 (20W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 833mA, 833mA | - | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -45°C ~ 96°C | 88.9% | - | - | Through Hole | - | - | - | - | |
|

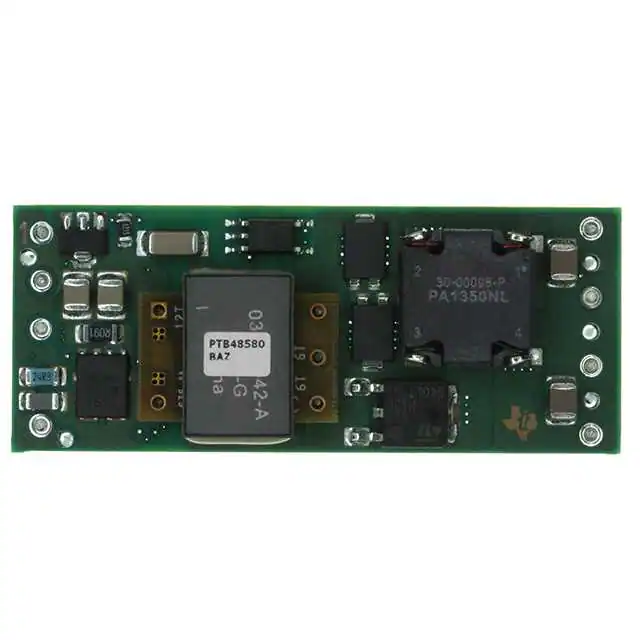

PTB48580AASDC DC CONVERTER +/-5V 30W |
0 | - |
|
数据表 |
PTB48580 | 8-SMD Module | Bulk | Not For New Designs | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 3A, 3A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | - | - | - | |
|

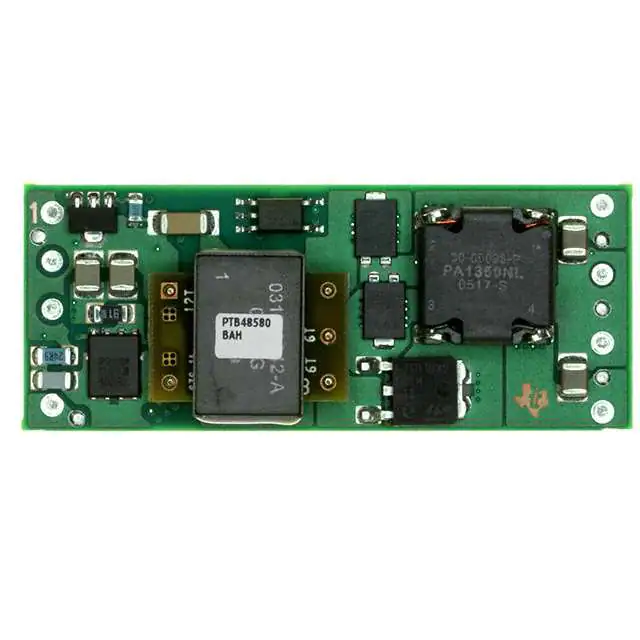

PTB48580AAHDC DC CONVERTER +/-5V 30W |
0 | - |
|
数据表 |
PTB48580 | 8-DIP Module | Bulk | Not For New Designs | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 3A, 3A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
|
UHE-5/6000-Q12-CDC DC CONVERTER 5V 30W |
158 | - |
|
数据表 |
UHE (30W) | 9-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | - | Enable, Active High | - | - | |
|

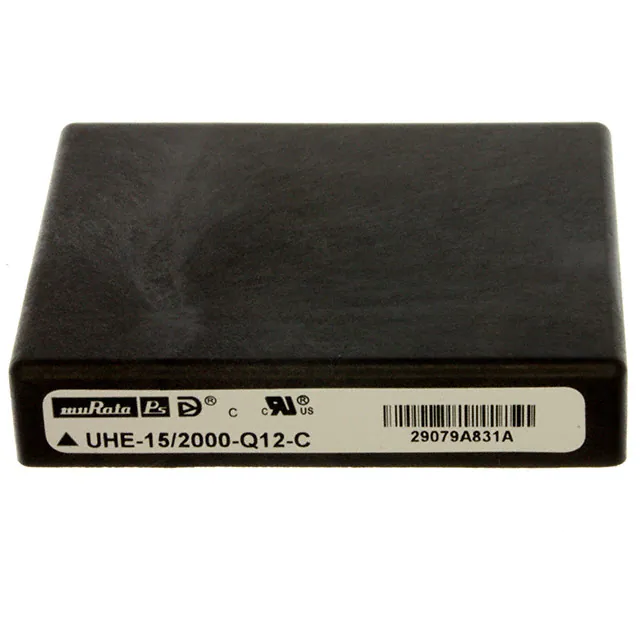

UHE-15/2000-Q12-CDC DC CONVERTER 15V 30W |
90 | - |
|
数据表 |
UHE (30W) | 9-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
UHE-3.3/7500-Q12-CDC DC CONVERTER 3.3V 24W |
45 | - |
|
数据表 |
UHE (30W) | 9-DIP Module, 8 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 7.5A | 24 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | - | - | |
|

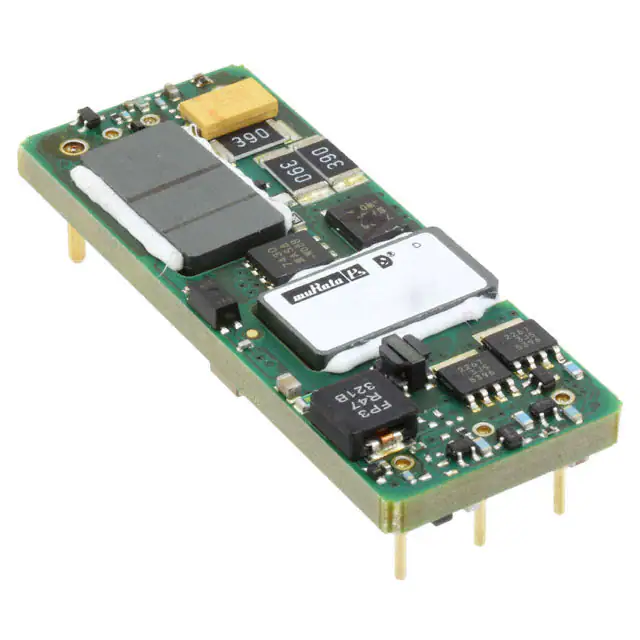

UWE-5/15-Q48N-CDC DC CONVERTER 5V 75W |
81 | - |
|
数据表 |
UWE | 8-DIP Module, 1/8 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 15A | 75 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
UWE-3.3/20-Q48N-CDC DC CONVERTER 3.3V 66W |
42 | - |
|
数据表 |
UWE | 8-DIP Module, 1/8 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 20A | 66 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 89.5% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
UWE-15/5-Q48N-CDC DC CONVERTER 15V 75W |
42 | - |
|
数据表 |
UWE | 8-DIP Module, 1/8 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 5A | 75 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 90.5% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
PT8123CDC DC CONVERTER 0.8-1.575V |
180 | - |
|
数据表 |
Excalibur™ PT8120 | 31-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.575V | - | - | - | 30A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Surface Mount | - | - | - | - | |
|
|
PT8121CDC DC CONVERTER 1.3-3.5V 30A |
0 | - |
|
数据表 |
Excalibur™ PT8120 | 31-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.3 ~ 3.5V | - | - | - | 30A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 91% | - | - | Surface Mount | - | - | - | - | |
|
|
PT8102NDC DC CONVERTER 1.075-1.85V |
740 | - |
|
数据表 |
Excalibur™ PT8100 | 31-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.075 ~ 1.85V | - | - | - | 40A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | |
|
|
PT7773ADC DC CONVERTER 0.8-3.1V 32A |
0 | - |
|
- |
PT7770 | 27-SIP Module, Horizontal | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.1V | - | - | - | 32A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 86% | - | - | Through Hole, Horizontal | - | - | - | - | |
|
|
PT8101ADC DC CONVERTER 1.3-2.7V 40A |
0 | - |
|
数据表 |
Excalibur™ PT8100 | 31-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 2.7V | - | - | - | 40A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole, Right Angle | - | - | - | - | |
|
|
PT8103CDC DC CONVERTER 1.075-1.85V |
0 | - |
|
数据表 |
Excalibur™ PT8100 | 31-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 3.6V | 1.075 ~ 1.85V | - | - | - | 40A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | - | - | - |
