直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT4411CDC DC CONVERTER 1.3-3.5V 100W |
79 | - |
|
数据表 |
Excalibur™ PT4410 (100W) | 21-SMD Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 1.3 ~ 3.5V | - | - | - | 30A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 91% | - | - | Surface Mount | - | - | - | - | |
|
|
PT4413CDC DC CONVERTER 3.4-5.7V 100W |
0 | - |
|
数据表 |
Excalibur™ PT4410 (100W) | 21-SMD Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.4 ~ 5.7V | - | - | - | 20A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | - | - | - | - | |
|
|
PT4411NDC DC CONVERTER 1.3-3.5V 100W |
32 | - |
|
数据表 |
Excalibur™ PT4410 (100W) | 21-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 1.3 ~ 3.5V | - | - | - | 30A | 100 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | - | - | - | - | |
|
|
UWE-5/24-Q12PB-CDC DC CONVERTER 5V 120W |
928 | - |
|
数据表 |
UWE-Q12 | Eighth Brick | Tray | Obsolete | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 24A | 120 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | Eighth Brick | Enable, Active High | cURus | - | |
|
|
PT7761ADC DC CONVERTER 1.3-3.5V |
0 | - |
|
数据表 |
Excalibur™ PT7761 | 31-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 3.5V | - | - | - | 40A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
|
QPS3050N040N25WEDC DC CONVERTER 5V 200W |
124 | - |
|
数据表 |
QPS | Quarter Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 40A | 200 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 91% | - | - | Through Hole | Quarter Brick | Enable, Active Low | cURus | - | |
|
QPS3150N013N25WDC DC CONVERTER 15V 195W |
56 | - |
|
数据表 |
QPS | Quarter Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 13A | 195 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 93.5% | - | - | Through Hole | Quarter Brick | Enable, Active Low | cURus | - | |
|
|
DFC10E12S12DC DC CONVERTER 12V 10W |
0 | - |
|
数据表 |
DFC10 (10W) | 5-DIP Module, 4 Leads | Bulk | Obsolete | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 900mA | 10 W | 700 V | ITE (Commercial) | OCP, SCP | -40°C ~ 90°C | 83% | - | - | Through Hole | - | - | - | - | |
|
VCF4824QBO-400WFR3DC DC CONVERTER, 400W, 24V, ADDE |
74 | - |
|
数据表 |
VCF48_QBO-400WFR3 (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 16.5A | 396 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote Sense | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | Quarter Brick | - | - | 62368-1 | |
|

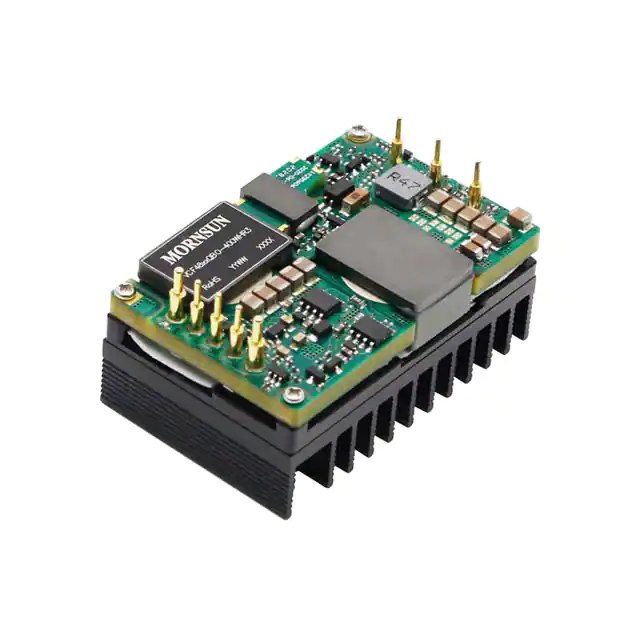

VCF4824QBO-400WHR3DC DC CONVERTER, 400W, 24V, HEAT |
826 | - |
|
数据表 |
VCF48_QBO-400WHR3 (400W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 16.5A | 396 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink, Remote Sense | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | Quarter Brick | - | - | 62368-1 | |
|
|
WRD110S12-150WDC DC CONVERTER 150W |
20,000 | - |
|
- |
URDXXSXX-150W | 13-DIP Module | Case | Active | Isolated Module | 1 | 70V | 150V | 12V | - | - | - | 12.5A | 150 W | 1.5 kV | ITE (Commercial) | - | -45°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
|
URF1D24LD-40WHR3ISOLATED MODULE DC DC CONVERTER |
54 | - |
|
数据表 |
URF1D_LD-40WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 24V | - | - | - | 1.667A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | CE | 62368-1 | |
|
URF1D12LD-40WR3ISOLATED MODULE DC DC CONVERTER |
91 | - |
|
数据表 |
URF1D_LD-40WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 12V | - | - | - | 3.333A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | CE | 62368-1 | |
|
|
URF1D24LD-40WR3ISOLATED MODULE DC DC CONVERTER |
53 | - |
|
数据表 |
URF1D_LD-40WR3 (40W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 24V | - | - | - | 1.667A | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | CE | 62368-1 | |
|
|
150QBW4_2424S2.25DC-DC INDUSTRIAL |
26 | - |
|
数据表 |
150QBW4_2.25 (150W) | Quarter Brick | Tube | Obsolete | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 6.25A | 150 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | Quarter Brick | - | - | - | |
|
|
PAQ50S48-5/VDC DC CONVERTER 5V 50W |
769 | - |
|
数据表 |
PAQ50 | 8-DIP Module, 1/4 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - | |
|
UVQ-12/8-D24P-CDC DC CONVERTER 12V 96W |
26 | - |
|
数据表 |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 8A | 96 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 91% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
BWR-15/330-D12A-CDC DC CONVERTER +/-15V 10W |
508 | - |
|
数据表 |
BWR (10W) | 5-DIP Module | Tube | Obsolete | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 330mA, 330mA | 10 W | 1 kV | ITE (Commercial) | - | -40°C ~ 100°C | 84% | - | - | Through Hole | - | - | - | - | |
|
UWR-5/2000-D12A-CDC DC CONVERTER 5V 10W |
96 | - |
|
数据表 |
UWR (15W) | 5-DIP Module | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 70°C | 81% | - | - | Through Hole | - | - | - | - | |
|
|
RPP30-2412DCONV DC/DC 30W 18-36VIN +/-12V |
56 | - |
|
数据表 |
POWERLINE+ RPP30 (30W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 1.25A, 1.25A | - | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -45°C ~ 86°C | 88.4% | - | - | Through Hole | - | - | - | - |
