直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC4SBW-24S05DC DC CONVERTER 5V 20W |
9 | - |
|
数据表 |
EC4SBW (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90.5% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 | |
|
THD 12-2410WIDC DC CONVERTER 3.3V 12W |
100 | - |
|
数据表 |
THD 12WI (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 3.5A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - | |
|
THN 20-1211DC DC CONVERTER 5V 20W |
96 | - |
|
数据表 |
THN 20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 75°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|
UEI30-120-Q48N-CDC DC CONVERTER 12V 30W |
84 | - |
|
数据表 |
UEI30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 2.5A | 30 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
LTM4628EV#PBFDC DC CNVRTR 0.6-5.5V 0.6-5.5V |
59 | - |
|
数据表 |
µModule® | 144-BLGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 26.5V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | - | - | 8A, 8A | - | - | ITE (Commercial) | OCP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 144-LGA (15x15) | - | - | - | |
|

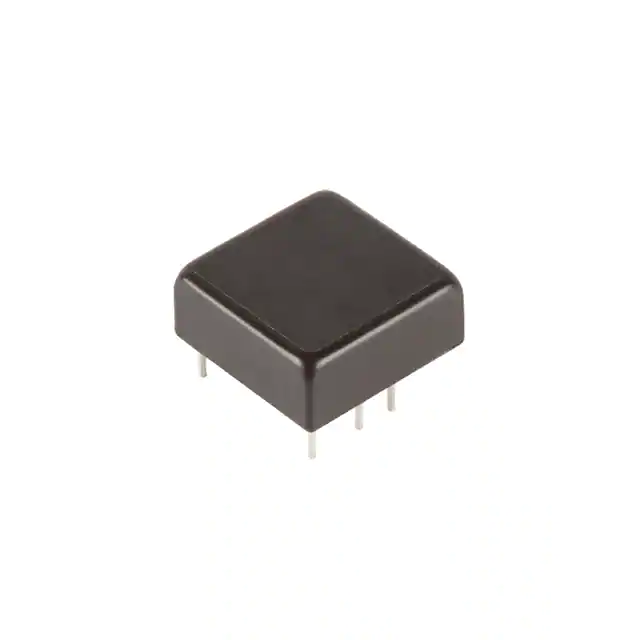

JTK3024S12DC DC CONVERTER 12V 30W |
83 | - |
|
数据表 |
JTK30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 89% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
|
JTK3024S05DC DC CONVERTER 5V 30W |
60 | - |
|
数据表 |
JTK30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 89% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
PDQ15-Q48-S15-DDC DC CONVERTER 15V 15W |
66 | - |
|
数据表 |
PDQ15-D (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 87% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
SKM50B-05DC DC CONVERTER 5V 50W |
13 | - |
|
数据表 |
SKM50 (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 75°C (With Derating) | 91% | - | - | Through Hole | - | - | - | - | |
|
RSDW40F-05DC DC CONVERTER 5V 40W |
4 | - |
|
数据表 |
RSDW40 (40W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 8A | 40 W | 1.6 kV | Railway | - | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | - | - | CE, EAC | - | |
|

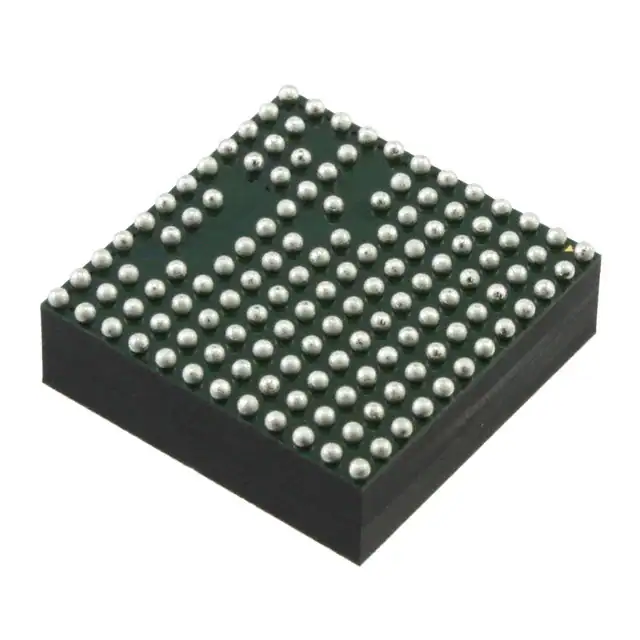

LTM4613IY#PBFDC DC CONVERTER 3.3-15V |
0 | - |
|
数据表 |
µModule® | 133-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5V | 36V | 3.3 ~ 15V | - | - | - | 8A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 133-BGA (15x15) | - | - | - | |
|
THD 12-2423WIDC DC CONVERTER +/-15V 12W |
10 | - |
|
数据表 |
THD 12WI (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 400mA, 400mA | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
I7C4W012A050V-001-RDC DC CONVERTER 5-28V 300W |
5 | - |
|
数据表 |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 5 ~ 28V | - | - | - | 12.5A | 300 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 97% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1; 60950-1 | |
|
|
I7C4W012A050V-003-RDC DC CONVERTER 5-28V 300W |
2 | - |
|
数据表 |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 5 ~ 28V | - | - | - | 12.5A | 300 W | - | ITE (Commercial) | Adjustable Output, Imon, PGood, Remote On/Off, Sync | -40°C ~ 125°C | 97% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1; 60950-1 | |
|
|
RSDW60G-12DC DC CONVERTER 12V 60W |
17 | - |
|
数据表 |
RSDW60 (60W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 5A | 60 W | 1.6 kV | Railway | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | - | CE, EAC | - | |
|
LTM4628IY#PBFDC DC CNVRTR 0.6-5.5V 0.6-5.5V |
0 | - |
|
数据表 |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 26.5V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | - | - | 8A, 8A | - | - | ITE (Commercial) | OCP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 144-BGA (15x15) | - | - | - | |
|
TEN 20-2411WINDC DC CONVERTER 5V 20W |
4 | - |
|
数据表 |
TEN 20WIN (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - | |
.jpg)
|
LTM8056IYDC DC CONVERTER 1.2-48V |
22 | - |
|
数据表 |
µModule® | 121-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5V | 58V | 1.2 ~ 48V | - | - | - | 5.4A | - | - | ITE (Commercial) | OTP | -40°C ~ 125°C | 96% | - | - | Surface Mount | 121-BGA (15x15) | - | - | - | |
|
TEN 40-4811EDC DC CONVERTER 5V 40W |
16 | - |
|
数据表 |
TEN 40E (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 8A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 91% | - | - | Through Hole | - | - | CB, cURus | - | |
|
I7C4W008A120V-0C1-RDC DC CONVERTER 9.6-48V 300W |
10 | - |
|
数据表 |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 9.6 ~ 48V | - | - | - | 8A | 300 W | - | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 125°C | 96% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1; 60950-1 |
