直流直流转换器（DC DC Converters）
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CN50A24-24DC DC CONVERTER 24V 50W |
12 | - |
|
数据表 |
CN-A24 (50W) | 8-DIP Module | Bulk | Active | Isolated Module | 1 | 14.4V | 36V | 24V | - | - | - | 2.1A | 50 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 100°C | 86% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
THM 60-4812WI60W MEDICAL DC/DC CONVERTER ISOL |
24 | - |
|
数据表 |
THM 60WI (60W) | Quarter Brick | Box | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 5A | 60 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 70°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | - | CB, cURus | 60601-1; 62368-1 | |
|

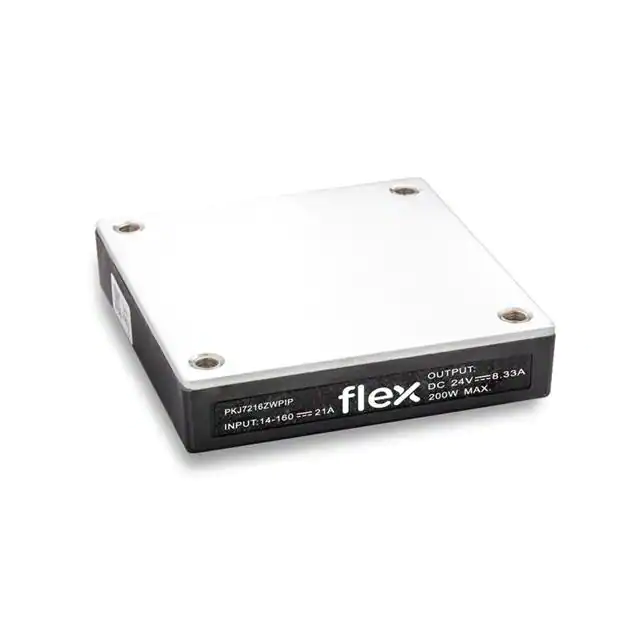

PKJ7216ZWPI14-160 V21.626.4 V200 W8.33 A |
7 | - |
|
数据表 |
PKJ 7200 (200W) | Half Brick | Tray | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 8.33A | 200 W | 4 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 90% | - | - | Through Hole | Half Brick | Enable, Active Low | cURus, UL | 62368-1 | |
|
REC150H-4812SUW150W DC/DC-CONVERTER 'POWERLINE' |
5 | - |
|
数据表 |
ECONOLINE REC150H-UW (150W) | Half Brick | Tube | Active | Isolated Module | 1 | 9V | 75V | 12V | - | - | - | 12.5A | 150 W | 2.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 89.5% | - | - | Through Hole | Half Brick | - | - | - | |
|
A12P-12DC DC CONVERTER 1200V 1W |
17 | - |
|
数据表 |
XP EMCO - A (1W) | 5-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 1200V | - | - | - | 830µA | 1 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | - | - | CE, cURus | 62368-1 | |
|
F05DC DC CONVERTER 500V 10W |
7 | - |
|
数据表 |
XP EMCO - F (10W) | 5-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 500V | - | - | - | 20mA | 10 W | 3.5 kV | ITE (Commercial) | Proportional Output | -10°C ~ 70°C | - | - | - | Through Hole | - | - | - | - | |
|
G50DC DC CONVERTER 5000V 1.5W |
7 | - |
|
数据表 |
XP EMCO - G (1.5W) | 4-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 5000V | - | - | - | 300µA | 1.5 W | 3.5 kV | ITE (Commercial) | Proportional Output | -10°C ~ 60°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
TEP 100-2412DC DC CONVERTER 12V 101W |
11 | - |
|
数据表 |
TEP 100 (100W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 8.4A | 101 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 75°C | 90% | - | - | Through Hole | - | - | - | - | |
|
CQB200-24S24NBRICK DC-DC CQB200-24S24N |
24 | - |
|
数据表 |
CQB200 (200W) | Quarter Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 8.33A | 200 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 91.5% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE | 62368-1 | |
|
TEN 60-2423WINDC DC CONVERTER +/-15V 60W |
25 | - |
|
数据表 |
TEN 60WIN (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 2A, 2A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | Module | - | - | - | |
|
QSB20024S12DC DC CONVERTER 12V 200W |
17 | - |
|
数据表 |
QSB (200W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 10V | 36V | 12V | - | - | - | 16.7A | 200 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 86% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
TEP 100-3615UIRDC DC CONVERTER 24V 100W |
5 | - |
|
数据表 |
TEP 100UIR (100W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 24V | - | - | - | 4.2A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 88% | - | - | Through Hole | Quarter Brick | - | CB, cURus | 62368-1 | |
|
DHS100B24DC DC CONVERTER 24V |
18 | - |
|
数据表 |
DHS (100W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 200V | 400V | 24V | - | - | - | 4.2A | - | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|

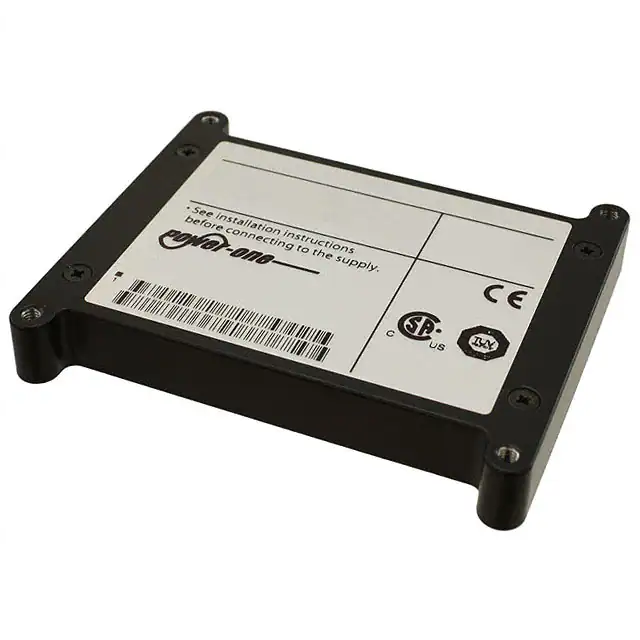

40IMX35D15D15-8GDC DC CONVERTER 15V 15V 15V 35W |
3 | - |
|
数据表 |
Melcher IMX35 (35W) | 19-DIP Module | Bulk | Active | Isolated Module, Conformal Coated | 4 | 18V | 75V | 15V | 15V | 15V | - | 600mA, 600mA, 600mA | 35 W | 1.5 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | - | - | - | - | |
|

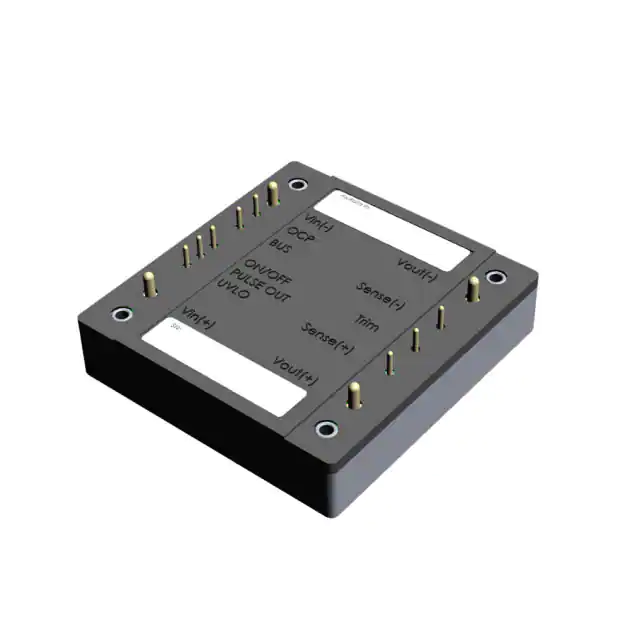

IRH-24/10.5-W80NB-C16V - 160V DC I/P, 24V 250W O/P, |
19 | - |
|
数据表 |
IRH-W80 (250W) | Half Brick | Tray | Active | Isolated Module | 1 | 16V | 160V | 24V | - | - | - | 10.5A | 252 W | 4.242 kV | ITE (Commercial), Railway | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | Half Brick | Enable, Active Low | CE, cURus | 60950-1 | |
|
|
QSB30024S12DC DC CONVERTER 12V 300W |
9 | - |
|
数据表 |
QSB (300W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 25A | 300 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 90% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
QSB30048S12DC DC CONVERTER 12V 300W |
9 | - |
|
数据表 |
QSB (300W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 25A | 300 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 90% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
QSB30024S24DC DC CONVERTER 24V 300W |
6 | - |
|
数据表 |
QSB (300W) | Half Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 12.5A | 300 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 88% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
DCM3623T75X1780T00DC DC CONVERTER 15V 81W |
25 | - |
|
数据表 |
VI Chip® DCM® (80W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 75V | 15V | - | - | - | 5.4A | 81 W | 2.25 kV | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | 90.6% | - | - | Through Hole | - | - | - | - | |
|
|
A20P-5DC DC CONVERTER 2000V 1W |
14 | - |
|
数据表 |
XP EMCO - A (1W) | 5-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 2000V | - | - | - | 500µA | 1 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | - | - | CE, cURus | 62368-1 |
