射频天线
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
60012192IN1 PANEL ANTENNA - 2XLTE, BOLT |
26 | - |
|
数据表 |
AirLink® - Accessory | Box | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.249GHz | 698MHz ~ 3.8GHz | Panel | 1 | - | - | - | - | Cable - 1m | - | - | - | - | Panel Mount | - | LTE |
|
TRAB9023PRF ANT 915MHZ DOME N FEM PAN MT |
65 | - |
|
数据表 |
Phantom® | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Dome | 1 | 2 | - | 3dBi | 150 W | - | N Type Female | - | - | - | Panel Mount | 2.700" (68.58mm) | GSM |
|

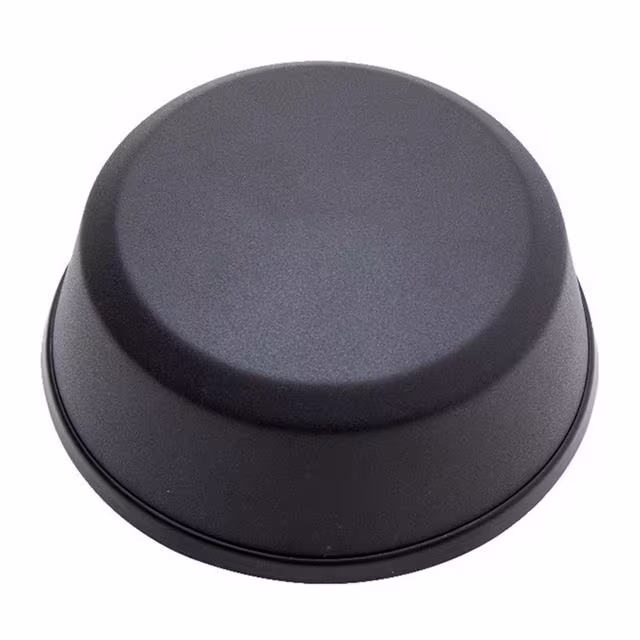

710266RF ANT 829MHZ PUCK SMA M MNT |
27 | - |
|
数据表 |
AllDisc | Box | Active | Cellular | Wide Band | 829MHz, 1.795GHz, 2.045GHz, 2.595GHz, 3.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.92GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Puck | 3 | 2, 2.5, 2.7, 3 | - | 4.5dBi, 5dBi, 4.5dBi, 3.5dBi, 7dBi | 10 W | Cable - 2.5m | SMA Male | IP6K9K | - | - | Bracket Mount, Through Hole | 2.165" (55.00mm) | 2G, 3G, 4G, 5G, NB-IoT |
|
SG1019NM-868RF ANT 868MHZ WHIP STR N CONN |
33 | - |
|
数据表 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 867MHz ~ 869MHz | Whip, Straight | 1 | 2 | - | 5dBi | - | - | N Type | IP67 | - | - | Connector Mount | 20.276" (515.00mm) | - |
|
|
YETN001L1AHIGH PERFORMANCE SAT ANTENNA |
20 | - |
|
数据表 |
- | Retail Package | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.538GHz, 1.582GHz, 1.643GHz, 1.671GHz | 1.518GHz ~ 1.559GHz, 1.559GHz ~ 1.606GHz, 1.626GHz ~ 1.66GHz, 1.668GHz ~ 1.675GHz | Module | 4 | - | - | 5.32dBi, 5.32dBi, 5.32dBi, 5.32dBi | - | - | SMA Male | IP67 | - | - | Screw Mount | 1.043" (26.50mm) | Galileo, GLONASS, GNSS, GPS |
|
|
RE905U-RSPANTOMNI 800-900MHZ 5DBI |
11 | - |
|
数据表 |
RE | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 850MHz | 800MHz ~ 900MHz | Whip, Straight | 1 | - | - | 5dBi | - | Cable - 1.22m | RP-SMA | - | - | - | Magnetic | 7.200" (182.88mm) | GSM, ISM, LoRa, RFID, WLAN |
|
318020691LORA FIBERGLASS ANTENNA KIT; 902 |
17 | - |
|
数据表 |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Whip, Straight | 1 | 2.5 | - | 5dBi | - | Cable - 1m | N Type Male | - | - | - | Bracket Mount | 31.496" (800.00mm) | LoRa |
|
|
HG905RD-RSPANTRUBBER DUCK 900MHZ 5DBI |
17 | - |
|
数据表 |
HG | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Whip, Tilt | 1 | 2.5 | - | 5dBi | 50 W | - | RP-SMA | - | - | - | Connector Mount | 16.900" (429.26mm) | GSM, ISM, WLAN |
|
BMLPVMB/LTE-VPRF ANT 780MHZ DOM N TYP FEM CONN |
10 | - |
|
数据表 |
BMLPV | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 780MHz, 2.205GHz | 600MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Dome | 2 | 2 | - | 3dBi, 3dBi | 150 W | - | N Type Female | IP66 | - | - | Connector Mount | 24.016" (610.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LTE, Wi-Fi |
|
MWV1365SRF ANT 155MHZ WHIP STR BASE MNT |
11 | - |
|
数据表 |
MWV | Bag | Active | - | VHF (f < 300MHz) | 155MHz | 136MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 1dBi | 160 W | - | - | - | - | - | Base Mount | 20.000" (508.00mm) | - |
|
TRAB4500NRF ANT 460MHZ DOME NMO BASE 3.4" |
9 | - |
|
数据表 |
Phantom® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Dome | 1 | 2 | - | 3dBi | 100 W | - | NMO | - | - | - | Base Mount | 3.400" (86.36mm) | - |
|
FTRA6971M5PB-001OMNI PH PMT 698-7125MHZ BLK 5 DB |
20 | - |
|
数据表 |
On-Ground Plane | Box | Active | Cellular | Wide Band | 829MHz, 1.561GHz, 2.1975GHz, 3.75GHz, 5.2GHz, 6.5625GHz | 698MHz ~ 960MHz, 1.427GHz ~ 1.695GHz, 1.695GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 6GHz, 6GHz ~ 7.125GHz | Dome | 6 | 2, 2.7, 2, 1.5, 1.5, 1.5 | - | 4dBi, 4.5dBi, 5.5dBi, 5.5dBi, 5.5dBi, 5.5dBi | 100 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.307" (84.00mm) | 5G |
|
318020611LORA FIBERGLASS ANTENNA, 858-878 |
15 | - |
|
数据表 |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 858MHz ~ 878MHz | Whip, Straight | 1 | - | - | 8.8dBi | 2 W | - | N Type Female | - | - | - | Bracket Mount | 51.181" (130.00cm) | LoRa |
|
B1442NSRF ANT 159MHZ WHIP STR NMO BASE |
10 | - |
|
数据表 |
- | Bulk | Active | - | VHF (f < 300MHz) | 159MHz | 144MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 2dBi | 100 W | - | NMO | - | - | - | Base Mount | 44.000" (111.76cm) | - |
|
8117DRF ANT 1.593GHZ MOD SMA MALE MAG |
22 | - |
|
数据表 |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.593GHz | 1.568GHz ~ 1.618GHz | Module | 1 | - | - | 3dBic, -2dBic | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.535" (13.60mm) | GLONASS, GPS |
|
LP450NMOBLACK NMO LOW PROFILE, UNITY, 45 |
3 | - |
|
数据表 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Dome | 1 | - | - | 2dBi | 100 W | - | NMO | - | - | - | Panel Mount | 1.500" (38.10mm) | - |
|
BOA58010NMRF ANT 5.75GHZ WHIP STR N TYPE |
24 | - |
|
数据表 |
BOA | Bag | Active | WiFi | SHF (f > 4GHz) | 5.75GHz | 5.7GHz ~ 5.8GHz | Whip, Straight | 1 | 1.5 | - | 10dBi | 20 W | - | N Type Male | IP67 | - | - | Connector Mount, Pole Mount | 17.600" (447.04mm) | Bluetooth, Wi-Fi |
|
ALPHA22/3M/SMAM/SMAM/SMAM/S/S/26ADHESIVE PUCK 2G/3G/4G WIFI AND |
10 | - |
|
数据表 |
ALPHA 22 | Bulk | Active | 802.15.4, Bluetooth, Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.58GHz, 2.2GHz, 2.44GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.7GHz, 2.4GHz ~ 2.4835GHz | Puck | 4 | 1.5, 2, 3 | - | 2dBi, 5dBic, 2dBi, 3dBi | - | LNA, Filter | SMA Male (2), RP-SMA Male (1) | - | - | - | Adhesive, Chassis Mount | 0.638" (16.20mm) | 2G, 3G, 4G, Bluetooth, Galileo, GLONASS, GPS, Wi-Fi, Zigbee™ |
|
OSCAR20/5M/SMAM/S/S/15RF ANT 850MHZ/900MHZ YAGI SMA ML |
15 | - |
|
数据表 |
OSCAR 20 | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | - | Yagi | 6 | 2 | - | 8dBi | - | - | SMA Male | - | - | - | Bracket Mount | 1.378" (35.00mm) | GPRS, GSM, LTE, UMTS |
|
RO25002NMRADOME OMNI 2300-2700 MHZ N MA |
19 | - |
|
数据表 |
Radome Omni | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 2dBi | 50 W | - | N Type Male | IP67 | - | - | Connector Mount | 4.799" (121.90mm) | General Purpose |
