射频天线
| 图片 | 厂商型号 | 可用性 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GL9X1AX-SFRF ANT 657.5MHZ MOD RP-SMA M PAN |
16 | - |
|
数据表 |
Coach™ II | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 750MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.495GHz, 2.45GHz, 3.6GHz, 5.4GHz, 5.55GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.9GHz, 5.15GHz ~ 5.95GHz | Module | 10 | 2 | - | -0.2dBi, 1.1dBi, 2.1dBi, 3dBic, -2dBic, 4.4dBi, 4.8dBi, 9.1dBi, 4.7dBi, 11.4dBi, 5.8dBi | 50 W | Cable - 5.1816m | RP-SMA Male (1), SMA Male (2) | IP67 | - | - | Panel Mount | 3.012" (76.50mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE |
|
TGX.04.A.001450-6000MHZ CROSS POLARISED WIDE |
13 | - |
|
数据表 |
- | Bag | Active | Cellular, WiFi | Wide Band | 450MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 430MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 9 | - | - | 1dBi, 1.9dBi, 2.7dBi, 2.8dBi, 3.1dBi, 4.2dBi, 4.3dBi, 3.5dBi, 2.3dBi | 10 W | - | SMA Male | IP67 | - | - | Pole, Wall Mount | 5.866" (149.00mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|
AA.250.101111ALL-BAND GNSS MAGNETIC MOUNT ANT |
15 | - |
|
数据表 |
- | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.201GHz, 1.227GHz, 1.248GHz, 1.268GHz, 1.278GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Module | 9 | - | - | - | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 1.024" (26.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
HG2422DPDANTDISH 2.4GHZ 22DBI |
3 | - |
|
数据表 |
HG | Bag | Active | Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dish | 1 | 1.5 | - | 22dBi | 100 W | - | N Type Female (2) | - | - | - | Mast Mount | - | 802.11b/g/n, ISM, Wi-Fi, WLAN |
|

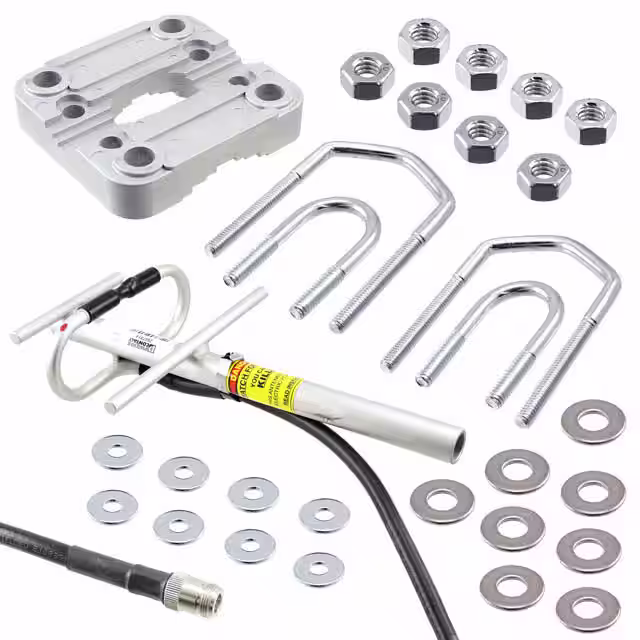

2867814RF ANT 900MHZ YAGI CAB BRKT 1.5M |
6 | - |
|
数据表 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 868MHz ~ 960MHz | Yagi, 2-Element | 1 | 1.7 | - | 8.5dBi | - | Cable - 1.5m | N Type Female | IP65 | - | - | Bracket Mount | 6.693" (170.00mm) | - |
|
33-HC990EXF-35-00-1500EXTENDED FILTER, FULL BAND |
18 | - |
|
- |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.232GHz, 1.549GHz, 1.5825GHz | 1.164GHz ~ 1.3GHz, 1.539GHz ~ 1.559GHz, 1.559GHz ~ 1.606GHz | Helical | 3 | 1.8 | - | 1.6dBic, 2dBic, 2.1dBic, 2.2dBic, 2.3dBic, 2.4dBic, 2.5dBic, 2.7dBic | - | Cable - 1.5m, LNA, Filter | - | - | - | - | Base Mount | 0.984" (25.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
5606614RF ANT 900MHZ YAGI N TYP BRKT 2' |
2 | - |
|
数据表 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 868MHz ~ 960MHz | Yagi, 6-Element | 1 | 1.7 | - | 12.15dBi | - | Cable - 600mm | N Type Female | IP65 | - | - | Bracket Mount | 6.772" (172.00mm) | - |
|
|
33-HC990XF-35FULL GNSS SPECTRUM + L-BAND WITH |
25 | - |
|
数据表 |
- | Bag | Active | Cellular, Navigation | UHF (1GHz ~ 2GHz) | 1.232GHz, 1.582GHz | 1.164GHz ~ 1.3GHz, 1.559GHz ~ 1.606GHz | Dome | 2 | 1.8 | - | 35dBi, 35dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Screw Mount | 1.476" (37.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, LTE, NavIC, QZSS, SBAS |
|
|
33-3997EXF-00-5000EXTENDED FILTER FULL BAND PLUS L |
11 | - |
|
数据表 |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
33-3972XF-14-01EXTENDED FILTER, TRIPLE BAND |
3 | - |
|
- |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2075GHz, 1.549GHz, 1.5825GHz | 1.16GHz ~ 1.255GHz, 1.539GHz ~ 1.559GHz, 1.559GHz ~ 1.606GHz | Dome | 3 | 1.8 | - | -1.5dBic, 2.5dBic, 3.5dBic, 4dBic | - | LNA, Filter | M18 | IP69K | - | - | Through Hole | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
HG913P-120ANTPANEL 900MHZ 13DBI 120? |
6 | - |
|
数据表 |
HG | Bag | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 910MHz | 860MHz ~ 960MHz | Panel | 1 | 1.5 | - | 13dBi | 300 W | - | N Type Female | - | - | - | Bracket Mount | 49.000" (124.46cm) | GSM, ISM, WLAN |
|
BOA4357RF ANT 450MHZ WHIP STR N TYPE |
20 | - |
|
数据表 |
BOA | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 450MHz | 430MHz ~ 470MHz | Whip, Straight | 1 | 1.7 | - | 7.1dBi | 250 W | - | N Type Female | - | - | - | Mast Mount | 82.992" (210.80cm) | ISM, LoRa, LPWAN |
|
|
BOA9028RF ANT 915MHZ WHIP STR N TYPE |
8 | - |
|
数据表 |
BOA | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 8.1dBi | 250 W | - | N Type Female | - | - | - | Mast Mount | 67.992" (172.70cm) | ISM, LoRa, LPWAN |
|
33-605000-01-01VERAPHASE 6000 GEODETIC ANTENNA |
3 | - |
|
数据表 |
- | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.542GHz | 1.525GHz ~ 1.559GHz | - | 1 | - | - | - | - | LNA | TNC Female | - | - | - | Screw Mount | - | General Purpose |
|

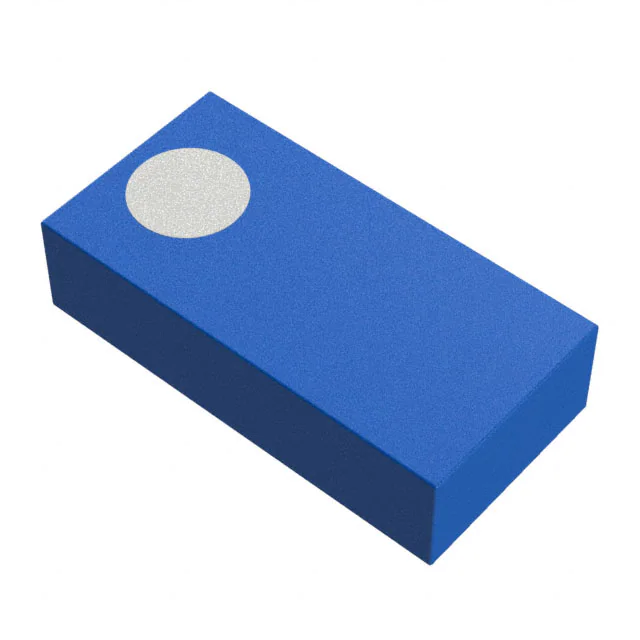

ANT1608LL14R2455ARF ANT 2.45GHZ/5.5GHZ CHIP SLD |
183 | - |
|
数据表 |
1608 | Tape & Reel (TR) | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | - | Chip | 2 | - | - | 3.11dBi, 3.43dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | ISM, Wi-Fi |
|
|
W3228ANT CER IRIDIUM 25X25X4MM PIN |
37 | - |
|
数据表 |
Patch Antenna | Tray | Active | - | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.617GHz ~ 1.625GHz | Ceramic Patch | 1 | - | -15dB | 4dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | General Purpose |
|
YP0009BAEMBEDDED CELLULAR ANTENNA |
50 | - |
|
数据表 |
- | Bag | Not For New Designs | Cellular | Wide Band | 1.1GHz, 1.5GHz, 1.8GHz, 2.16GHz, 2.3GHz, 2.68GHz, 3.3GHz, 5GHz, 6GHz | 1.1GHz ~ 6GHz | PCB Trace | 9 | 2.77, 1.35, 2.42, 1.5, 1.45, 1.38, 1.47, 1.35, 1.08 | - | -0.83dBi, 2.8dBi, 2.88dBi, 2.1dBi, 2.3dBi, 3.22dBi, 1.36dBi, 1.49dBi, 1.13dBi | - | Cable - 193mm | I-PEX MHF4 | - | - | - | Adhesive | 0.037" (0.95mm) | 6G |
|
ANT2525B00DT1516SRF ANT 1.575/1.602GHZ CER PATCH |
37 | - |
|
数据表 |
2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | -26.18dB, -26.412dB | 5dBi, 4.79dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
ANT-2400-RP-2-ARF ANT 2.4GHZ WHIP TILT RP-SMA |
57 | - |
|
数据表 |
- | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.5 | - | 3dBi | 20 W | - | RP-SMA Male | - | - | - | Connector Mount | 4.528" (115.00mm) | ISM |
|
1461860300RF ANT 1.561/1.575GHZ FLAT 300MM |
55 | - |
|
数据表 |
146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 2.4dBi, 3dBi, 3.7dBi | 2 W | Cable - 300mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
